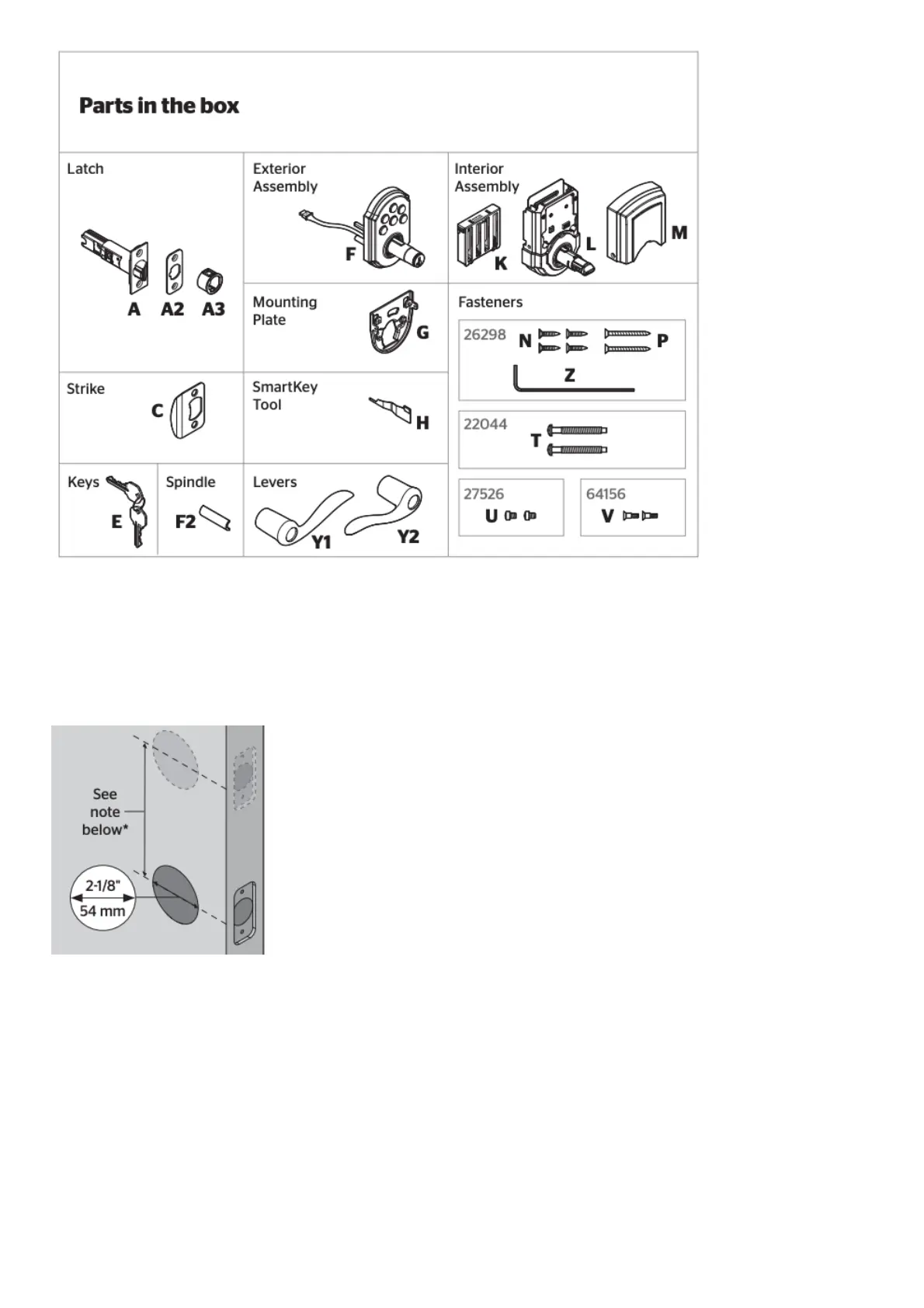

1. Prepare the door and check dimensions
If drilling a new door, use the supplied template and the complete door drilling instructions available at
www.weiserlock.com/doorprep.
A. Measure to confirm that the hole in the door is 2-1/8″ (54 mm).
*If you are installing this lever below an existing lock or you plan to install a lock above this lever,
make sure that the distance between holes is at least 6-1/2″ (165 mm).
B. Measure to confirm that the backset is either 2-3/8″ or 2-3/4″ (60 or 70 mm).
