Gas burner WG20…/1-C Z-LN
5 Installation
83054602 1/2020-01 La
27-96
Installing the gas valve train from the left
To fit the gas valve train to the burner from the left, the burner has to be installed
rotated by 180°. To do this, additional conversion measures are required.

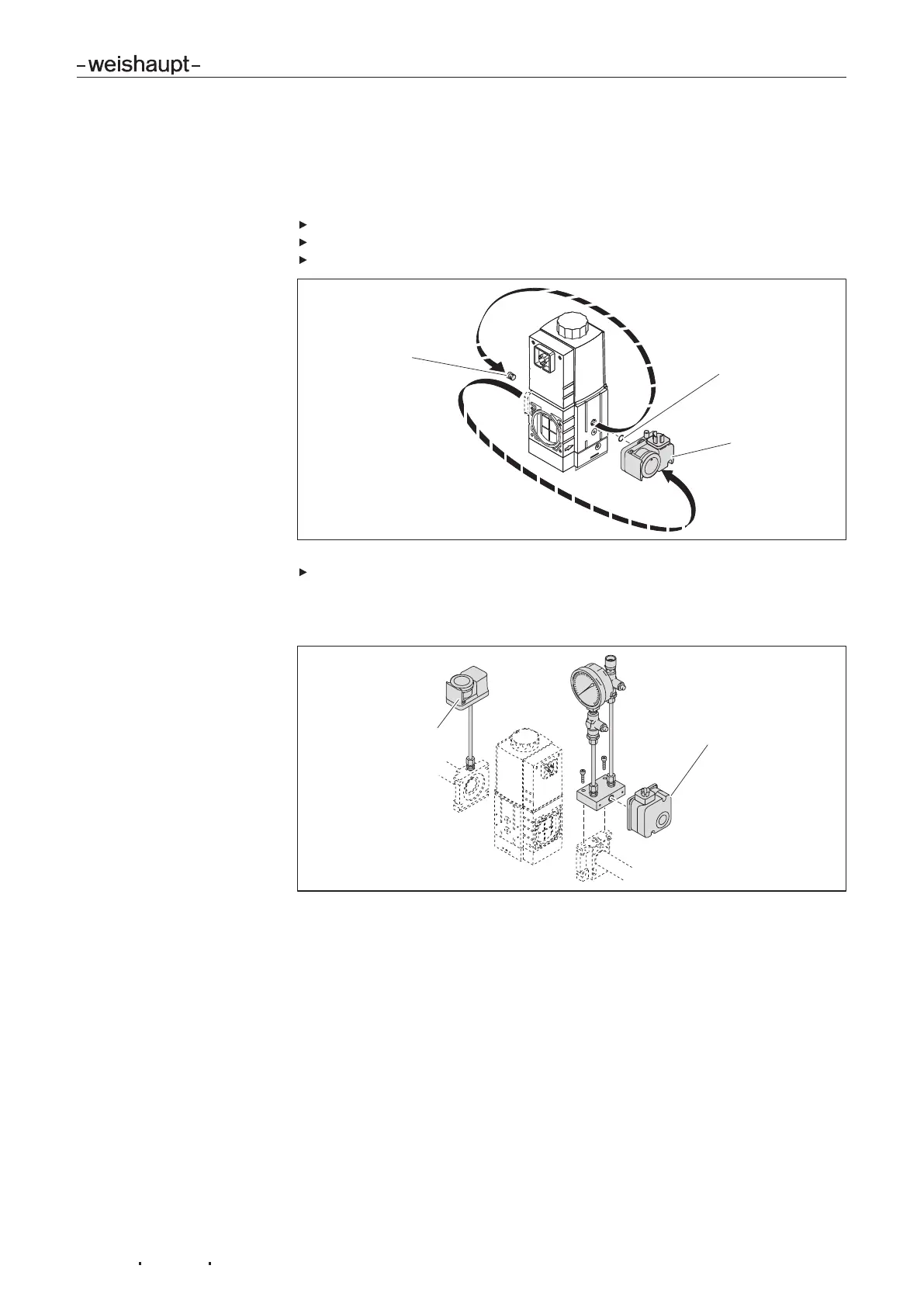

Move the gas pressure switch prior to installing the multifunction assembly:
Remove closing plug 1 and gas pressure switch 3.
Mount gas pressure switch 3 and O ring 2 on the opposite side.
Mount closing plug 1 on the opposite side.
1
2
3
Continue installation in the same way as for "Mount gas valve train from the
right".
Accessories
2
1
1 Low gas pressure switch with mechanical interlock (B34)
2 High gas pressure switch (B33)
