Weishaupt WG20 1-C Z-LN Series - Connecting Measuring Devices

Installation and operating instruction
Gas burner WG20…/1-C Z-LN
7 Commissioning
83054602 1/2020-01 La
32-96

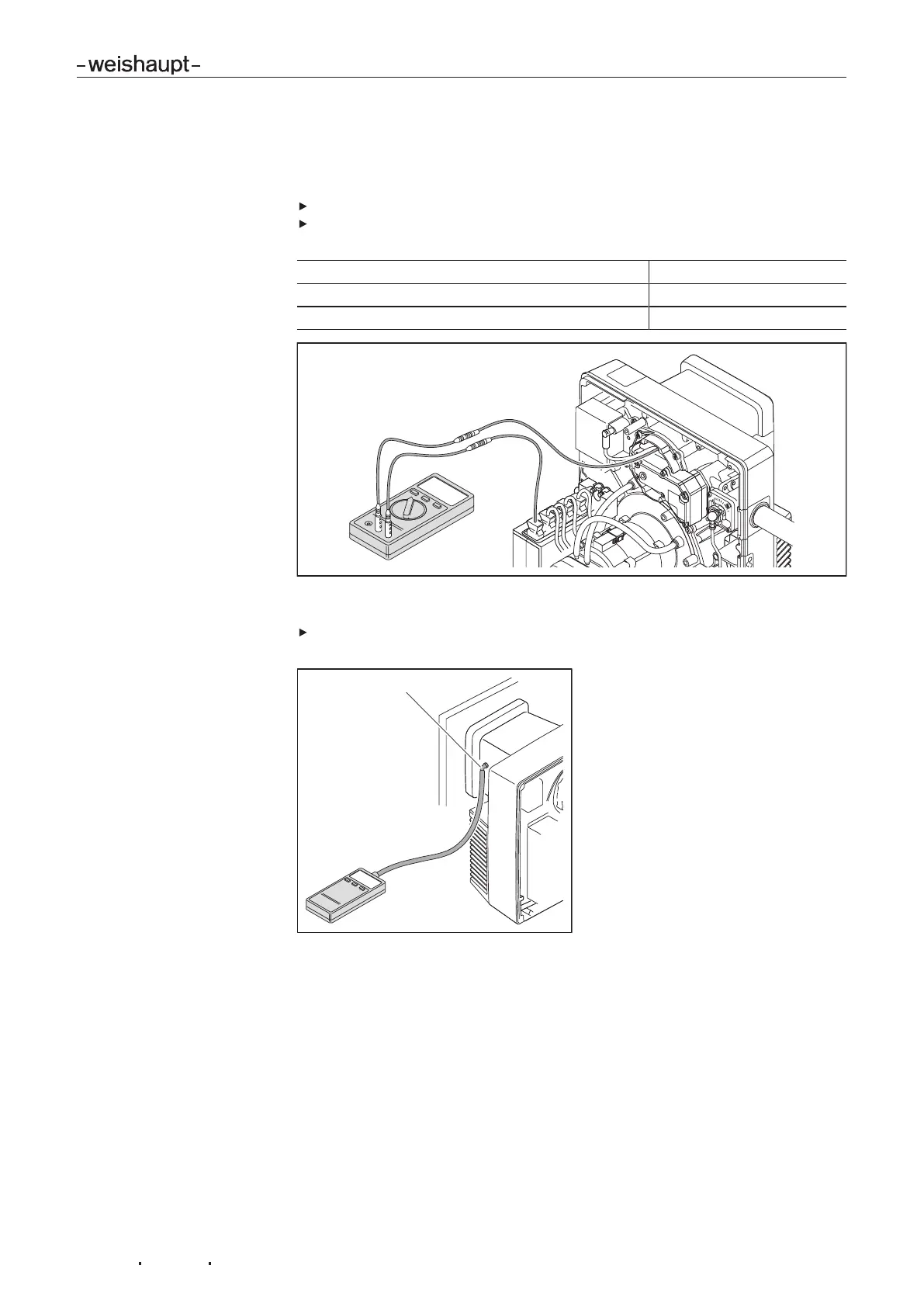

7.1.1 Connect measuring devices
Measuring device for ionisation current
Remove ionisation cable from the plug coupling.
Connect current measuring device in series.
Ionisation current
Extraneous light detection from 0.8 μA
Minimum ionisation current 1.5 μA
Recommended ionisation current 5…20 μA
Pressure measuring device for mixing pressure
Open pressure test point for mixing pressure1 and connect pressure measur-
ing device.
1
