Weishaupt WG20 1-C Z-LN Series User Manual

Installation and operating instruction
Gas burner WG20…/1-C Z-LN
4 Installation
83054602 1/2020-01 La
23-96

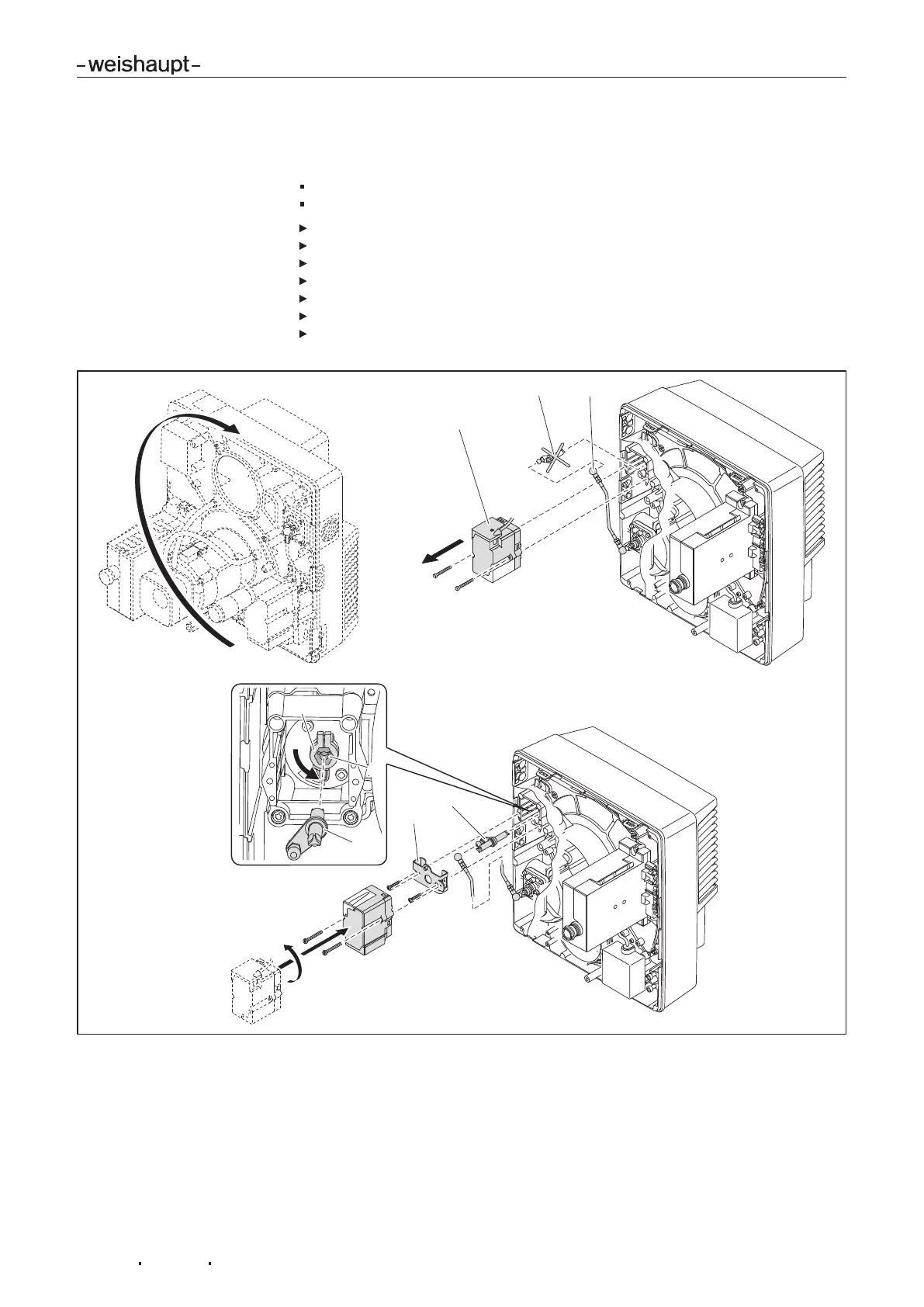

4.2.1 Rotate burner by 180° (optional)
The following are required for the conversion:
actuator adapter with fixing screws,
lever with a longer shaft.
Remove actuator 1.
Disconnect linkage3.
Remove complete lever2.
Fit lever with longer shaft4 to angle drive.
Fit adapter5.
Turn indicator6 to CLOSED position and hold.
Mount actuator rotated by 180° whilst sliding the shaft4 into the star shaped
groove7.
18 0°
18 0°
1
2 3
4
5
4
7
6
