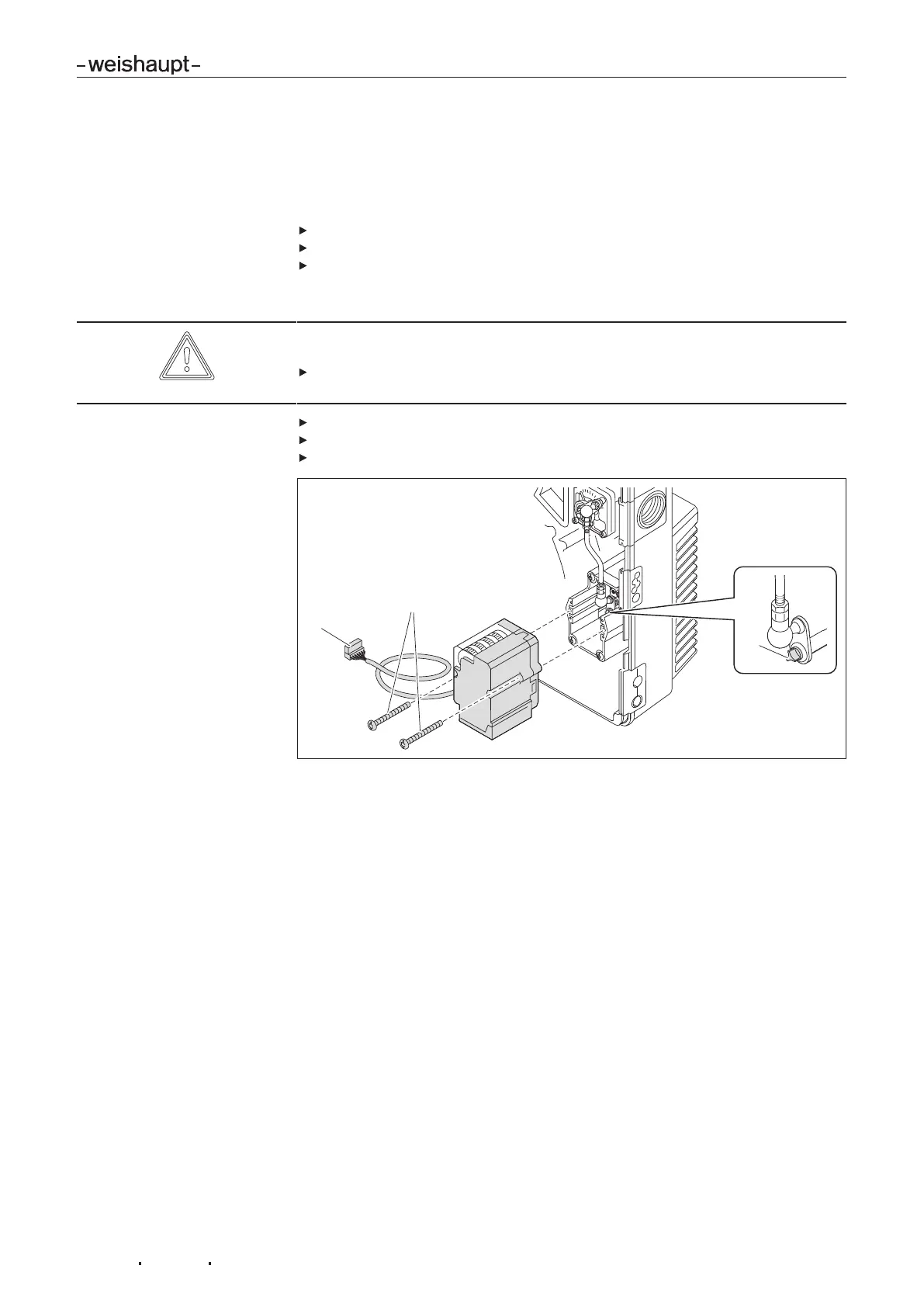

9.9 Removing and refitting air damper actuator
Observe notes on servicing [ch.9.1].
Removing
Remove actuator plug 1 from combustion manager.
Remove screws2.
Remove actuator.
Refitting
CAUTION
Damage to the actuator caused by turning the hub
Actuator could be damaged.
Do not turn hub manually or with tool.
Place actuator into the star shaped groove 3.
Secure actuator.
Plug in actuator plug1 at the combustion manager.
1
2
3
