Installation and operating instruction

Gas burner WG20…/1-C Z-LN

7 Commissioning

83054602 1/2020-01 La

39-96

Full load

[kW]

Setting pressure

into gas butterfly

valve

[mbar]

Min. connection pressure into isolating

valve

[mbar] (low pressure supply)

Nominal diameter valve train ¾" 1" 1"

Multifunction assembly W-MF SE 507 507 512

Liquid Petroleum Gas: Hi = 25.89 kWh/m

, d = 1.555

The selection is calculated for Propane, it can however, also be used

for Butane.

80 9.3 13 – –

90 9.3 13 – –

100 9.3 13 – –

110 9.3 14 – –

120 9.3 14 – –

130 9.6 14 – –

140 9.9 14 – –

150 10.2 15 – –

160 10.4 15 – –

170 10.7 16 – –

180 11.0 17 – –

190 11.9 18 – –

200 12.8 19 – –

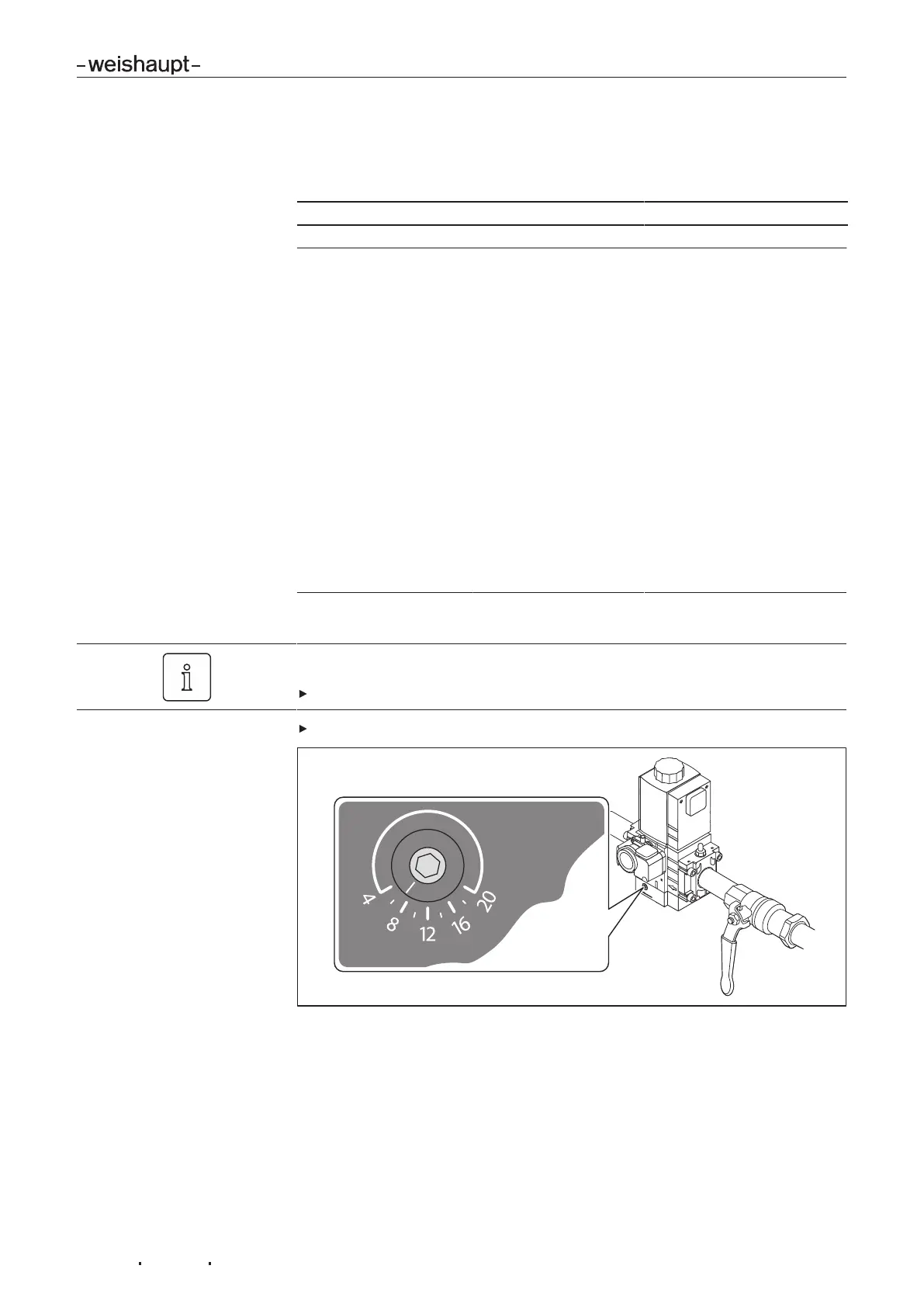

Preset setting pressure

Only in conjunction with W-MF and gas connection pressure > 150mbar

The pre-pressure must be set to approx. 90 mbar.

Set FRS pressure regulator, see additional sheet (print No. 835109xx).

Preset setting pressure determined at multifunction assembly.
