10
One pipe system Two pipe system
Where the oil tank installation is at a higher elevation
than the burner, please note:
Some local Codes of Practise may stipulate a shut off
valve to stop the gravity flow of oil into the supply line
during burner shut down.
-weishaupt- recommend the use of a solenoid valve in
the supply line. The solenoid valve must be slow closing
so as to relieve any oil pressure back to the oil tank.
Control of the solenoid valve see Ch. 5.5
Ring main operation
When operating several burners, or with larger distances, -
weishaupt- recommends the oil is supplied via a pumped
ring main. For installation and operational drawings see
technical worksheets.
Oil supply pump
If the permissible suction vacuum is exceeded, an oil
supply pump must be used. Note:
Maximum supply pressure of 2 bar to the oil pump on
the burner.
Operation of the oil supply pump is generally in
conjunction with the heat demand of the burner.
Pipeline lengths dependent on:
Elevation difference (H) between pump and tank
Oil throughput / pump type
Pipe line diameter (DN)
The pressure losses of additional fittings are not included
in the following selection table showing pipeline diameters.
Oil pump on burner
Solenoid valve (slow closing)
or shut off valve to stop siphonic flow
Oil tank

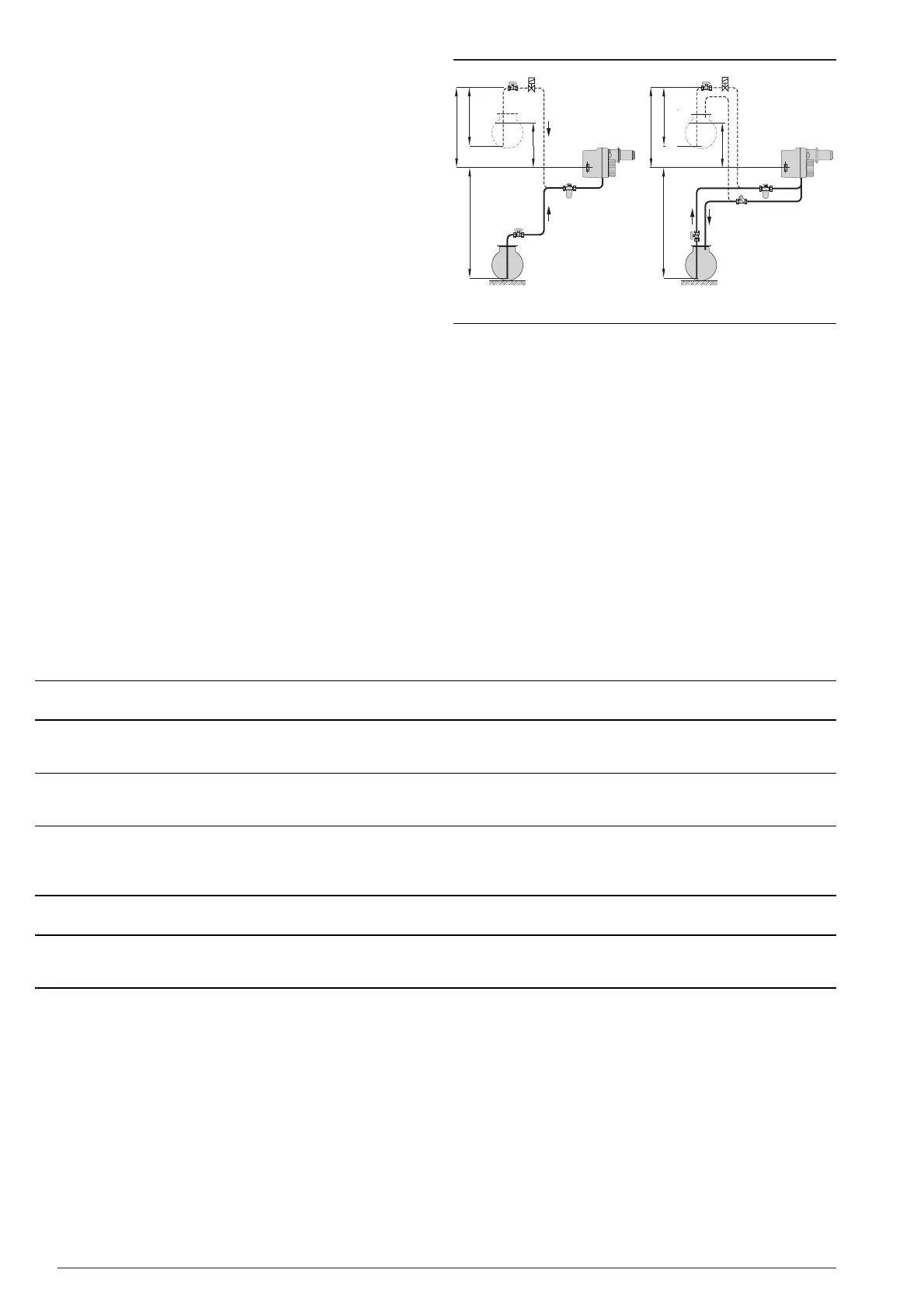

Basic diagram of oil supply (typical only)
max. 20 m
+H
–H
max. 4,6 m
max. 20 m
–H
max. 3,5 m
max. 3,5 m
max. 4,6 m
+H
One pipe system
Oil throughput DN H [m]
[kg/h] [mm] 4·0 3·5 3·0 2·5 2·0 1·5 1·0 0·5 0 -0·5 -1·0 -1·5 -2·0 -2·5 - 3·0 -3·5
Up to 2·5 4 93 90 87 83 77 72 66 60 55 49 43 38 32 26 21 14
6 100 100 100 100 100 100 100 100 100 100 100 100 100 100 94 85
8 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100
2·5 to 6·3 4 44 41 39 36 34 31 29 26 24 21 19 16 13 11 8 6
6 100 100 100 100 100 100 100 100 100 100 93 84 71 59 33 20
8 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100
Two pipe system
Pump DN H [m]
[mm] 4·0 3·5 3·0 2·5 2·0 1·5 1·0 0·5 0 -0·5 -1·0 -1·5 -2·0 -2·5 -3·0 -3 ·5
AT2 45 C 626242322201918161513119753–
8 887773686460555147423832272115 9
10 100 100 100 100 100 100 100 100 100 100 93 82 67 53 38 24
max. 4·6 m
max. 3·5 m
max. 3·5 m
max. 4·6 m
