32

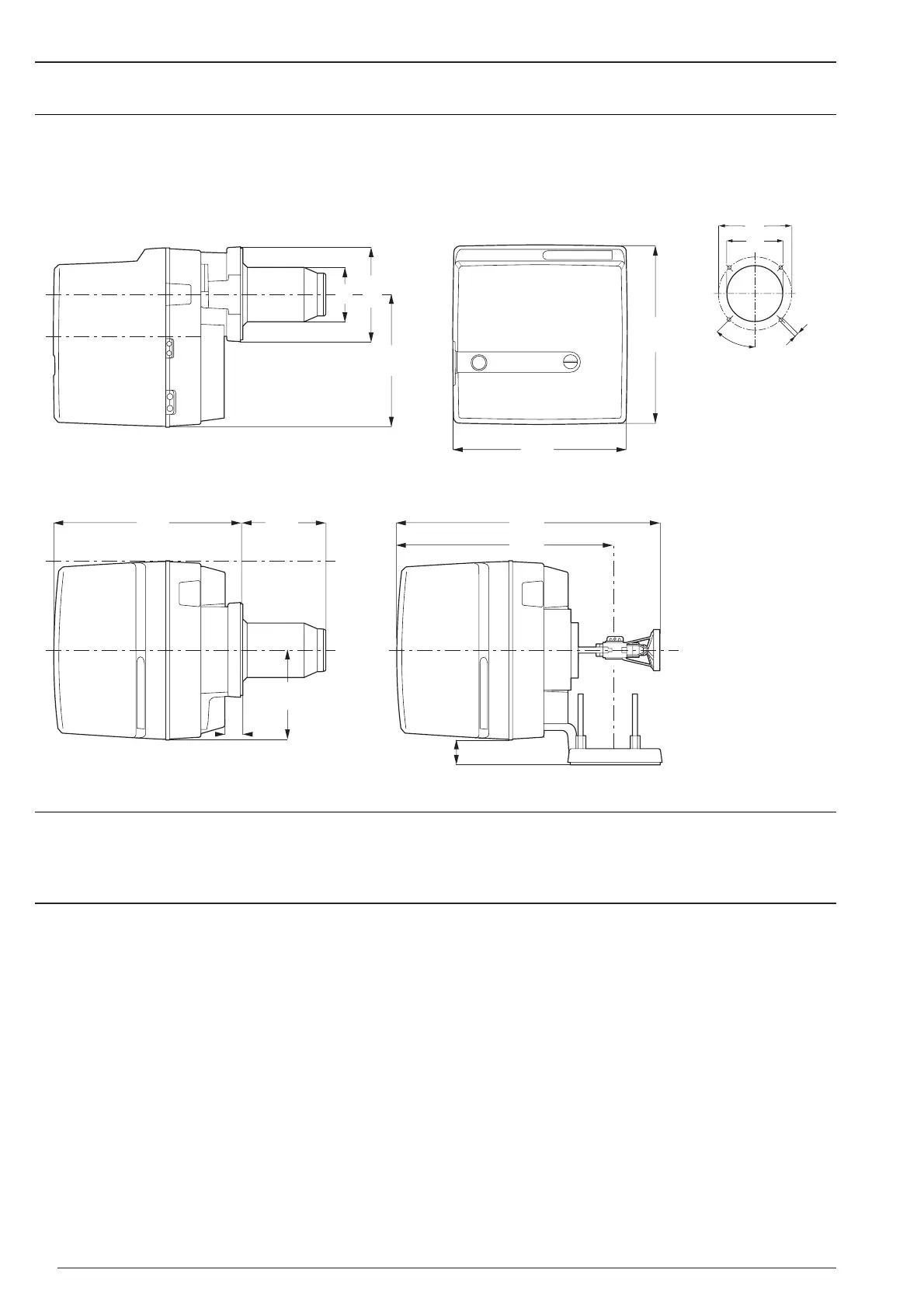

8.6 Dimensions
8.7 Weight
–weishaupt–
WL10/2-C, vers. Z
Burner ______________________________approx. 14.0 kg
Fixing dimensions
to EN 226
Burner Dims in mm
type l
1 l2 l3 l4 l5 l6 b1 b2 h1 h2 h3 d1 d2 d3 d4
WL10/2-C, vers. Z 140 345 27 476 398 51 330 165 353 270 165 99 M8 150- 170 110
l
1
l
3
l2 l4
l
5
l6
h1
h2
h3
b1
b
2
d1
d2
d3
d4
