Weishaupt WL10/2-C Z User Manual

31
Temperature Humidity Requirements for
EMC Low voltage guideline
In operation: max. 80% rel. humidity Guideline 89/336/EC Guideline 72/23/EC
-15°C* to +40°C no dew-point EN 50081-1 EN 60335
Transport / storage: EN 50082-1
-20 to +70°C
* With the relevant suitable fuel oil and / or the relevant layout of oil hydraulics.
8.5 Permissible ambient conditions
8 Technical data
8.1 Burner equipment
8.2 Capacity Graphs
Burner Combustion Motor Servomotor Fan wheel Ignition unit Flame Oil pump
type manager sensor
WL10/2-C; W-FM10 ECK 03/F-2 STD 4.5 146x40 W-ZG01 QRB1B AT2 45C
vers. Z 230V, 50Hz BO. 36/6-4NL
2870 r.p.m. 24V; 3·5W
0·13 kW; 0·95 A
Cap. 4 µF
Burner type WL10/2-C, vers. Z
Combustion head W10/2-C
Combustion rating 35 to 70 kW
2·9 to 5·9 kg/h
8.3 Permissible fuels
Fuel oil DIN 51603-1
Austria: Fuel oil EL to ÖNORM-C1109
Switzerland: Standard oil, Euro-quality or preferred
Öko fuel oil, CH-quality (SN 181 160-2)
8.4 Electrical data
Mains voltage _______________________________ 230 V
Mains frequency _____________________________ 50 Hz
Consumption- Start ________________________ 0·33 kW
- Operation _____________________0·2 kW
Current _____________________________________ 1·1 A
External fusing ___________________________ 16 A slow
Internal fusing W-FM10 ____________________6·3 A slow
Combustion heat rating
3 3,5 4 4,5 5 5,5 6
30 35
-0,6
-0,4
-0,2
0
0,2
0,4
0,6
0,8
1,0
40 45 50 55 60 65 70 75kW
kg/h
Chamber pressure [mbar]

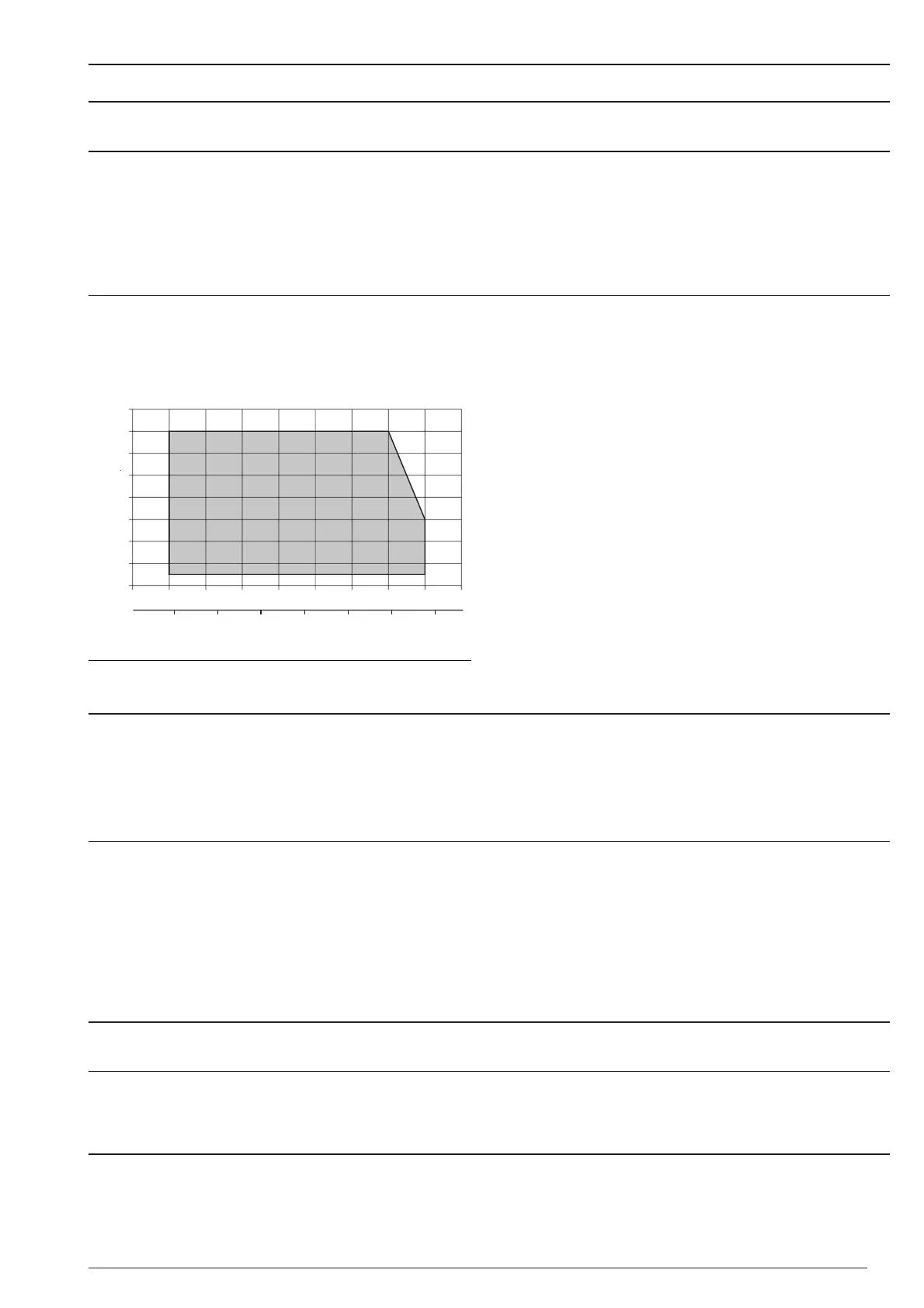

Capacity graph to EN 267
All ratings data given relate to
an air temperature of 20° C
and an installation altitude of
500 m.
1·0
0·8
0·6
0·4
0·2
3·5
4·5
5·5
-0·2
-0·4
-0·6
