Battery is empty.
Fit new battery. The battery compartment is on the rear of
the WRS-BE. Battery type CR123A 3V.
When replacing batteries the date and time have to be
reset. (➩ Ch. 6.4)
8.2 Additional displays

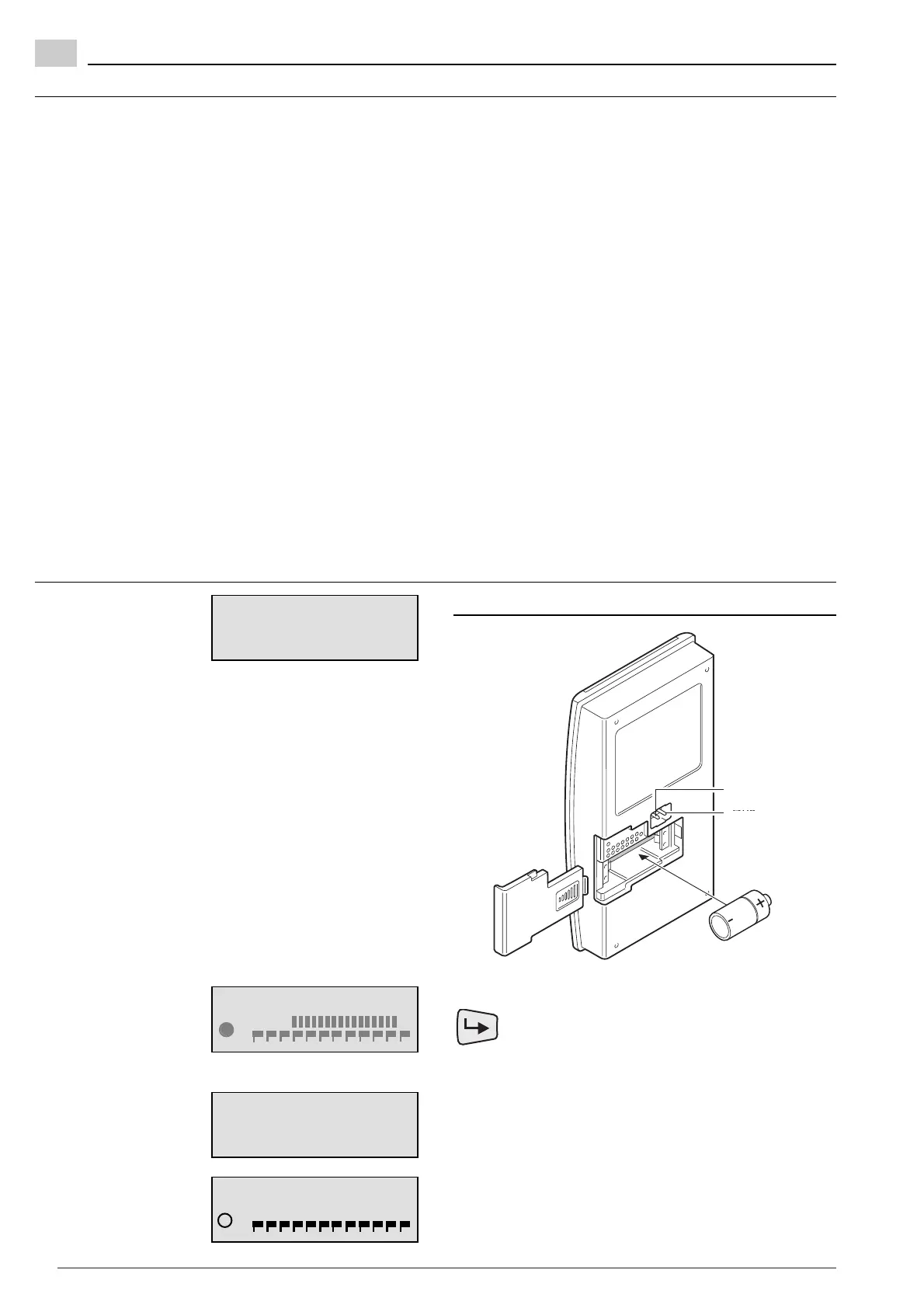

Changing the battery
M
eBus
Change
battery
Data Error
occurred
An error occurred during reading/writing data.
Repeat reading/writing data (see Ch. 6.3)
Economy mode
Heating is switched off if no heat demand is present
(see Ch. 6.10)
Display illegible,
background too dark
Adjusting the contrast
Keep button pressed.
Using the dial knob adjust the contrast.
Program1 15:42
1
Economy 15:41
1
M
LPB
Display
CalorifierSenTop
1)
*
CalorifierSenBo
1)
Cause
➩ Sensor short circuit or open circuit
after sensor recognition by
parameter 215 to sensor B10.
➩ Parameter 210 “Flue gas sensor”
set to terminal B10/B7.
➩ Sensor short circuit or open circuit
after sensor recognition by
parameter 215 to “Sensor B10
+B11”
➩ Parameter 210 “Flue gas sensor”
set to “Terminal B9/B7”.
Rectification
➩ Connect calorifier sensor B10.
➩ Call up Top calorifiers in the Info level.
If “❏❏❏“ is displayed, the sensor has a short
circuit. If the display shows “_ _ _”, the sensor is
open circuit. The heating circuits continue to
operate.
➩ Connect sensor to its plug slot 11/12.
➩ Set parameter 210 to “none” or to “terminal
B9/B7”.
➩ Connect calorifier sensor B11.
➩ Call up the Bottom calorifiers in the Info level.
If “❏❏❏“ is displayed, the sensor has a
short circuit. If the display shows “_ _ _”, the
sensor is open circuit. The heating circuits
continue to operate, the sensor B10 is used
as a control value, replace sensor.
➩ Connect sensor to its plug slot 10/12.
➩ Set parameter 210 to “none”.
*The boiler sensor is used as a control value, replace sensor.
1)
only with WRS-CPU-B2/E
