7 Preparing the appliance for use
Back to contents >
Merrychef conneX Installation and User Manual
40
_______________________________________________________________________________________________________________________________

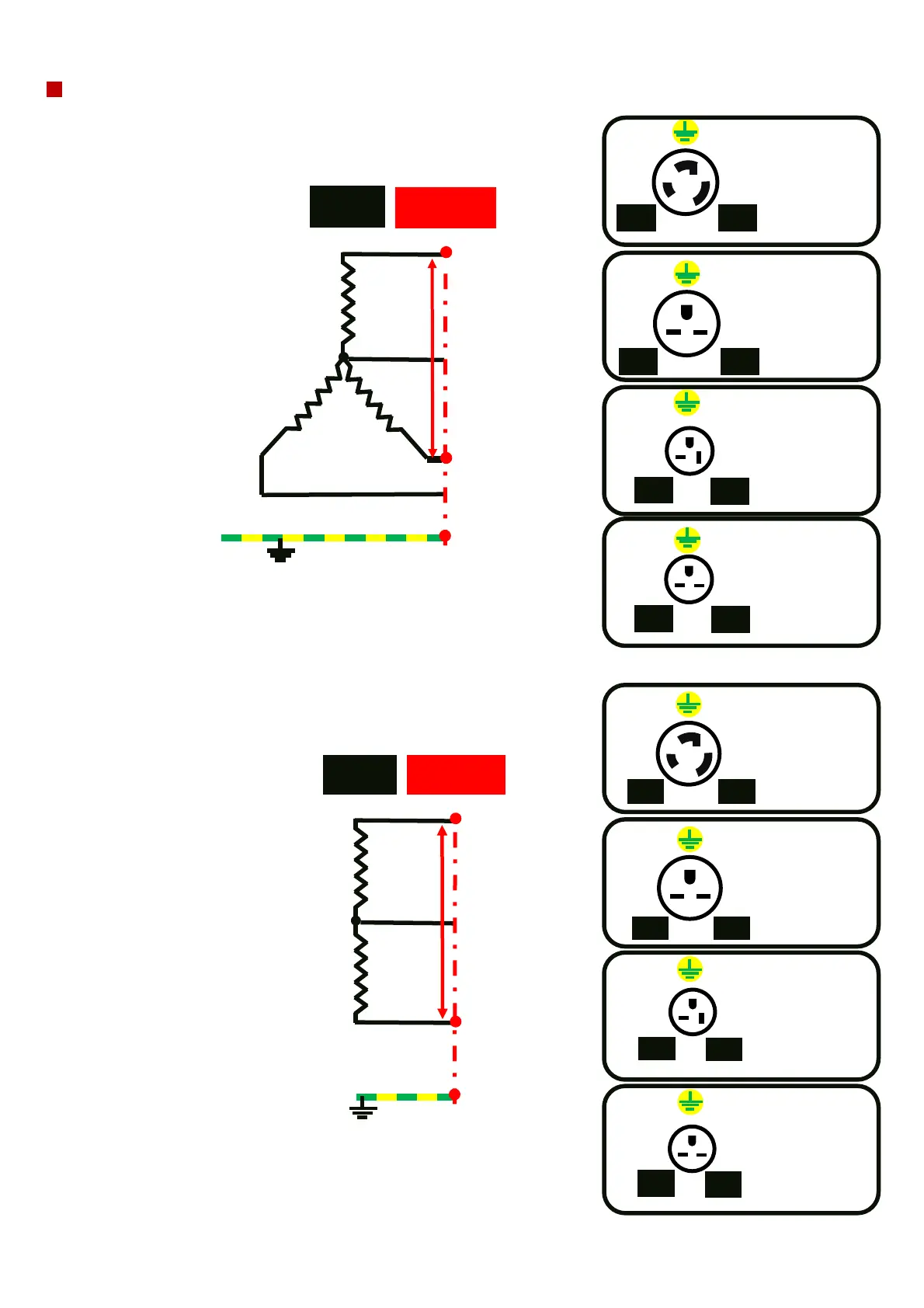

US and Canada
Earth connection
is essential
L3
L2
N
Earth (GND)
Electrical
Supply
L1 & L2 From 3
Phase Supply
~208V
L1
REAR VIEW OF PLUG
Plug: 2 Pole 30A
NEMA 6-30P
L1 + L2 + GND
L1
L2
L1
L2
REAR VIEW OF PLUG
Plug: 2 Pole 30A
NEMA L6-30P
L1 + L2 + GND
REAR VIEW OF PLUG
Plug: 2 Pole 20A
NEMA 6-20P
L1 + L2 + GND
L1
L2
REAR VIEW OF PLUG
Plug: 2 Pole 15A
NEMA 6-15P
L1 + L2 + GND
L1
L2
Earth connection
is essential
L2
N
Earth (GND)
Electrical
Supply
L1 & L2 Split
Phase Supply
~240V
L1
REAR VIEW OF PLUG
Plug: 2 Pole 30A
NEMA 6-30P
L1 + L2 + GND
L1
L2
L1
L2
REAR VIEW OF PLUG
Plug: 2 Pole 30A
NEMA L6-30P
L1 + L2 + GND
REAR VIEW OF PLUG
Plug: 2 Pole 20A
NEMA 6-20P
L1 + L2 + GND
L1
L2
REAR VIEW OF PLUG
Plug: 2 Pole 15A
NEMA 6-15P
L1 + L2 + GND
L1
L2
