2 Design and function
Purpose of this chapter
This chapter describes the design and construction of the microwave combination oven and explains its functions.
2.1 Design and function of the microwave combination oven

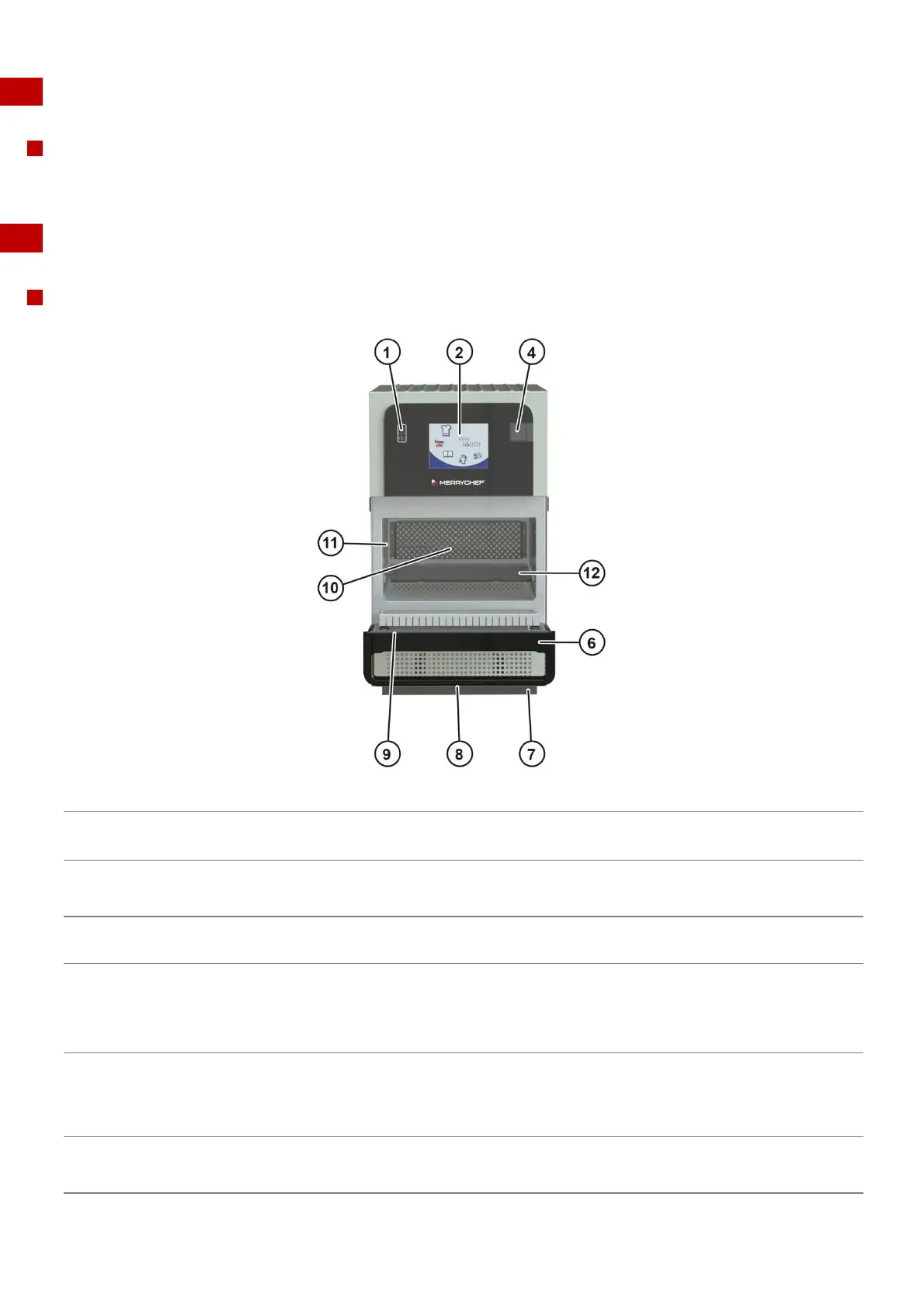

Parts and their function
Item
Name
Function
1
ON/OFF appliance switch
Used to turn the microwave combination oven on and off.
Turning this switch off does not isolate the appliance from the electricity supply.
2
easyToUCH® screen
control panel
When the appliance is switched on the easyToUCH® screen illuminates the user
interface.
See 'Cooking procedures' on page 38 for details.
3
Nameplate
(no picture)
Located on the rear panel of the appliance, the nameplate states the serial number,
model type and electrical specifications.
4
USB port
A USB socket located under the cover allows updates to programs stored on the
appliance.
See USB MenuConnect® Operating Instructions.
See 'Cooking procedures' on page 38 of this manual, for details of updating cooking
profiles.
5
Air outlets
(no picture)
Air used to cool internal components and steam from the cavity escape through the
air outlet vents located on the rear of the appliance. The air outlets must be kept free
from obstruction and they will not allow microwave energy to escape into the
environment.
6
Appliance door
The door is a precision-made energy barrier with three microwave safety interlocks.
Always keep it clean and do not use it to support heavy objects.
See 'Cleaning procedures' on page 67.
