5 Setting up the appliance
Back to contents >
Merrychef eikon
®
e2s Installation and User Manual
24
_______________________________________________________________________________________________________________________________
Minimum space required

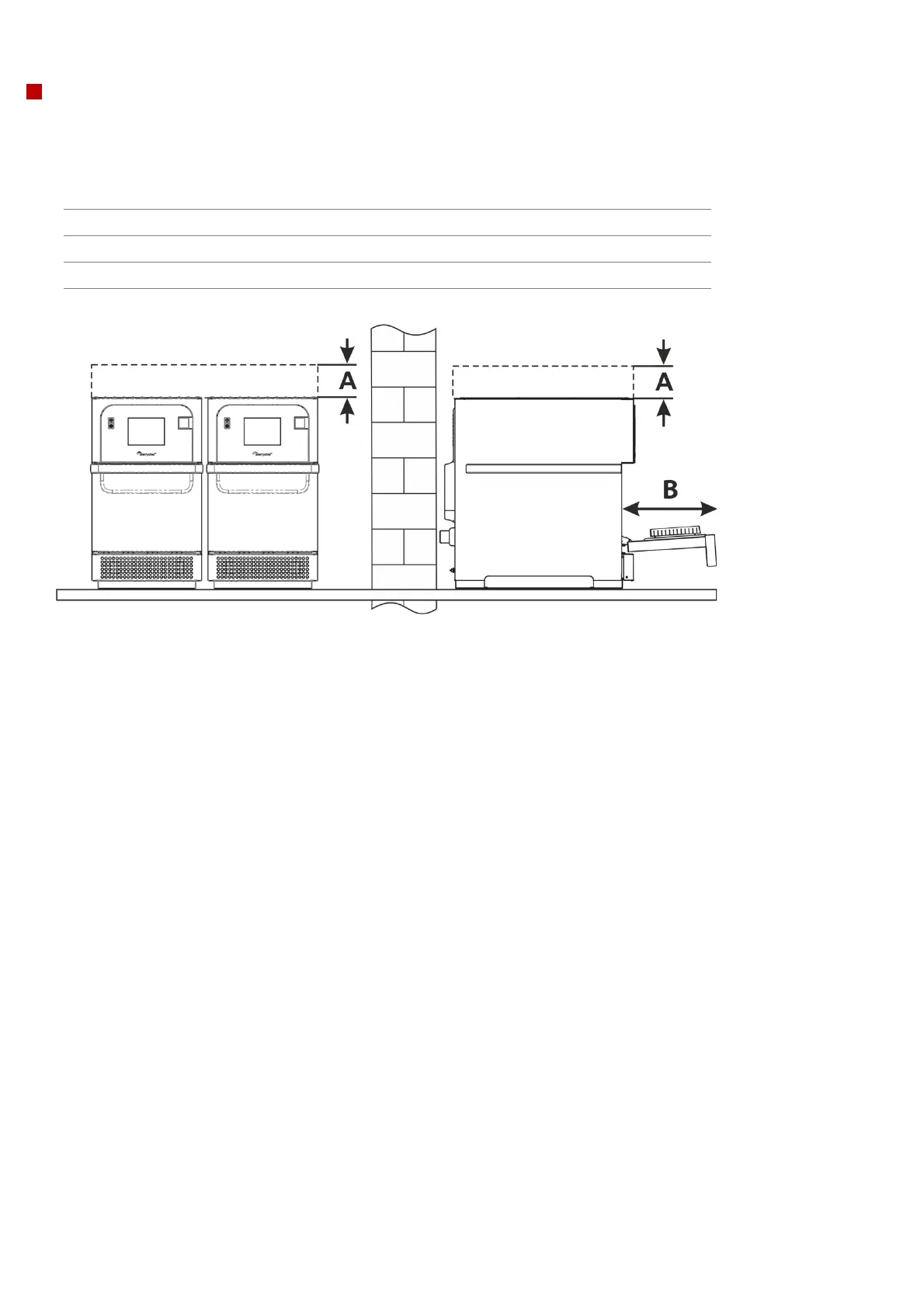

The following diagram and table show the space required for the appliance for different installation and operating situations.
They also show the minimum horizontal distances from adjacent walls and surfaces. The safety clearance on the top must
always be complied with.
Meaning
Space required
A
Safety clearance from the top
[mm]
50
[in]
2
B
Depth requirement, appliance door open at 90°
[mm]
310
[in]
12.2
Safety clearance on left-/right-hand side
[mm]
0
[in]
0
