SureTemp® Plus Service Manual 7
2.2 Model Features
Features of the SureTemp
®
Plus Thermometer models (690 and 692) are listed below.
Table 2-1: Feature differences between Models 690 and 692
Feature Model 690 Model 692
Probe Cover Storage
X X
F/C Conversion
X X
Last Temperature Recall
X X
Monitor Mode
X X
Detachable Probe
X X
Oral/Axillary/Rectal Modes on Each
Thermometer
X X
Color-Coded Removable Probe Well
X X
Wall-Holder
Optional Standard
Pulse Timer
X
Backlight
X
Security (Electronic)
X
On-Screen Labeling for Instrument
Identification
X
2.3 Operating Features
2.3.1 Instrument Reset
To perform a reset:
1. Remove the batteries from the instrument to reset the internal microprocessor electronics.
Follow the battery removal instructions in “Replacing the Batteries” on page 16.
2. Remove the probe and the probe well from the instrument. Then, unplug the probe
connector by depressing the locking tab and pulling on the connector body. DO NOT pull
on the cord.
3. While watching the display, install the batteries per the instructions in “Replacing the
Batteries” on page 16 and observe the Power-On Self Test described below.
2.3.2 Power-On Self Test (POST)
The self-test will check the internal microprocessor,
instrument electronics, and display for correct operation.
The instrument performs the self-test series following all
power-on or reset cycles. During the self test sequence the
thermometer displays all LCD segments for 2 seconds.
Concurrently, the thermometer plays the power-on audible
notification and performs necessary self-testing.

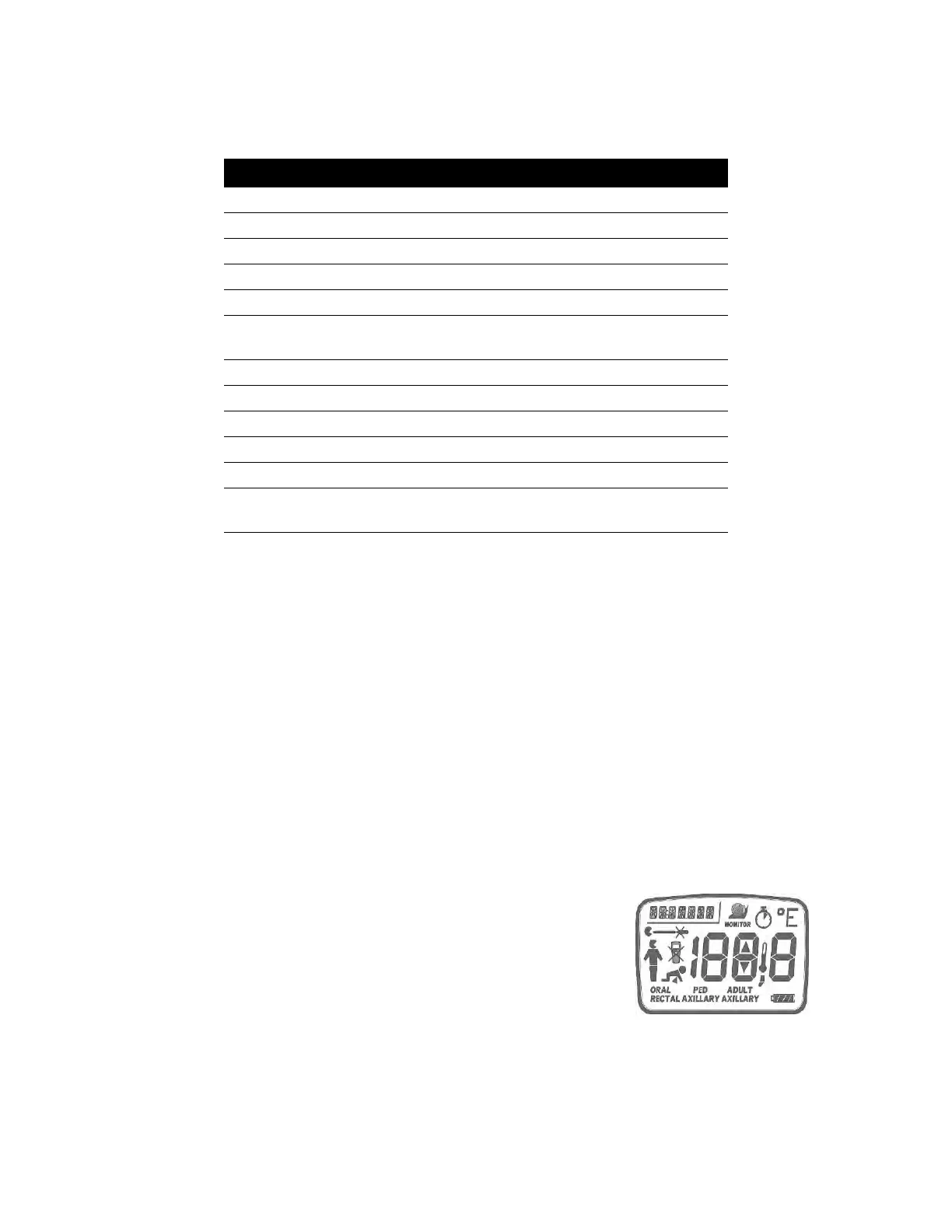

Figure 2: Model 690 and 692
Thermometer Displays
