Wen 3630

9

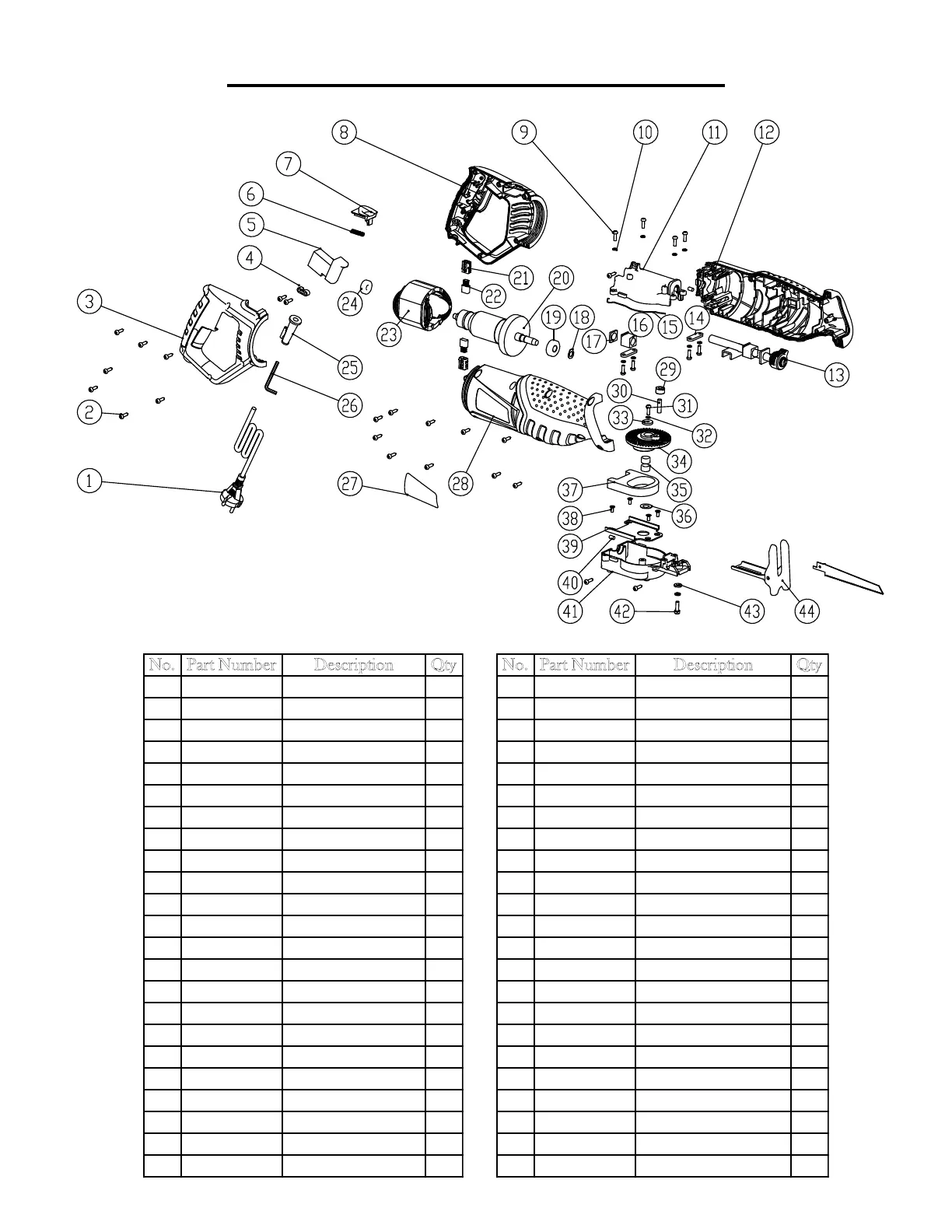

EXPLODED VIEW AND PARTS LIST
No. Part Number Description Qty
24
3630-024 608-2RS Bearing 1
25
3630-025 Cord Sleeve 1
26
3630-026 Hex Wrench 1
27
3630-027 Label 2
28
3630-028 Right Housing 1
29
3630-029 Shaft sleeve 1
30
3630-030 Gear pin 1
31
3630-031 Screw 1
32
3630-032
Spring washer
Φ
5
2
33
3630-033 Flat washer 1
34
3630-034 Big gear 1
35
3630-035 Bearing 2
36
3630-036 Gear washer 1
37
3630-037 Balance block 1
38
3630-038 Screw 4
39
3630-039 Washer 1
40
3630-040 Rubber pin 1
41
3630-041 Gear box bottom cover 1
42
3630-042 Screw 1
43
3630-043 Front stand washer 1
44
3630-044 Front stand 1
NP
3630-045 Metal Cutting Blade 1
NP
3630-046 Wood Cutting Blade 1
No. Part Number Description Qty
1
3630-001 Power Cord 1
2
3630-002 Screw 22
3
3630-003 Right Handle 1
4
3630-004 Cord Clamp 1
5
3630-005 Switch 1
6
3630-006 Spring 1
7
3630-007 Push Button 1
8
3630-008 Left Handle 1
9
3630-009 Screw 8
10
3630-010 Washer 8
11
3630-011 Gear Box Top Panel 1
12
3630-012 Left Housing 1
13
3630-013 Plunger Subassembly 1
14
3630-014 Slide Clamp 2
15
3630-015 Belt 2
16
3630-016 Slide Block 1
17
3630-017 Slide Block Sleeve 1
18
3630-018 Washer 1
19
3630-019 6000-2RS Bearing 1
20
3630-020 Rotor 1
21
3630-021 Brush Holder 2
22
3630-022 Carbon Brush 2
23
3630-023 Stator 1
