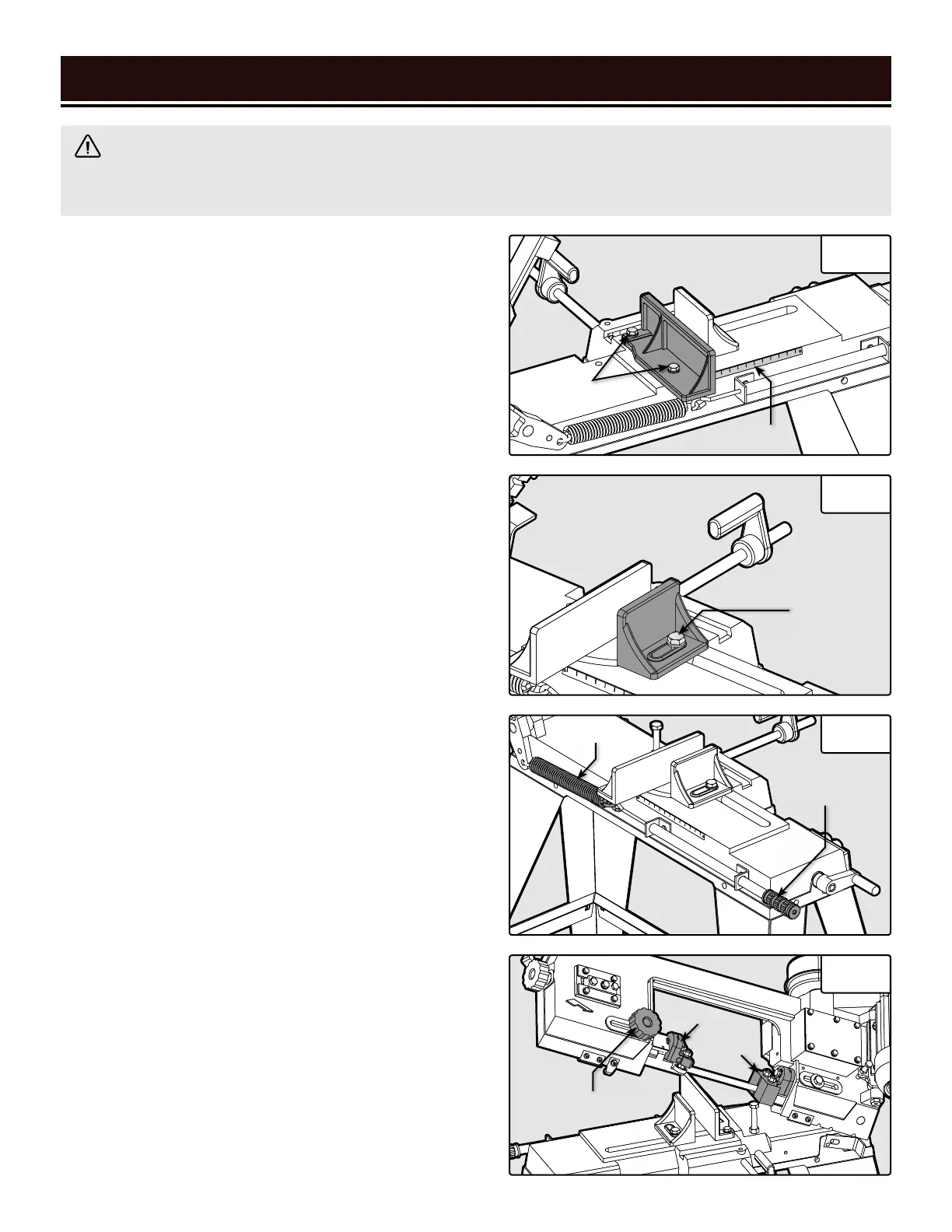

ADJUSTING THE VISE
1. Loosen the two hex bolts on the large jaw. Use the scale
as a guide to set your angle. Retighten the hex bolts. See
Fig. 12.
2. Loosen the hex bolt on the small jaw. Match the angle of
the workpiece. Retighten the hex bolt. See Fig. 13.
3. Use the handle (Fig. 14) to open or close the jaws. Tight-
en the vise against the workpiece.
ADJUSTING THE BLADE GUIDE
Loosen the knob and slide the blade guide as close to the
workpiece as possible, then re-tighten the knob. See Fig.
15.
ADJUSTING THE FEED RATE
The feed rate has been set at the factory and should not
need any adjustment. If adjustment is necessary follow the
steps below.
1. The feed rate is controlled by the spring and handle. See
Fig. 14
• Twist the handle clockwise to add tension to the spring
and decrease the feed rate.
• Twist the handle counterclockwise to remove the ten-
sion from the spring and increase the feed rate.
ASSEMBLY & ADJUSTMENTS
13
WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Read
through and become familiarized with the following procedures of handling and adjusting your tool. Failure to
follow the safety instructions may result in serious personal injury.
Fig. 12
Fig. 13
Fig. 14
Hex
Bolts
Scale
Hex Bolt
Handle
Spring
Fig. 15
Knob
Blade
Guides
