Wen 5613K User Manual

31

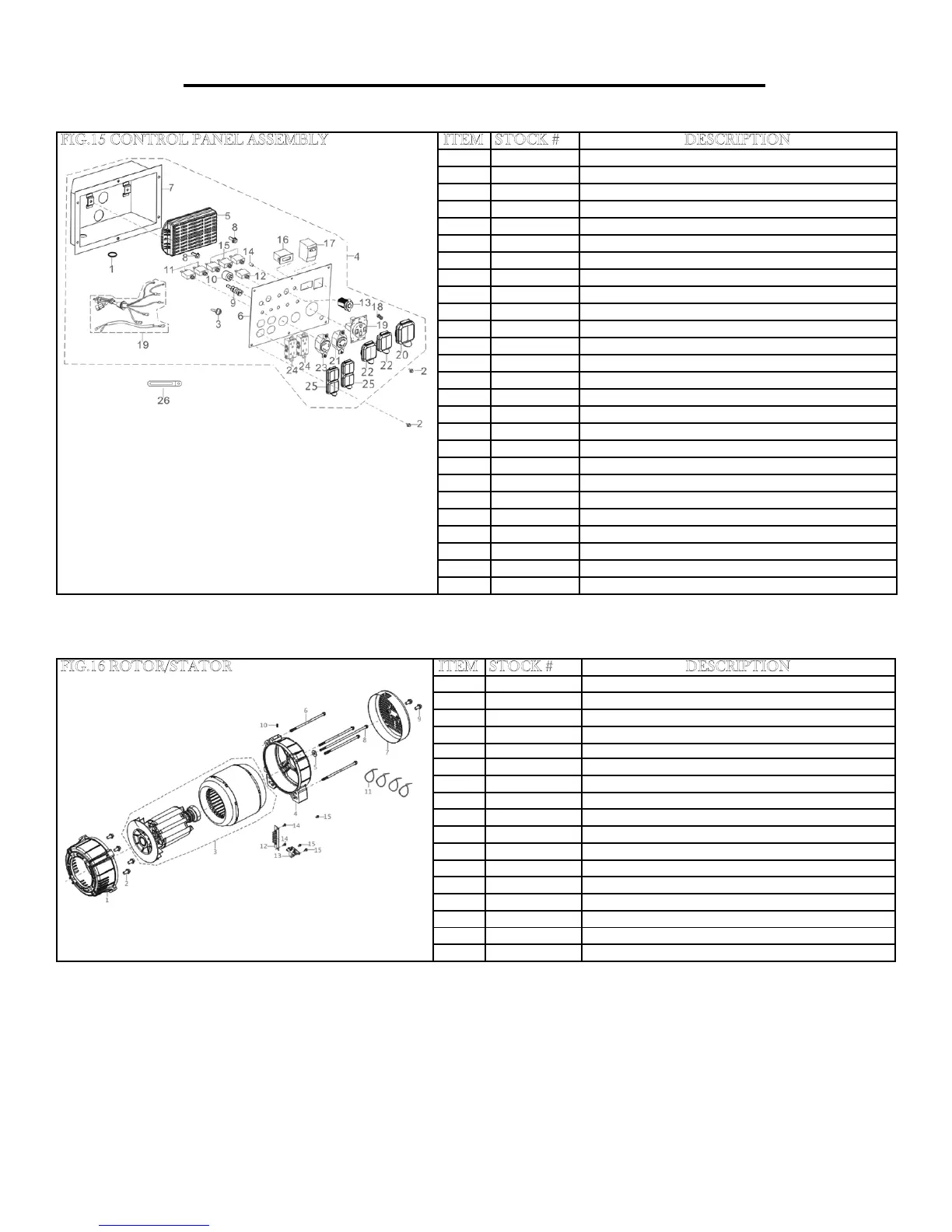

EXPLODED VIEW AND PARTS LIST
ITEM STOCK # DESCRIPTION
15-1 5613K-1501 BLOCK
15-2 5613K-1502 BOLT
15-3 5613K-1503 KEY, SHUTOFF SWITCH
15-4 5613K-1504 CONTROL PANEL ASSY
15-5 5613K-1505 REGULATOR
15-6 5613K-1506 CONTROL PANEL
15-7 5613K-1507 HOUSING, CONTROL PANEL
15-8 5613K-1508 BOLT
15-9 5613K-1509 LOCK ASSY, CHOKE
15-10 5613K-1510 SWTICHES ASSY
15-11 5613K-1511 OVERCURRENT PROTECTION
15-12 5613K-1512 OVERCURRENT PROTECTION
15-13 5613K-1513 DC SOCKET
15-14 5613K-1514 OIL INDICATOR
15-15 5613K-1515 OVERCURRENT PROTECTION
15-16 5613K-1516 TIMER
15-17 5613K-1517 DOUBLE-POLE BREAKER
15-18 5613K-1518 GROUND TERMINAL
15-19 5613K-1519 SOCKET ASSY
15-20 5613K-1520 WATER PROOF COVER
15-21 5613K-1521 SOCKET ASSY
15-22 5613K-1522 WATER PROOF COVER
15-23 5613K-1523 SOCKET ASSY
15-24 5613K-1524 SOCKET ASSY
15-25 5613K-1525 WATER PROOF COVER
15-26 5613K-1526 CLIP
FIG.15 CONTROL PANEL ASSEMBLY
ITEM STOCK # DESCRIPTION
16-1
5613K-1601 FRONT OVER, MOTOR
16-2
5613K-1602 BOLT
16-3
5613K-1603 MOTOR
5613K-1603-1 STATOR
5613K-1603-2 ROTOR
16-4
5613K-1604 SUPPORT, MOTOR
16-5
5613K-1605 WASHER
16-6
5613K-1606 BOLT, ROTATOR
16-7
5613K-1607 TAIL COVER, MOTOR
16-8
5613K-1608 BOLT, ROTATOR
16-9
5613K-1609 BOLT
16-10
5613K-1610 SCREW
16-11
5613K-1611 BAND
16-12
5613K-1612 WIRE CONNECTION
16-13
5613K-1613 CARBON BRUSH
16-14
5613K-1614 BOLT
16-15
5613K-1615 BOLT
FIG.16 ROTOR/STATOR
