ASSEMBLY
ATTACH HANDLES

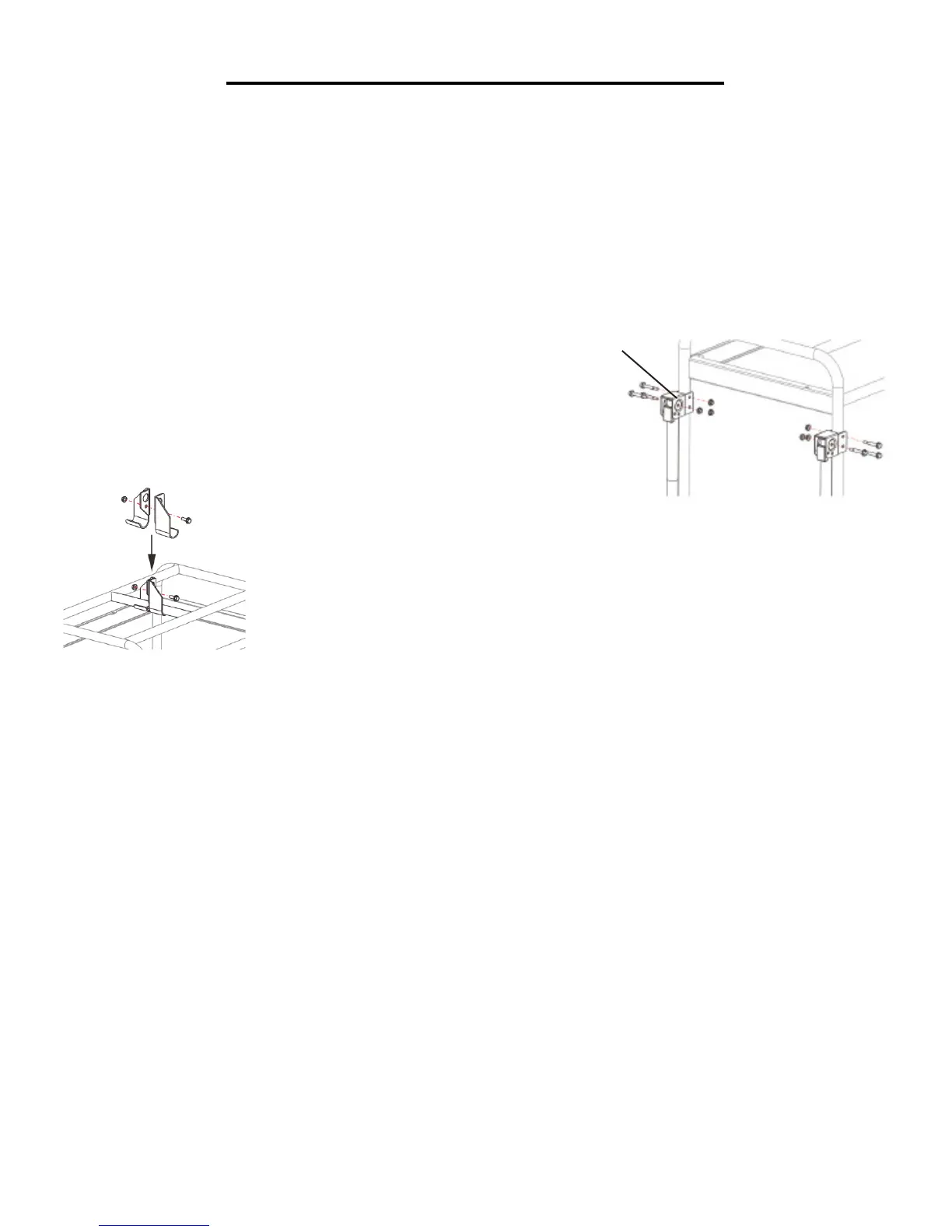

The handles attach to the generator frame on the same side as the recoil starter (left side when facing control
panel). To attach the handles to the generator frame, perform the following steps:
1. Take one handle bracket and line up the holes in the handle bracket with the holes on the generator frame.
2. Slide two bolts through the holes in the handle bracket and generator frame to hold the handle onto the frame.
3. Secure the bolt in place with a nut.
4. Set up the hand on the handle bracket.
5. Repeat steps 1-4 for the other handle.
Handle Bracket
ATTACH HOOK
1. Attach the hooks to either side of the top center bar.
2. Fasten in place with a screw and bolt as shown in the figure to the left.
