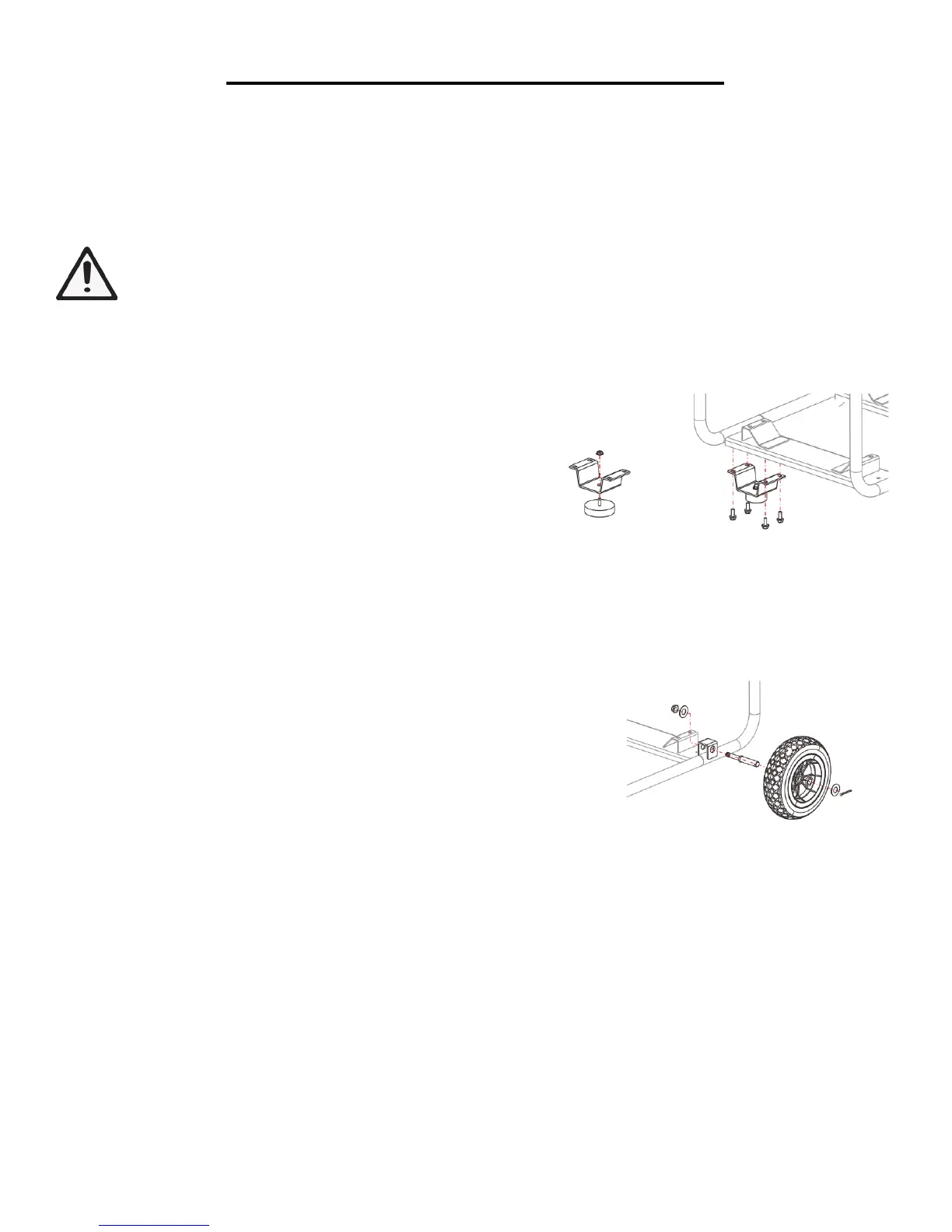

ASSEMBLY
In order to best protect the generator while in the package, this product comes with some components disassem-
bled. Please complete the following assembly steps before proceeding to use the generator. For ease of assembly,
we recommend attaching the components in the order listed in this manual.
If after reading this section, you are unsure about how to perform any of the steps, please call (800) 232-1195 M-F
8-5 CST for customer service.
WARNING: This generator is heavy. Assembly procedures may require lifting equipment or two
people.
ATTACH FEET
To attach the feet to the generator, perform the following
steps:
1. Find a wooden block or a similarly sturdy item that is at
least three inches thick. Stack the end of the generator with
the recoil starter onto the wooden block.
2. Setup both side feet as attached picture.
ATTACH WHEELS
To attach the wheels to the generator, perform the following steps:
1. Rest the exhaust end of the generator on the same wooden block
used for attaching the feet.
2. Take one wheel shaft and one nut as shown. Slide the wheel shaft
with the threaded part facing inward through the frame. Secure using
the nut and a wrench.
3. Slide the wheel onto the axle and secure in place using a large cotter
pin. Spread the pin legs apart slightly to help secure the pin in place.
4. Repeat steps 2 and 3 for the other wheel.
