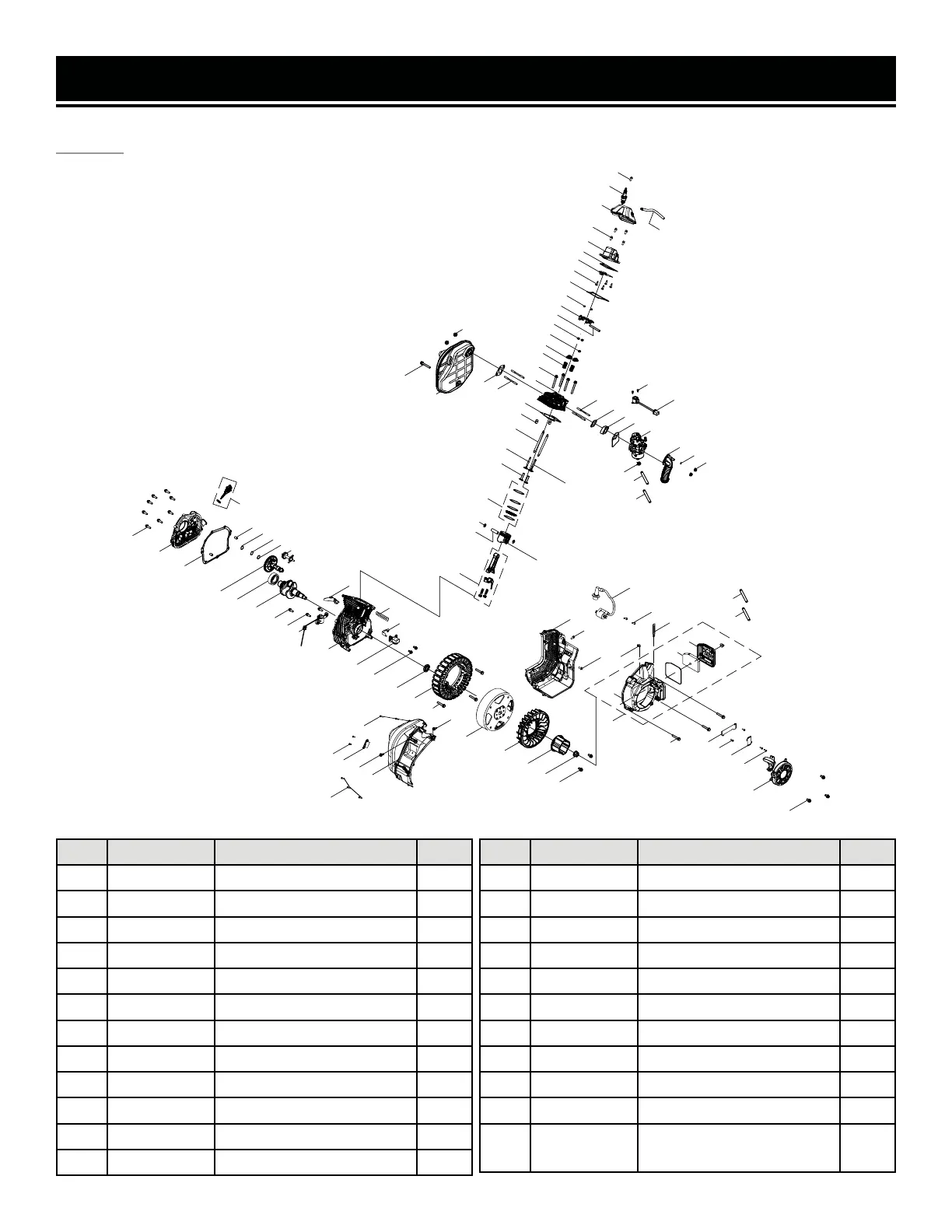

EXPLODED VIEW & PARTS LIST
ENGINE
NO. PART NO. DESCRIPTION QTY.
1 56202i-152 Bolt, M6x20 4
2 56360iX-002 Spark Plug E6RTC 1
3 56202i-103 Breather Hose 1
4 56360iX-004 Valve Cover 1
5 56360iX-005 Valve Cover Assembly 1
6 56360iX-006 Inner Cover, Valve Cover 1
7 56202i-107 Screw, M3x6 4
8 56360iX-008 Gasket, Valve Cover 1
9 56360iX-009 Rocker Arm Assembly 2
10 56360iX-010 Rocker Arm Coreshaft 1
11 56202i-111 Valve Locker 2
12 56360iX-012 Intake Valve Seal 1
34
NO. PART NO. DESCRIPTION QTY.
13 56202i-113 Valve Spring Seat 2
14 56360iX-014 Valve Spring 2
15 56360iX-015 Bolt, M8x60 4
16 56360iX-016 Cylinder Head 1
17 56360iX-017 Stud, M6x82 2
18 56360iX-018 Gasket, Muffler 1
19 56360iX-019 Muffler 1
20 56360iX-020 Bolt, M6x75 1
21 56202i-121 Nut, M6 4
22 56202i-122 Stud, M6x87 2
23 56360iX-023
Gasket, Carburetor
Insulator
1
5
8
51
61
59
58
42
31
53
41
40
38
43
2
25
26
23
3
32
12
36
37
11
9
10
35
13
14
22
16
17
18
19
44
66
24
45
27
55
85
33
21
54
46
47
20
15
56
57
7
4
39
60
1
71
6
30
29
83
21
34
63
64
28
62
93
48
49
50
68
65
69
70
72
73
74
75
76
77
77
78
77
79
80
81
82
84
86
87
47
47
47
87
88
89
67
90
91
90
92
84
