KNOW YOUR INVERTER GENERATOR

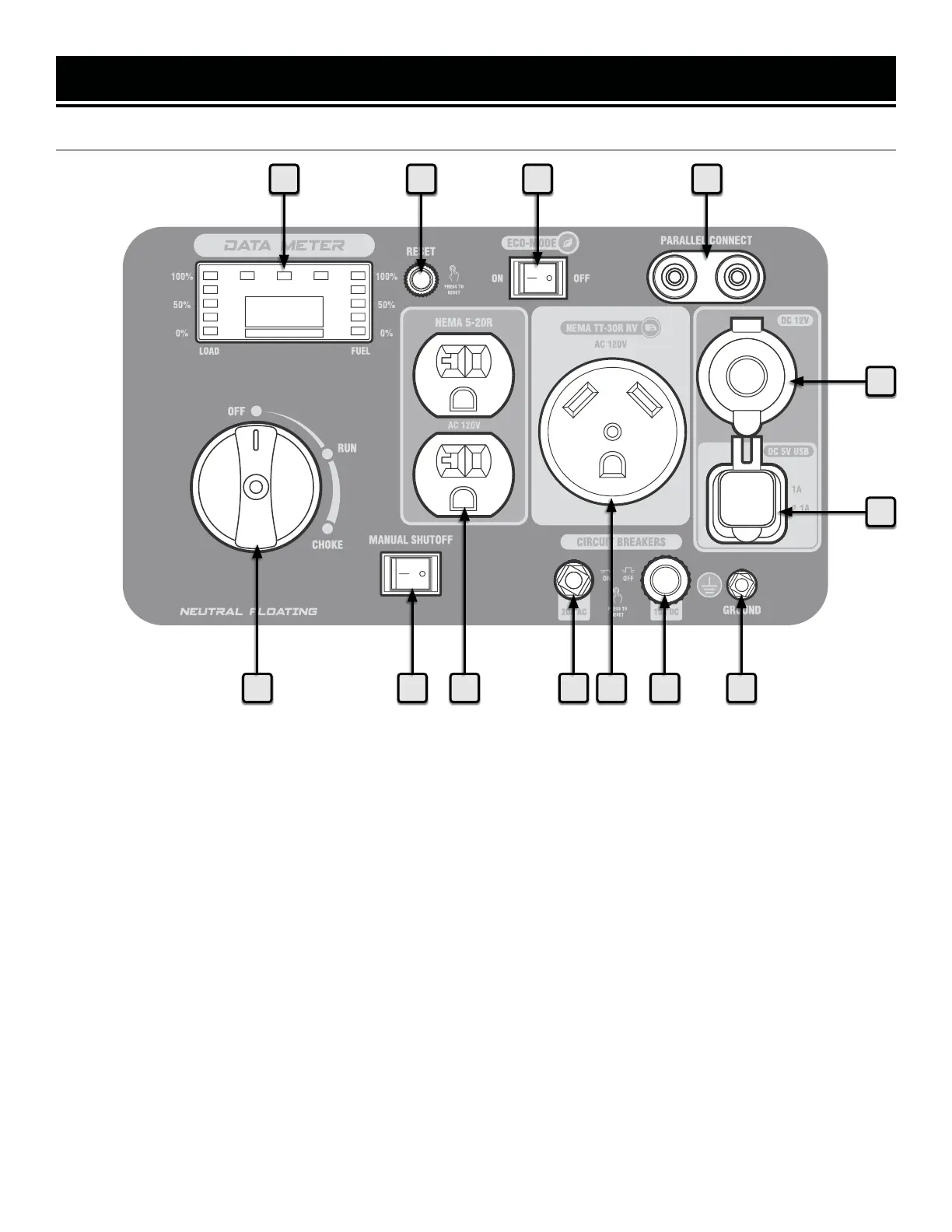

CONTROL PANEL
1 3 4
5
6
79101213
1. Data Meter with Indicator Light
2. Overload Reset
If the overload light is ON, press this button to reset.
3. Eco-Mode Switch
Turn ON to increase fuel economy and runtime when the
load is below 2625W (75% load).
4. Parallel Connection Port
Connect two WEN inverter generators through a parallel
connection kit for a higher output.
5. DC 12V Cigarette-Lighter Style Receptacle
6. DC 5V USB Outlet
7. Grounding Nut
Ground generator to reduce risk of electric shock.
8. DC Circuit Breaker (10A)
9. AC 120V NEMA TT-30 Receptacle (29.16A)
10. AC Circuit Breaker for NEMA 5-20R (20A)
11. AC 120V NEMA 5-20 Duplex Receptacles (20A)
12. Manual Shutoff Button
Push down for 10 sec. to shutoff generator manually.
13. 3-in-1 Switch
Turn switch to choke, run, and automatically shut off the
generator.
11
2
811
