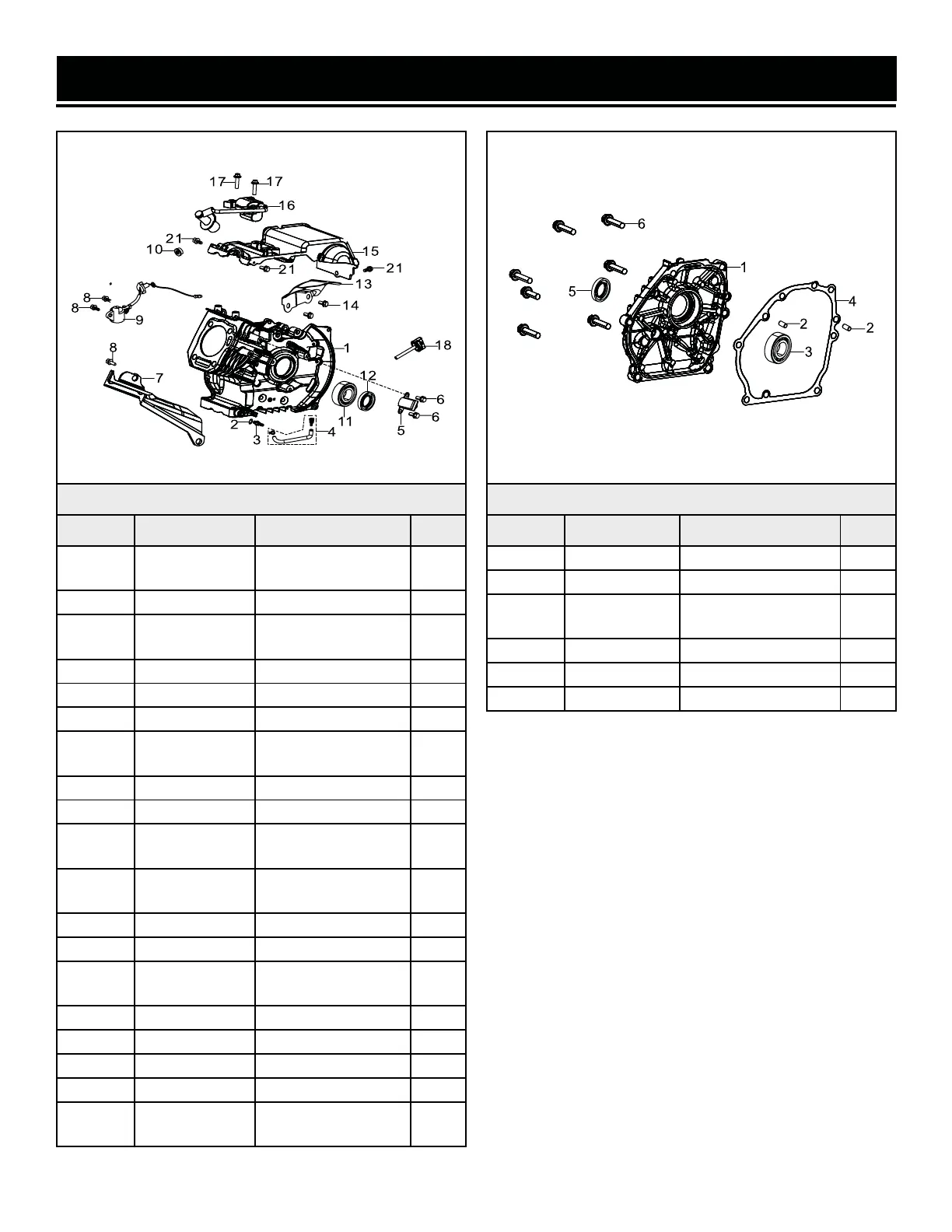

Fig. 1 - Crankcase Assembly
No. Part No. Description Qty.
1-1 56380i-0101
Crankcase
Subassembly
1
1-2 56380i-0102 Flat Washer, 10mm 1
1-3 56380i-0103
Connector, Oil Drain
Hose
1
1-4 56380i-0104 Oil Drain Hose 1
1-5 56380i-0105 Trigger 1
1-6 56310i-1106 Bolt, M5x16 2
1-7 56380i-0107
Crankcase Side
Shield
1
1-8 56310i-1201 Bolt, M6x16 3
1-9 56310i-0211 Engine Oil Sensor 1
1-10 56310i-0210
Flanged Hex Nut,
M10
1
1-11 56380i-0111
Deep-Groove Ball
Bearing, 6305
1
1-12 56310i-0306 Oil Seal 1
1-13 56450i-0113 Rear Shroud 1
1-14 56310i-1201
Flanged Hex Bolt,
M6x16
2
1-15 56380i-0115 Protective Cover 1
1-16 56380i-0116 Ignition Cil 1
1-17 56380i-0117 Bolt, M6x28 2
1-18 56380i-0118 Oil Dipstick 1
1-21 56310i-1201
Flanged Hex Bolt,
M6x16
3
Fig. 2 - Crankcase Cover Assembly
No. Part No. Description Qty.
2-1 56380i-0201 Cover, Crankcase 1
2-2 56200-0803 Pin 2
2-3 56380i-0203
Deep-Groove Ball
Bearing, 6205
1
2-4 56380i-0204 Gasket, Crankcase 1
2-5 56310i-0306 Oil Seal 1
2-6 56310i-0307 Bolt, M8x32 6
EXPLODED VIEW & PARTS LIST
36
