Wen 56450i

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
3-1 56200-1202 Bolt, M6x20 4
3-2 56380i-0302
Cylinder Head Cover
Subassembly
1
3-3 56380i-0303
Cylinder Head Cover
Gasket
1
3-4 56310i-0104
Spark Plug (Torch
F6RTC, NGK
BPR6ES)
1
3-5 56310i-0106
Cylinder Head Bolt,
M8x60
4
3-6 56380i-0306 Breather Tube 1
No. Part No. Description Qty.
3-7 56450i-0307
Cylinder Head
Subassembly
1
3-8 56310i-0109 Bolt, M8x34 2
3-9 56380i-0309 Stud Bolt, M6x105 2
3-10 56380i-0310 Cylinder Head Gasket 1
3-11 56380i-0311 Pin 2
3-12 56380i-0312 Limiter 1
3-13 56380i-0313 Bolt, M6x12 1
3-14 56380i-0314 Breather Gasket 1
3-15 56380i-0315 Breather Plate 1

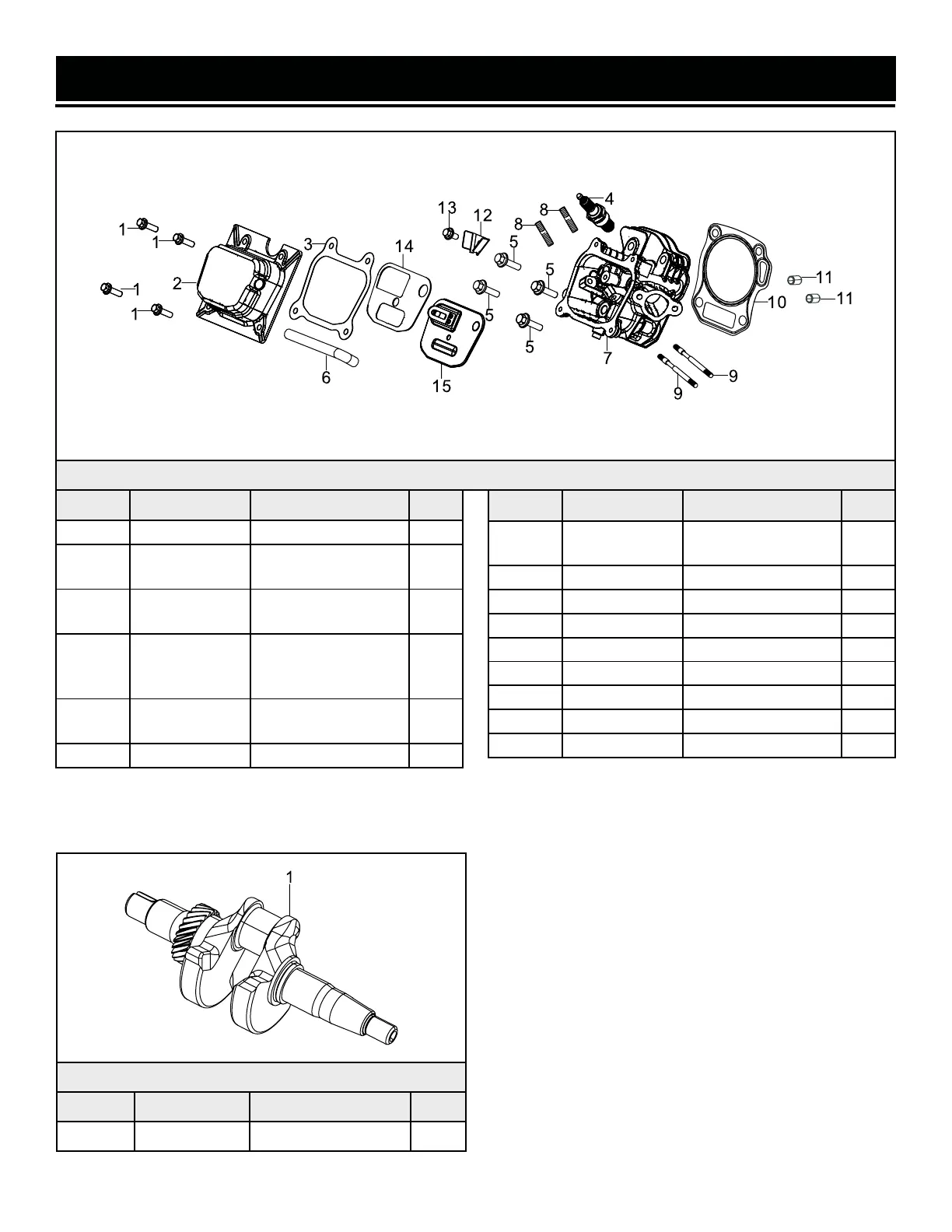

Fig. 3 - Cylinder Head Assembly
Fig. 4 - Crankshaft Assembly
No. Part No. Description Qty.
4-1 56380i-0401 Crankshaft Assembly 1
