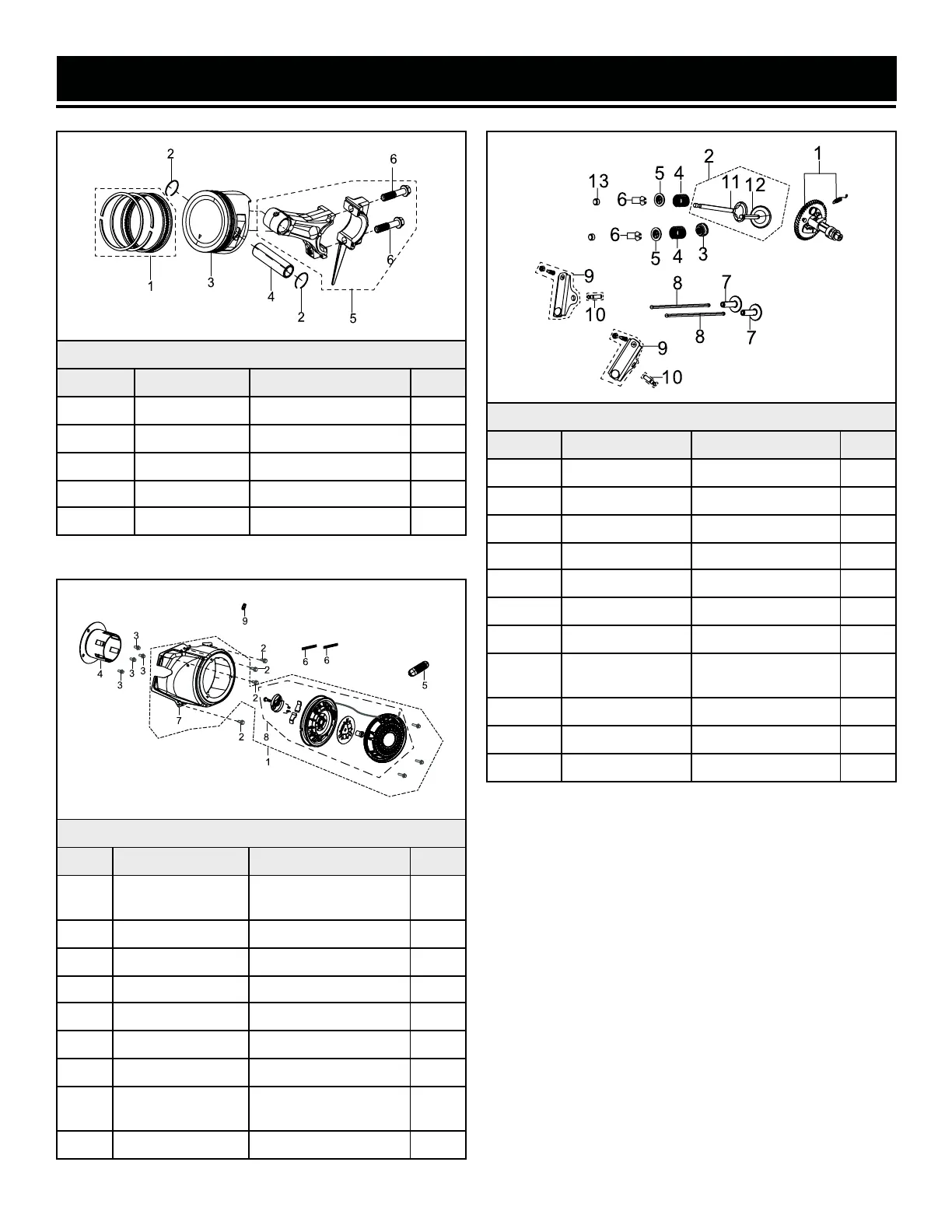

Wen 56450i User Manual

Fig. 5 - Piston Ring Set & Connecting Rod
No. Part No. Description Qty.
5-1 56310i-0501 Piston Ring Assembly 1
5-2 56310i-0505 Piston Pin Clip 2
5-3 56380i-0503 Piston 1
5-4 56310i-0504 Piston Pin 1
5-5 56380i-0505 Connecting Rod 1
Fig. 6 - Valve Train & Camshaft Subassembly
No. Part No. Description Qty.
6-1 56380i-0601 Camshaft Assembly 1
6-2 56450i-0602 Valve Set 1
6-3 56450i-0603 Seal Guide 1
6-4 56310i-0604 Valve Spring 2
6-5 56380i-0605 Valve Spring Seat 2
6-6 56310i-0606 Valve Lock Clamp 4
6-7 56310i-0607 Valve Tappet 2
6-8 56380i-0608
Valve Lifter Subas-
sembly
2
6-9 56380i-0609 Valve Rocker Arm 2
6-10 56380i-0610 Rocker Shaft 2
6-13 56450i-0613 Valve Rotator 2
Fig. 7 - Recoil Starter
No. Part No. Description Qty.
7-1 56380i-0701
Recoil Starter and
Shroud Assembly
1
7-2 56200-0706 Bolt, M6x12 4
7-3 56200-0706 Bolt, M6x12 4
7-4 56400iX-0704 Starter Pulley 1
7-5 56200-0420 Recoil Starter Handle 1
7-6 56400iX-0702 Clamp 2
7-7 56380i-0707 Shroud 1
7-8 56380i-0708
Recoil Starter As-
sembly
1
7-9 56400iX-0702 Clamp 1
EXPLODED VIEW & PARTS LIST
