Wen 56450i

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
16-1 56380i-1601 Left Cover 1
16-2 56200-0406 Bolt, M5x12 4
16-3 56380i-1603 Left Shell 1
16-4 56380i-1604 Right Shell 1
16-5 56380i-1605 Right Cover 1
16-6 56200-0408 Nut, M6 8
16-7 56380i-1607 Bolt, M6x20 8
16-8 56200-0515
Fuel Tank Rubber
Sleeve
4
16-9 56200-0508 Bolt, M6x12 8
No. Part No. Description Qty.
16-10 56380i-1610
Recoil Starter Guide
Subassembly
1
16-11 56200-0612 Screw And Washer 2
16-12 56200-0420 Recoil Starter Handle 1
16-13 56380i-1613
Right Maintenance
Door
1
16-14 56400iX-1614 Access Door Knob 1
16-15 56380i-1615 Stopper 2
16-16 56200-0427B Spring Clamp 1
16-17 56380i-1617 Wheel 2
16-18 56380i-1618 Wheel Axle 2
16-19 56380i-1619 Nut, M5 16

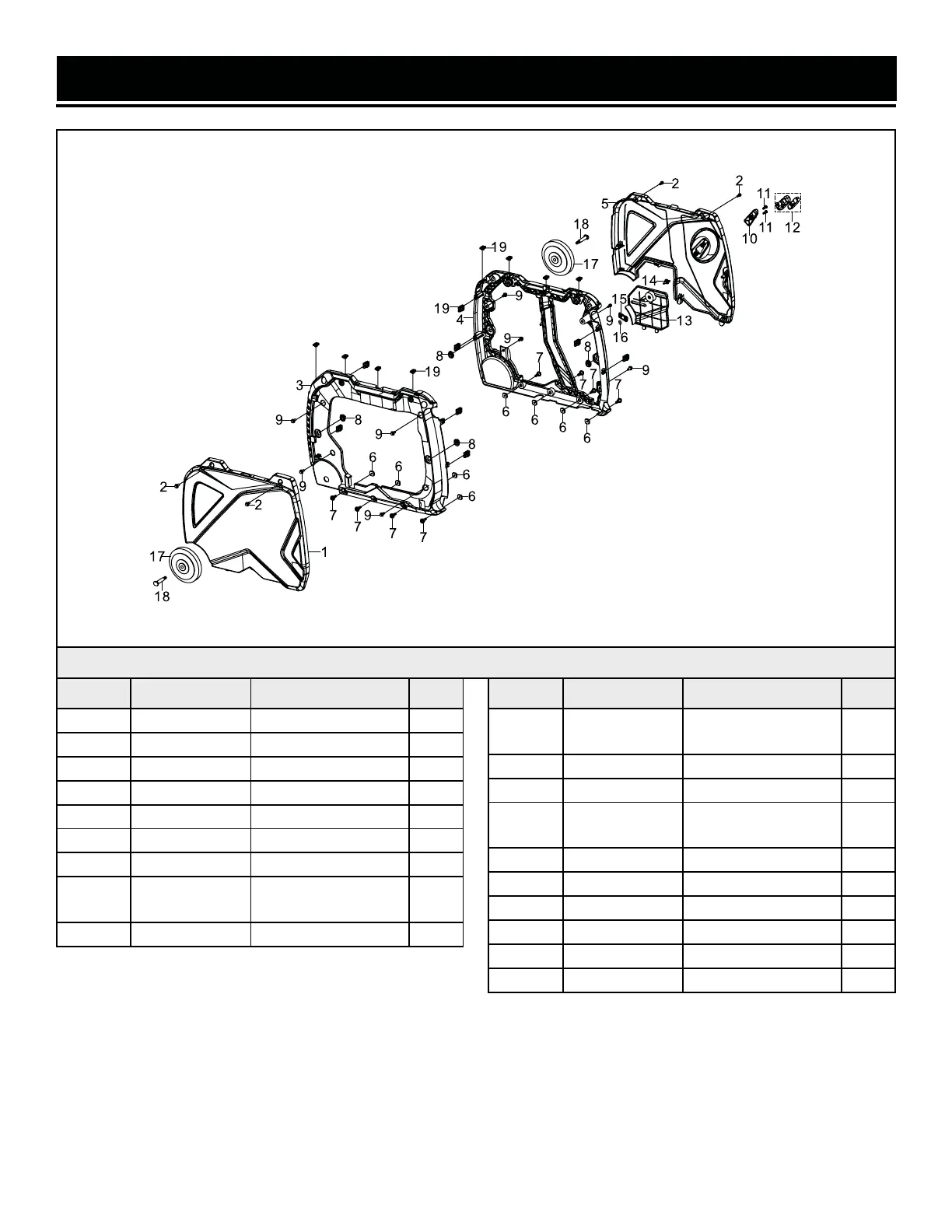

Fig. 16 - Side Covers
45
