ASSEMBLY & ADJUSTMENTS
ATTACHING THE WHEELS
1. Find a wood block or similar item that is 3 inches thick
or greater and rest the exhaust end of the generator on the
block (Fig. 4).
2. Take one wheel shaft, and one M12 nut as shown (Fig.
5). Slide the wheel shaft, with the threaded part facing in-
ward, through the frame. Secure using an M12 nut and the
included wrench as shown (Fig. 6).
3. Slide the wheel onto the axle and secure in place using
the nut.
4. Repeat steps 2 and 3 for the other wheel.
At this point, the generator assembly is complete. Gently
remove the generator from the wood block.

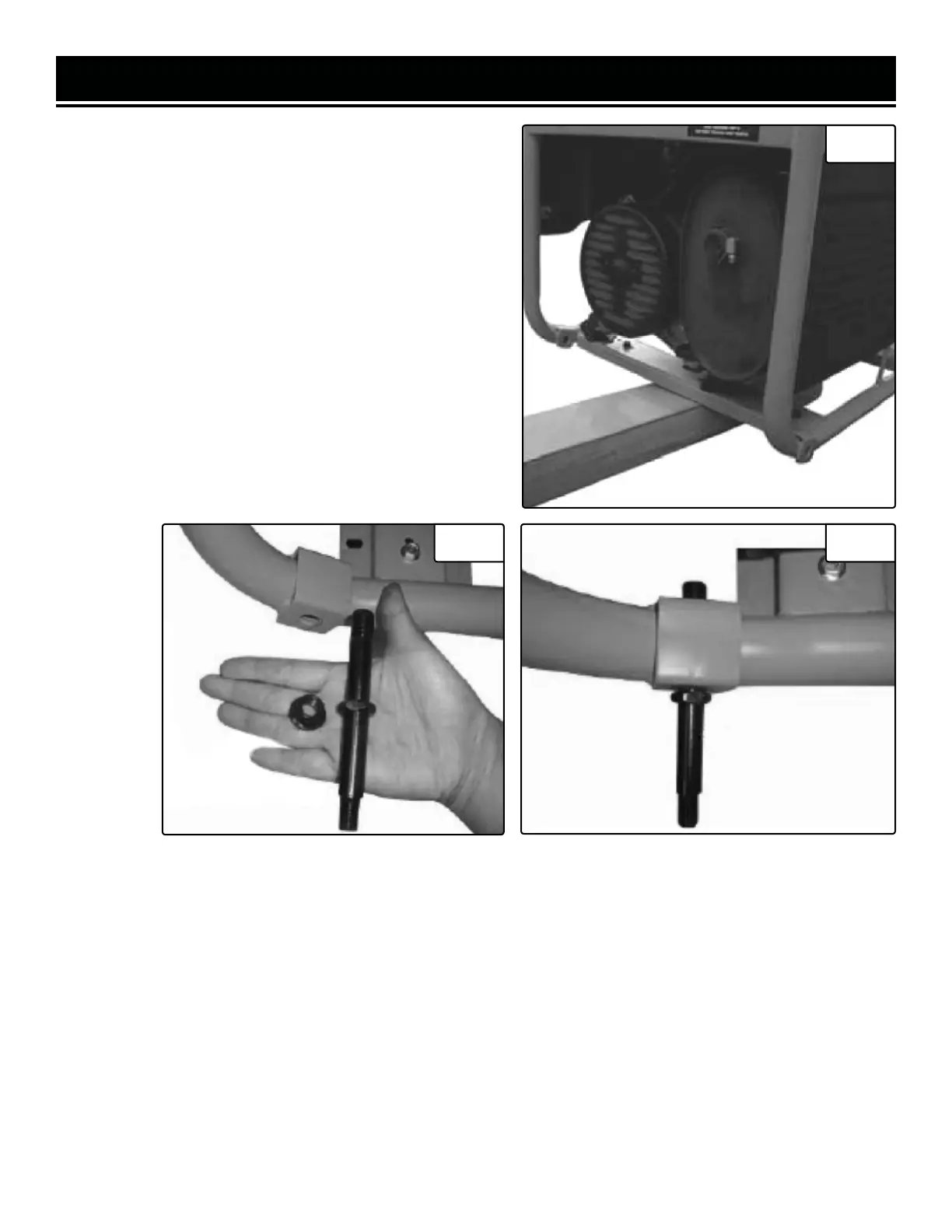

Fig. 4
Fig. 5
13
Fig. 6
To Next Page
