KNOW YOUR GENERATOR
TOOL PURPOSE
Generators provide you with power when and where you need it most. Refer to the following diagrams to become
familiarized with all the parts and controls of your Generator. The components will be referred to later in the manual
for assembly and operation instructions.

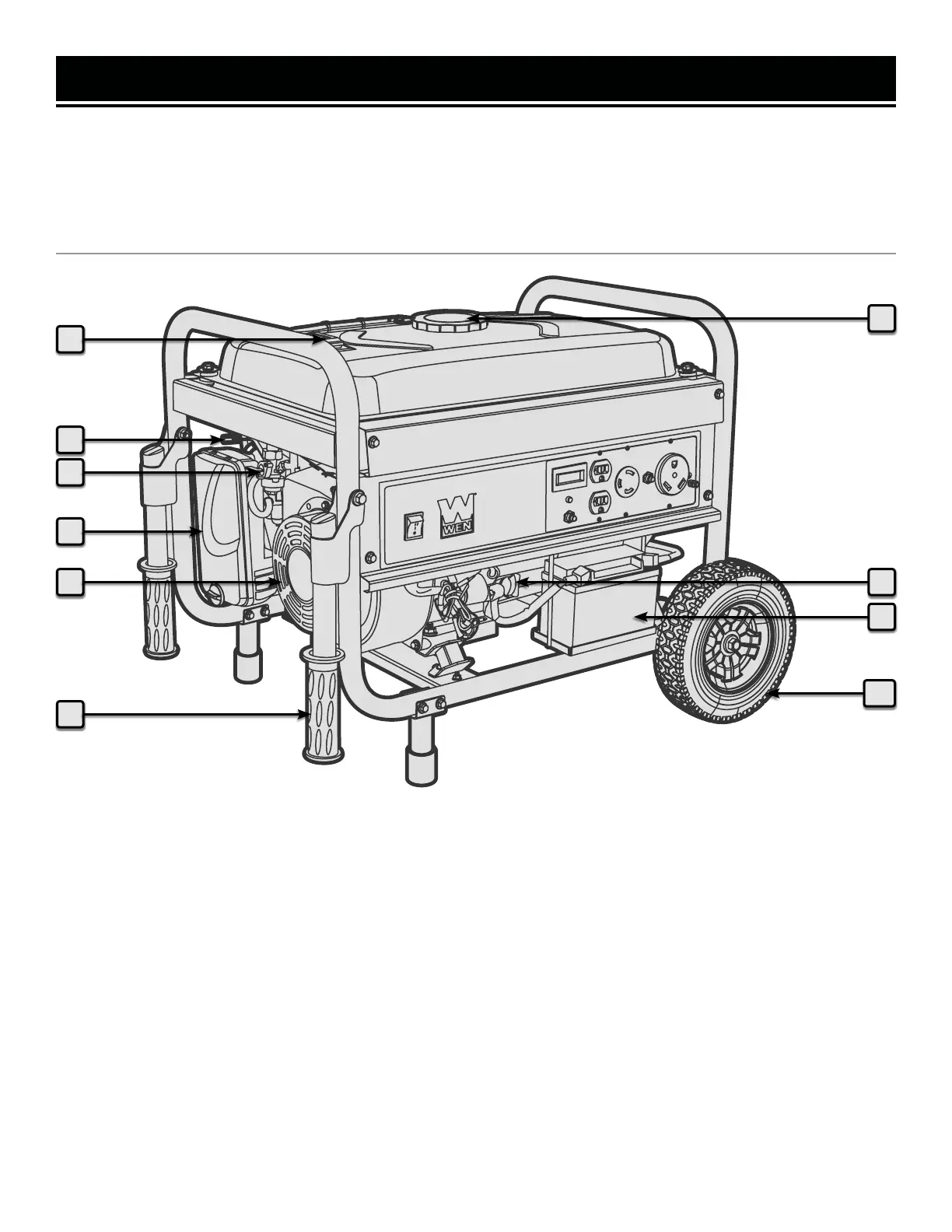

GENERATOR
1
7
2
3
4
5
6
9
8
10
1. Fuel Gauge
Indicates the amount of fuel in the tank.
2. Choke Lever
3. Fuel Valve
Allows fuel to enter the engine.
4. Air Cleaner
A removable, cleanable, sponge-like element that limits
the amount of dirt pulled into the engine.
5. Recoil Starter
Pull cord for starting the engine.
6. Handles
For easy transport.
7. Fuel Cap
Access to the fuel tank for adding gasoline.
8. Oil Fill and Dipstick
Location for checking and filling the oil reservoir.
9. 12V Battery
10. 8-Inch Wheels
For easy transport.
10
