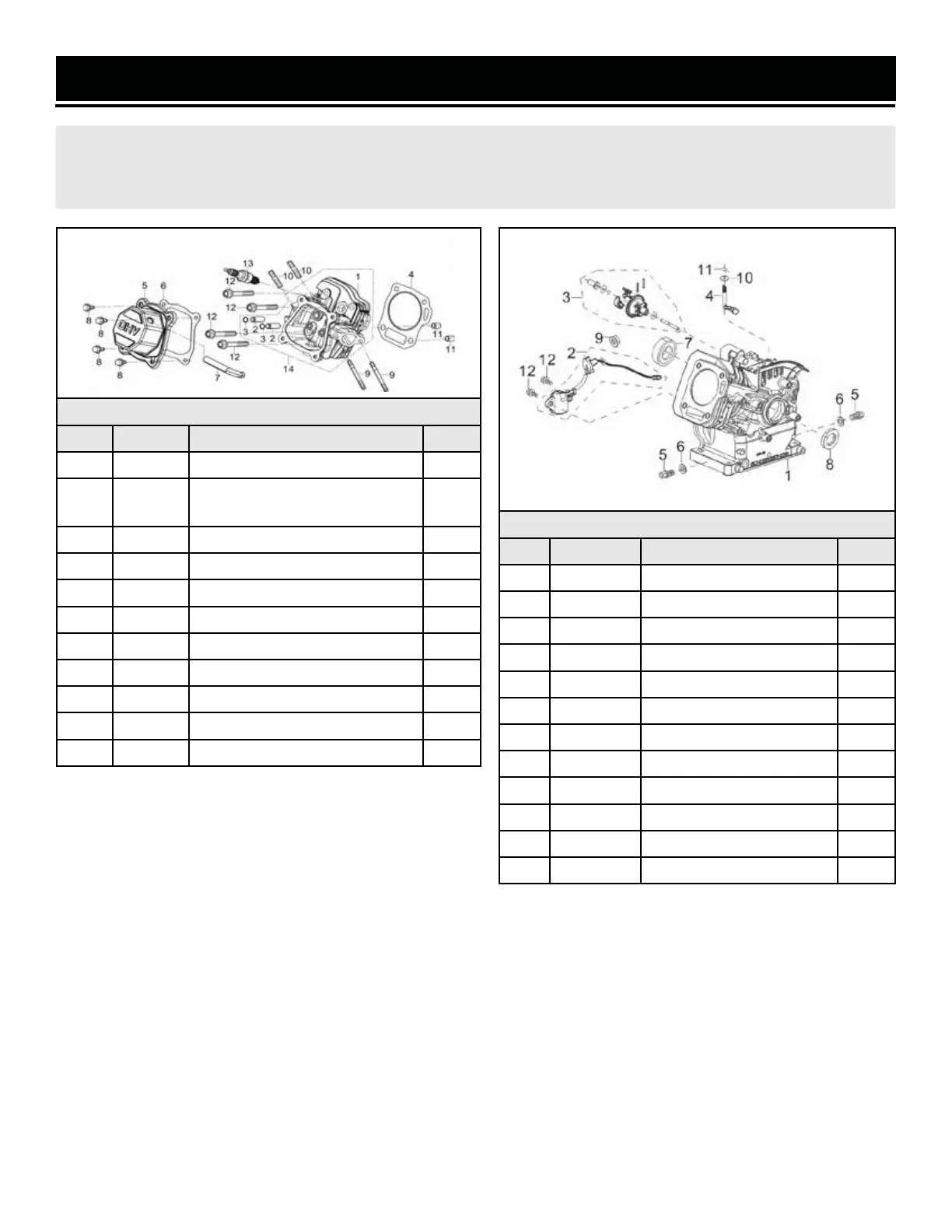

EXPLODED VIEW & PARTS LIST

NOTE: Replacement parts can be purchased from wenproducts.com, or by calling our customer service at

1-(800) 232-1195, M-F 8-5 CST. Parts and accessories that wear down over the course of normal use are not

covered by the two-year warranty. Not all parts may be available for purchase.

Fig. 1 - Cylinder Head Assembly

No. Part Description Qty.

1-4 P54051 Cylinder Head Gasket 1

1-5 P54066

Cylinder Head Cover

Assembly

1-6 P54064 Cylinder Head Cover Gasket 1

1-7 P54043 Air Duct 1

1-8 P54040 Bolt 4

1-9 P54047 Stud 2

1-10 P54058 Stud 2

1-11 P54048 Pin 2

1-12 P54062 Bolt 4

1-13 P54060 Spark Plug 1

1-14 P54054 Cylinder Head Assembly 1

Fig. 2 - Crankcase Assembly

No. Part Description Qty.

2-1 P54011C Crankcase 1

2-2 P54020 Oil Sensor 1

2-3 P54031B Regular Gear Assembly 1

2-4 P54014 Governor Arm 1

2-5 P54000 Oil Drain Plug 2

2-6 P54002 Washer 2

2-7 P54004B Bearing 1

2-8 P54008 Oil Seal 1

2-9 P54003 Nut 1

2-10 P54016 Washer 1

2-11 P54018 Pin 1

2-12 P54024 Bolt 2
