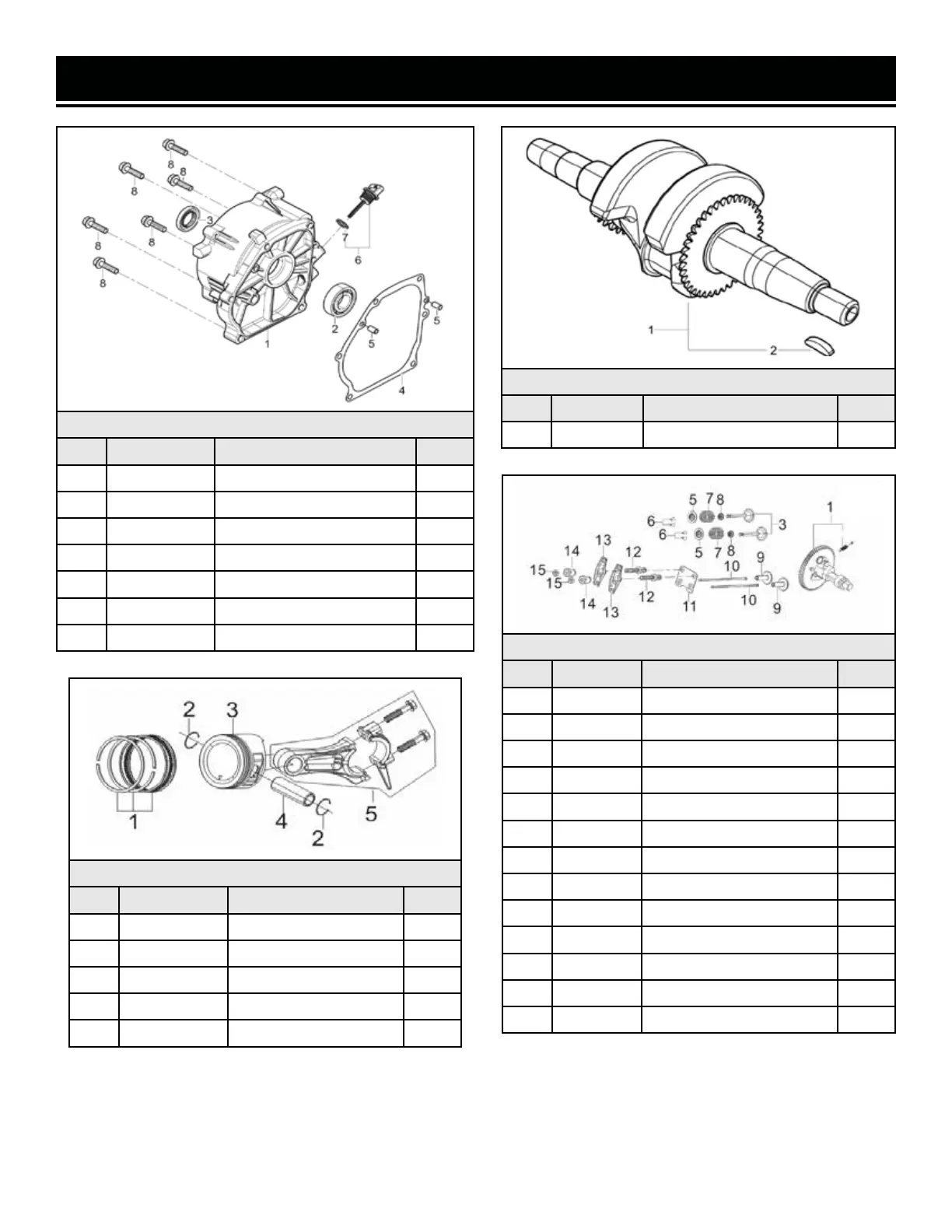

EXPLODED VIEW & PARTS LIST

Fig. 3 - Crankcase Cover Assembly

No. Part Description Qty.

3-1 P54075 Crankcase Cover 1

3-2 P54004B Bearing 1

3-3 P54088 Oil Seal 1

3-4 P54080 Crankcase Gasket 1

3-5 P54082 Pin 2

3-6 P54086 Oil Dipstick Assembly 1

3-8 P54092 Bolt M8x32 6

Fig. 4 - Crankshaft

No. Part Description Qty.

4-1 P54123B Crankshaft Assembly 1

Fig. 5 - Piston Ring / Connecting Rod

No. Part Description Qty.

5-1 P54105 Piston Ring Assembly 1

5-2 P54106B Piston Pin Clip 2

5-3 P54109B Piston 1

5-4 P54112B Piston Pin 1

5-5 P54121B Connecting Rod 1

Fig. 6 - Valve / Camshaft Assembly

No. Part Description Qty.

6-1 P54146 Camshaft Assembly 1

6-3 P54150 Valve 1

6-5 P54158 Valve Spring Seat 2

6-6 P54160 Valve Lock 4

6-7 P54154 Valve Spring 2

6-8 P54161 Guide Seal 2

6-9 P54142 Tappet 2

6-10 P54140 Lifter 2

6-11 P54138 Push Guide 1

6-12 P54134 Valve Adjusting Bolt 2

6-13 P54132 Valve Rocker 2

6-14 P54130 Sleeve 2

6-15 P54128 Lock Nut 2
