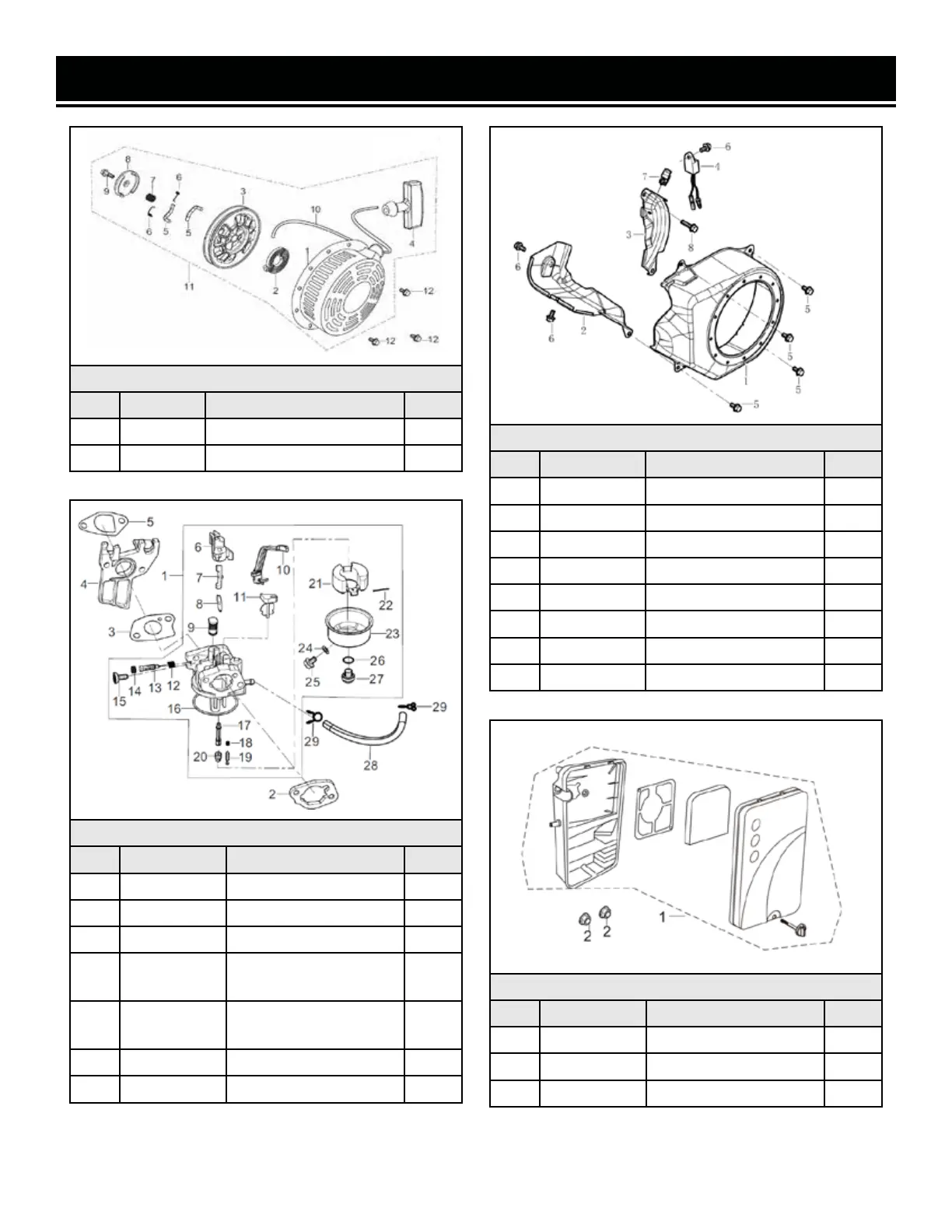

EXPLODED VIEW & PARTS LIST

Fig. 7 - Recoil Starter

No. Part Description Qty.

7-11 P54604 Recoil Starter Assembly 1

7-12 P54598 Bolt 3

Fig. 8 - Shroud

No. Part Description Qty.

8-1 P54668B Shroud End 1

8-2 P54044 Shroud Body 1

8-3 P54596B Lower Shield 1

8-4 P54612 Diode 1

8-5 P54040 Bolt 4

8-6 P54040 Bolt 3

8-7 P54596-1B Collar 1

8-8 P54186B Bolt M6x22 1

Fig. 9 - Carburetor Assembly

No. Part Description Qty.

9-1 P54718B Carburetor Assembly 1

9-2 P54168 Air Cleaner Gasket 1

9-3 P54166 Carburetor Gasket 1

9-4 P54164

Carburetor Insulator

Plate

9-5 P54162

Carburetor Insulator

Gasket

9-28 P54388 Fuel Tube 1

9-29 P54390 Collar 2

Fig. 10 - Air Cleaner

No. Part Description Qty.

10-1 P54178 Air Cleaner Assembly 1

P54178-1 Air Cleaner Element

10-2 P54179 Nut 2
