Wen 56475

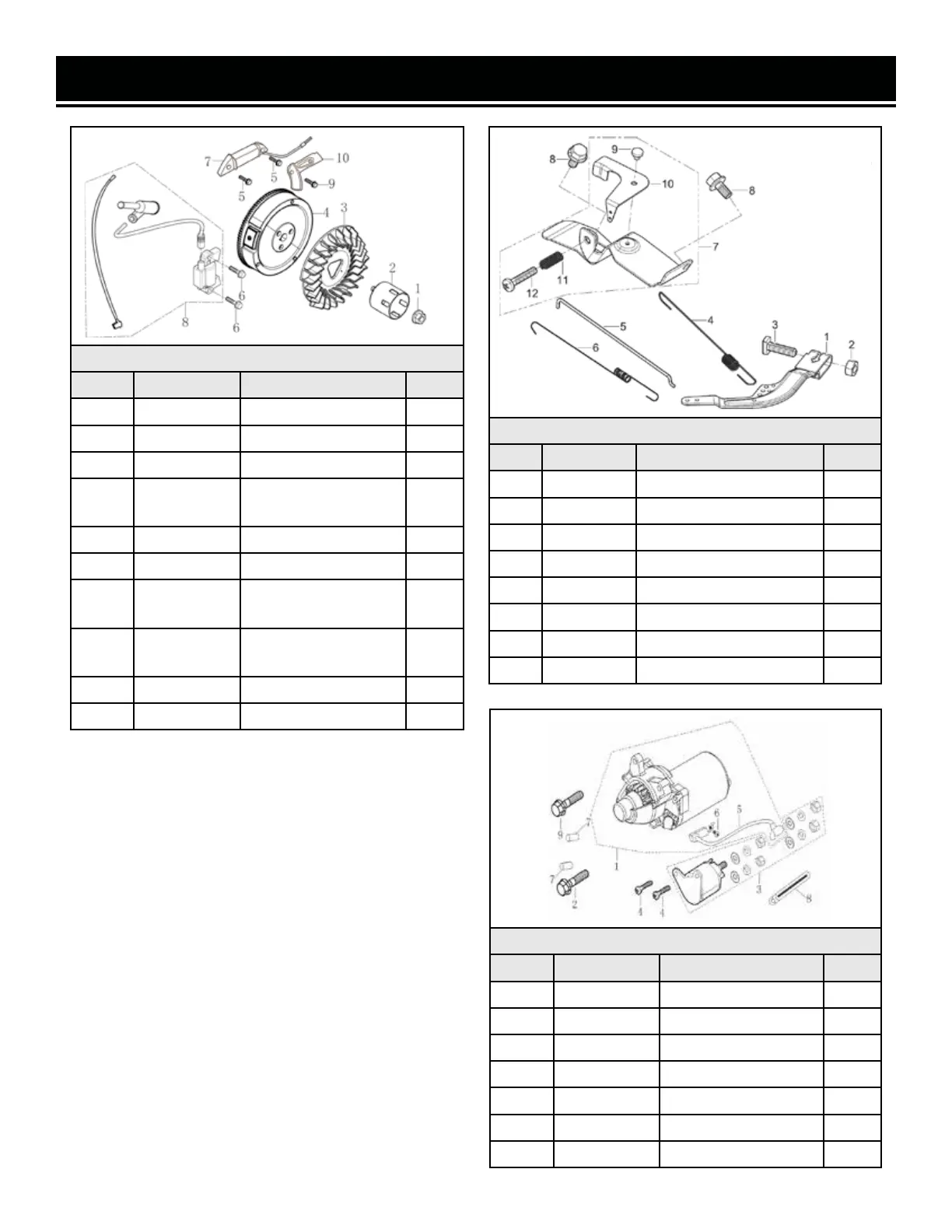

EXPLODED VIEW & PARTS LIST
Fig. 11 - Flywheel / Ignition Coil
No. Part Description Qty.
11-1 P54630 Nut M14 X 1.5 1
11-2 P54362 Starting Flange 1
11-3 P54634B Flywheel Fan 1
11-4 P54636B
Flywheel
Subassembly
1
11-5 56475-1105 Bolt 2
11-6 P54628 Bolt 2
11-7 56475-1107
Charge Coil
Subassembly
1
11-8 P54638
Ignition Coil
Assembly
1
11-9 56475-1109 Bolt 1
11-10 56475-1110 Coil Clamp 1
Fig. 12 - Control Assembly
No. Part Description Qty.
12-1 P54624 Regulating Arm 1
12-2 P54176 Nut M6 1
12-3 P54622 Lock Bolt 1
12-4 P54616 Back Spring 1
12-5 P54620 Pulling Rod 1
12-6 P54618 Regulating Spring 1
12-7 P54617 Regulating Assembly 1
12-8 P54619 Bolt 2
Fig. 13 - Starter Assembly
No. Part Description Qty.
13-1 56475-1301 Sarter Subassembly 1
13-2 56475-1302 Bolt 1
13-3 56475-1303 Selenoid 1
13-4 56475-1304 Bolt 2
13-7 56475-1305 Pin 2
13-8 56475-1306 Clip 1
13-9 56475-1307 Bolt 1
33
