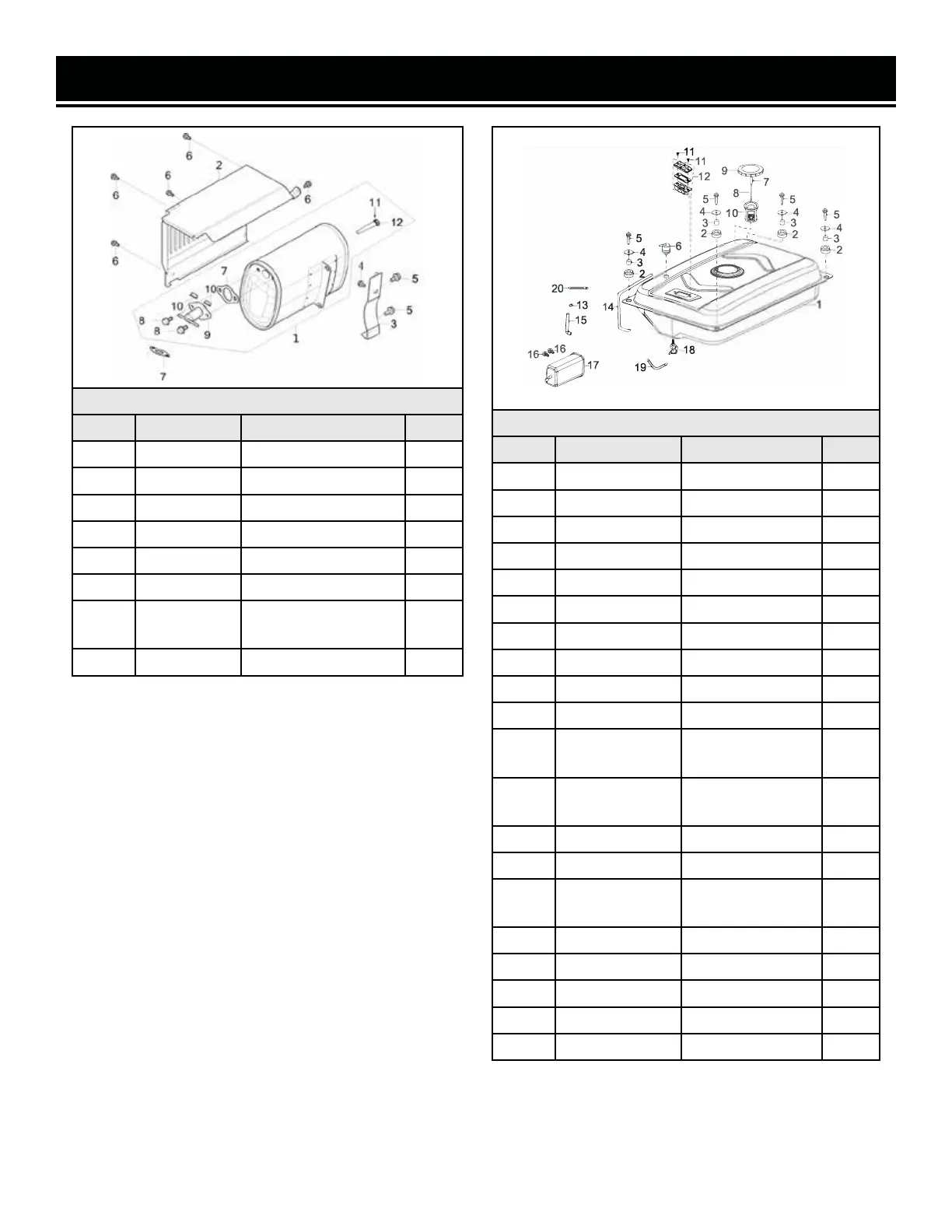

EXPLODED VIEW & PARTS LIST
Fig. 14 - Muffler Assembly
No. Part Description Qty.
14-1 P54401B Muffler Assembly 1
14-2 P54402 Muffler Cover 1
14-3 P54412 Muffler Bracket 1
14-4 P54422 Bolt 1
14-5 P54404 Bolt 2
14-6 P54422 Bolt 5
14-7 P54426
Gasket, Exhaust
Outlet
2
14-10 P54246 Nut 2
Fig. 15 - Tank, Fuel
No. Part Description Qty.
15-1 56475VN-1501 Fuel Tank 1
15-2 P54386 Cushion 4
15-3 P54396 Bushing 4
15-4 P54384 Washer 4
15-5 P54186 Bolt 4
15-6 P54375-2 Valve 1
15-7 P54373-1 Clip 1
15-8 P54373 Chain 1
15-9 P54365 Fuel Cap 1
15-10 P54372 Fuel Filter 1
15-11 P54374
Fuel Gauge
Assembly
2
15-12 P54374
Fuel Gauge
Assembly
1
15-13 P54375-9 Clamp 1
15-14 56475-1518 Rubber Hose 1
15-15 56475-1524
Carbon Tank
Hose
1
15-16 56475-1526 Bolt 2
15-17 56475-1525 Carbon Tank 1
15-18 56475VN-1518 Fuel Cock 1
15-19 P54388 Fuel Tube 1
15-20 56475-1519 Clip 1
