Wen 56475 User Manual

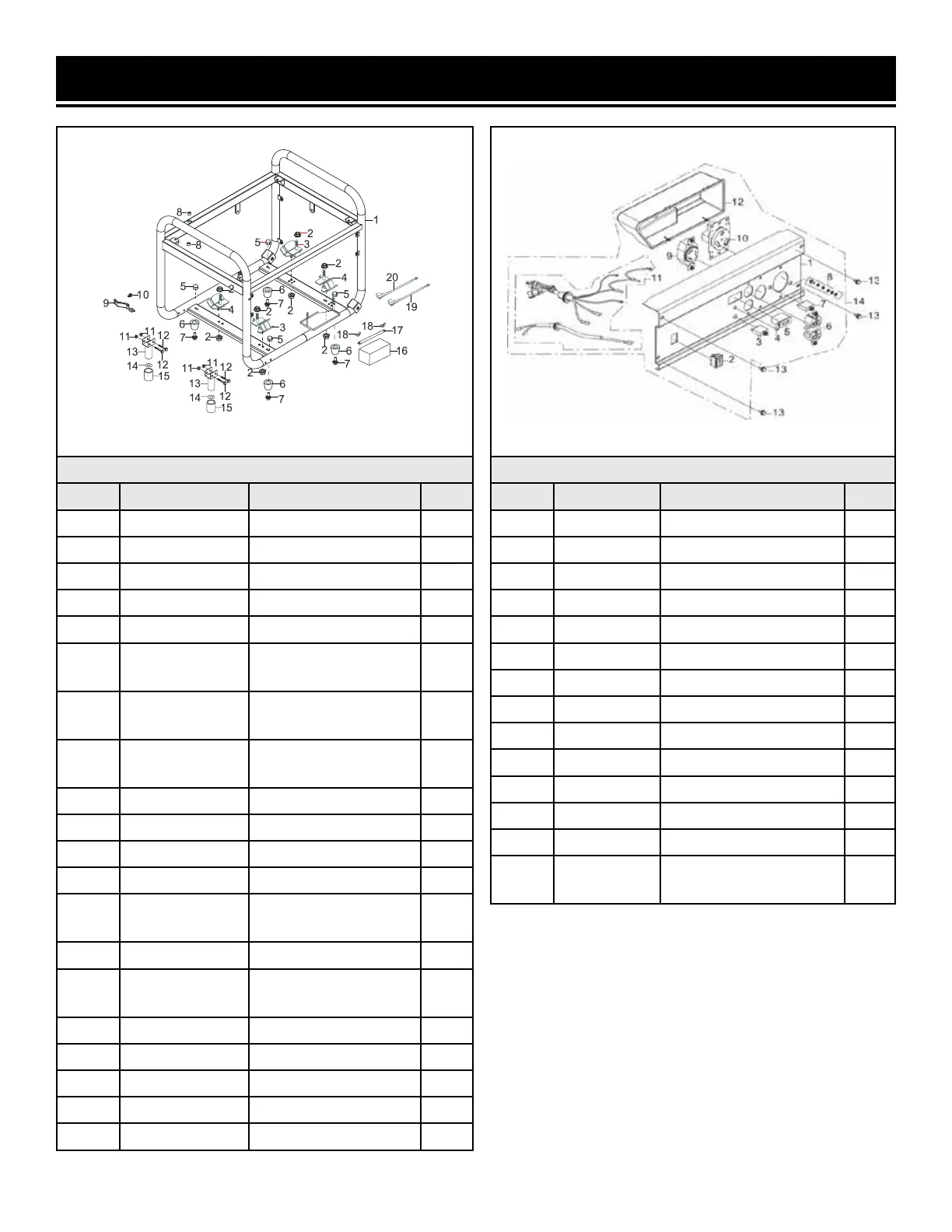

EXPLODED VIEW & PARTS LIST
Fig. 16 - Frame, Engine
No. Part Description Qty.
16-1 56475VN-1601 Frame Comp 1
16-2 P54246 Nut M8 8
16-3 P54242 Bottom Rubber A 2
16-4 P54244 Bottom Rubber B 2
16-5 P54246 Nut M8 4
16-6 P54871
Rubber Foot
Assembly
4
16-7 P54871
Rubber Foot
Assembly
4
16-8 P54871
Rubber Foot
Assembly
2
16-9 56475-1720 Air Cleaner Mount 1
16-10 56475-1711 Bolt 1
16-11 56475-1712 Nut 4
16-12 56475-1711 Bolt 4
16-13 56475-1706
Front Rubber Foot
Assembly
2
16-14 56475-1710 Washer 2
16-15 P54871-3
Front Rubber Foot
Sleeve
2
16-16 56475-1713 12V Battery 1
16-17 56475-1715 Battery Clamp 1
16-18 56475-1714 Butterfly Nut 2
16-19 56475-1716 Cathode Wire 1
16-20 56475-1717 Anode Wire 1
Fig. 17 - Panel Subassembly, Control
No. Part Description Qty.
17-1 P54283C Control Panel 1
17-2 P54296B Ignition Switch 1
17-3 56475-1803 20A Circuit Breaker 1
17-4 56475-1804 Power Indicator 1
17-5 P54877 Timer 1
17-6 P54454 Duplex Receptacle 1
17-7 P54838B 30A Circuit Breaker 1
17-8 P54262 Grounding Terminal 1
17-9 P54272B 120/240V Receptacle 1
17-10 56475-1810 RV Receptacle 1
17-11 56475-1811 Wiring Harness 1
17-12 56475-1812 Rear Panel 1
17-13 P54304 Bolt 4
17-14 56475-1814
Control Panel
Assembly
1
35
