Wen 56475 User Manual

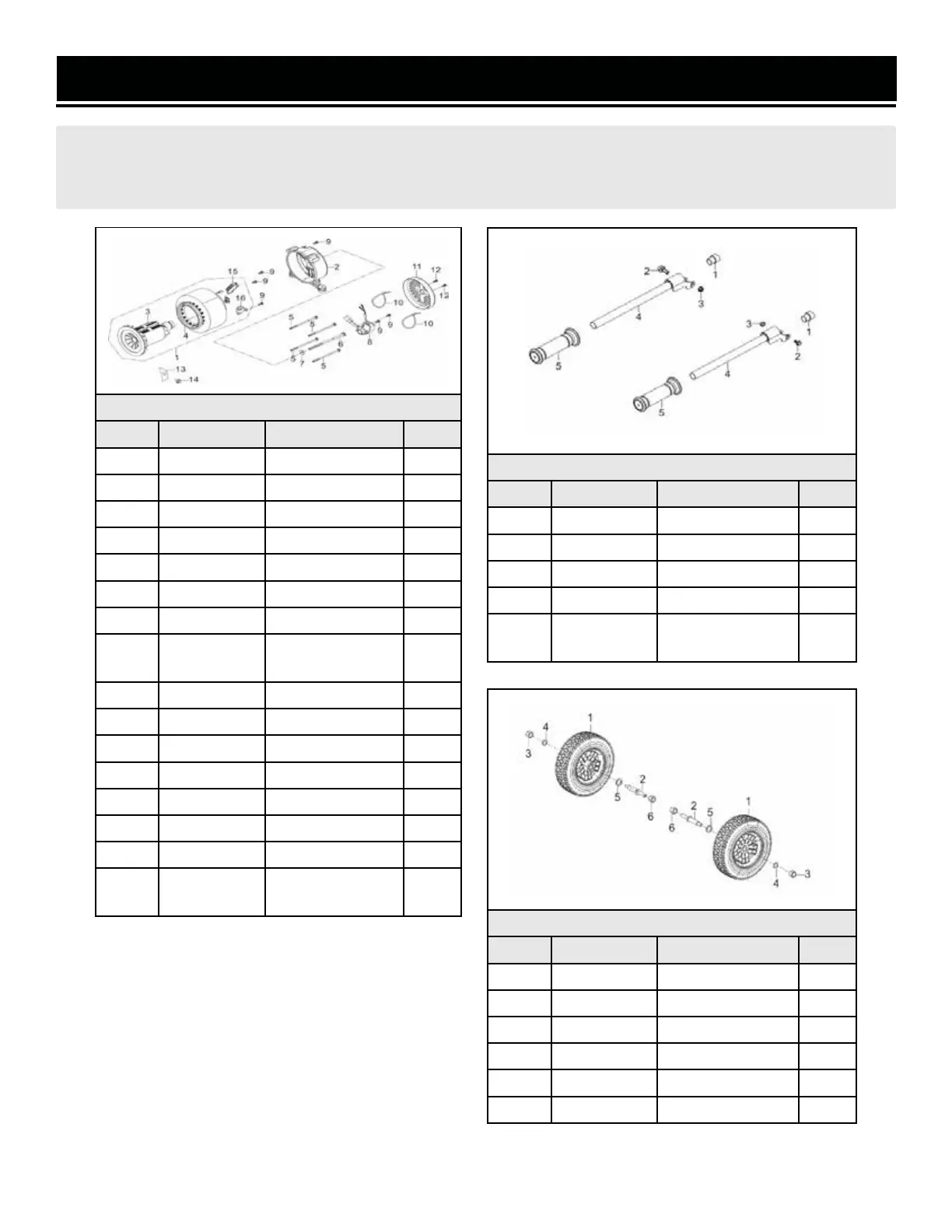

EXPLODED VIEW & PARTS LIST
NOTE: Replacement parts can be purchased from wenproducts.com, or by calling our customer service at
1-(800) 232-1195, M-F 8-5 CST. Parts and accessories that wear down over the course of normal use are not
covered by the two-year warranty. Not all parts may be available for purchase.
Fig. 18 - Rotor / Stator
No. Part Description Qty.
18-1 56475-1901 Rotor Assembly 1
18-2 P54336 Rotor Bracket 1
18-3 56475-1903 Rotor 1
18-4 56475-1904 Stator 1
18-5 56475-1905 Bolt 4
18-6 56475-1906 Rotor Bolt 1
18-7 P54348 Washer 1
18-8 56475-1908
Voltage
Regulator
1
18-9 P54360 Bolt 6
18-10 56475-1910 Cable Tie 2
18-11 P54337 End Cover 1
18-12 P54340 Bolt 2
18-13 56475-1913 Stopper 1
18-14 56475-1914 Bolt 1
18-15 56475-1915 Terminal 1
18-16 P54332
Carbon Brush
Subassembly
1
Fig. 20 - Wheel Kit Assembly
No. Part Description Qty.
E20-1 56475-1601 Wheel 2
E20-2 56475-1602 Wheel Shaft 2
E20-3 56475-1603 Nut 2
E20-4 56475-1604 Washer 2
E20-5 56475-1605 Washer 2
E20-6 56475-1606 Nut 2
Fig. 19 - Handles
No. Part Description Qty.
19-1 56475-2001 Rubber Seat 2
19-2 56475-2002 Bolt 2
19-3 56475-2003 Nut 2
19-4 56475-2004 Steel Handle 2
19-5 56475-2005
Rubber Handle
Sleeve
2
36
