10
ASSEMBLY & ADJUSTMENTS
UNPACKING
With the help of a friend or trustworthy foe, carefully remove the belt/disc sander from the packaging.
Make sure to take out all contents and accessories. Do not discard the packaging until the belt/disc
sander is completely assembled.
Before using the wood lathe, you must assemble the unit using the instructions in this section. Check
your packing list against the diagram below. If any part is damaged or missing, please contact our
customer service at (800) 232-1195, M-F 8-5 CST or email us at techsupport@wenproducts.com.
WARNING: Do not plug in or turn on the tool until it is fully assembled according to the
instructions. Failure to follow the safety instructions may result in serious personal injury.

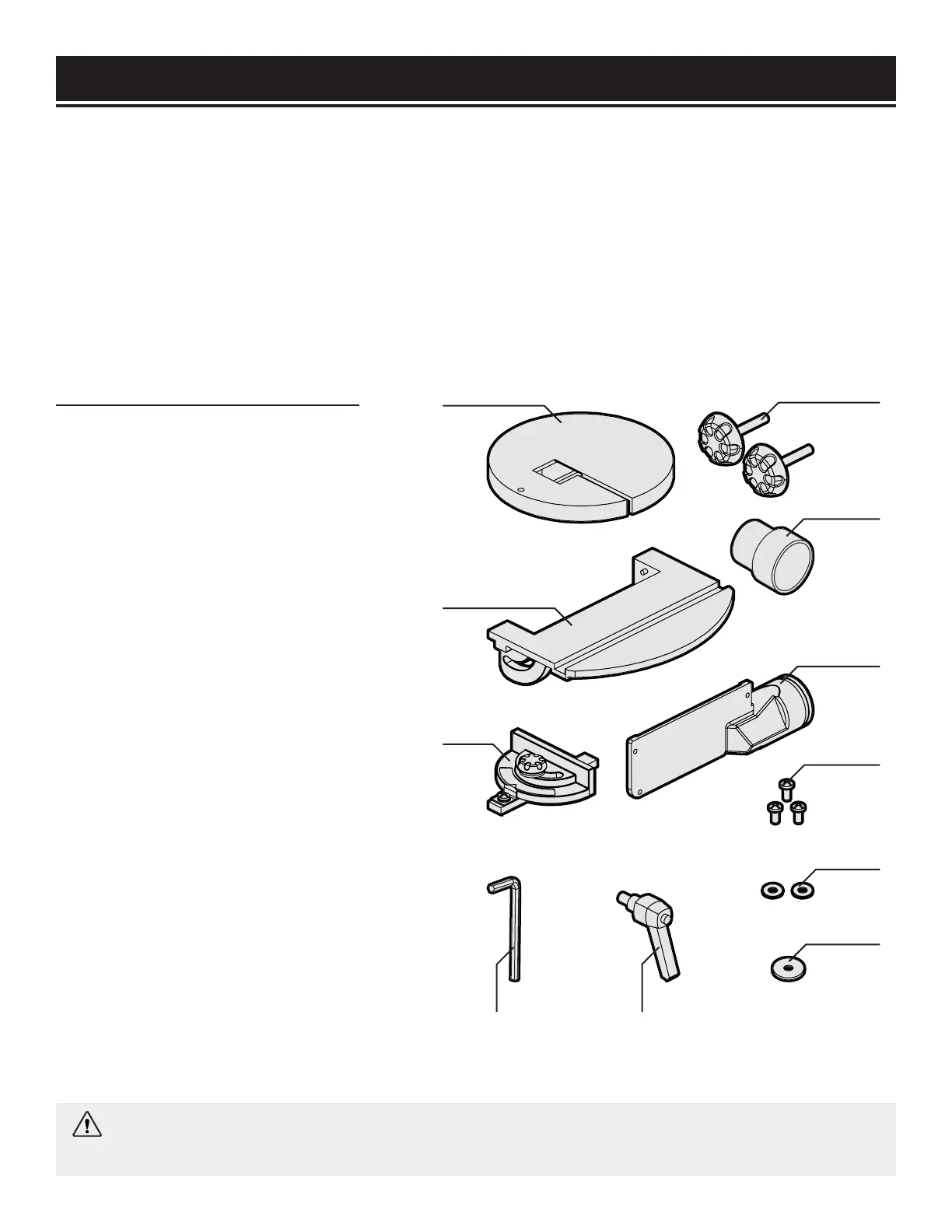

PACKING LIST
A. Disc Table (1)
B. Belt Table (1)
C. Miter Gauge Assembly (1)
D. 3mm Hex Wrench (1)
E. Belt Table Locking Lever (1)
F. Washer, Locking Lever(1)
G. Washers, Disc Table Knob (2)
H. Screws, Disc Dust Port (3)
I. Disc Dust Port (1)
J. Belt Dust Port Adapter (1)
K. Disc Table Locking Knobs (2)
The items listed below are not included
but are required for either assembly
or adjustment.
• Square
• Dust Collection System
K
A
B
C
D E
I
G
J
H
F
