ASSEMBLY
This tile saw must only be used only to cut tiles to a required size or shape. It shall
not be used to cut inflammable, explosive or toxic materials. Other uses for the
machine will lead to the damage of the machine and a series of dangers to the
operator. This tool is for private and household use, not for professional or
industrial ones. Only identical accessories as the ones provided with the tile saw
are authorized. Never use the appliance in the rain or other wet conditions.
PACKAGE CONTENTS
2
6
341
5
7
8
9
1
2
3
4
5
6
7
8
9
Tile saw (assembled)
Protective guard
Mitre cutting guide
Parallel guide
Metal bracket
Diamond disc
Spanners
Rubber feet
Water reservoir plug
1
1
1
1
1
1
2
4
1
PART DESCRIPTION QUANTITY
SPECIFIC RULES FOR TILE SAWS
7
11. Switch off the tile saw and wait until the cutting disc comes to a complete stop before removing workpieces or
residual material from the work area.
12. This tile saw should be used at an ambient temperature between 59°F and 86°F (15°C and 30°C).
13. To avoid accidentally starting the tool, always disconnect the product from its power supply before performing
adjustments or maintenance.
14. Use only recommended accessories. The use of improper accessories may cause risk of injury to persons.
15. Always store the product in a dry and frost-free place. Keep the tool and cutting discs away from children.

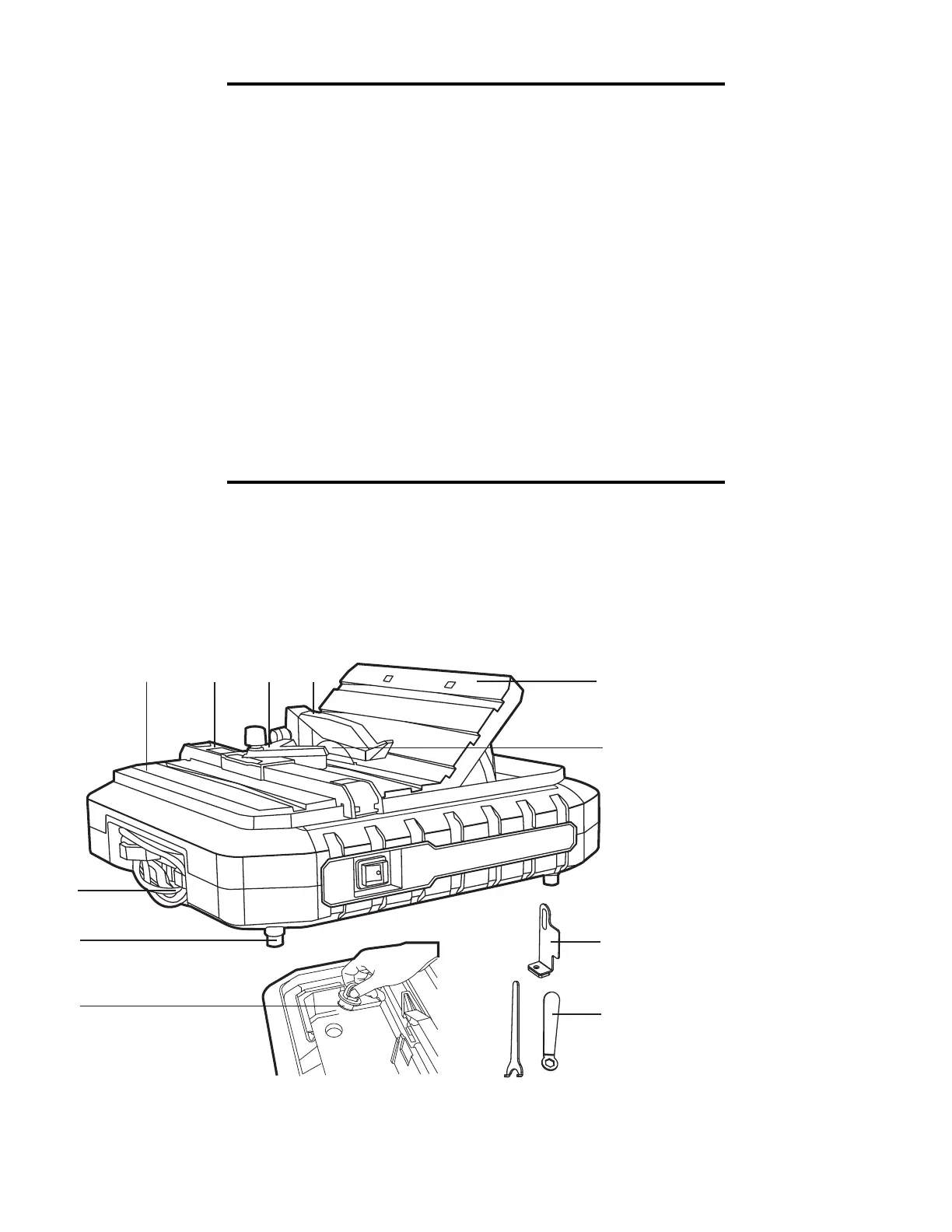

KNOW YOUR TILE SAW
Carefully unpack the tile saw and all its parts. Do not discard the packaging until the tile saw is completely assembled.
Check all parts and compare against the list below. If any part is damaged or missing, please contact our customer
service at (800) 232-1195, M-F 8-5 CST or email techsupport@wenproducts.com.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
CONTENTS
Tile Saw
Upper Blade Guard
Miter Cutting Guide
Parallel Fence
Metal Bracket
Diamond Disc
Wrenches (2)
Rubber Feet (4)
Water Reservoir Plug
45° Bevel Table
Power Cord with
Storage Compartment
10
11
To Next Page
