17
ASSEMBLY & ADJUSTMENTS
USING THE TRACK LOCK

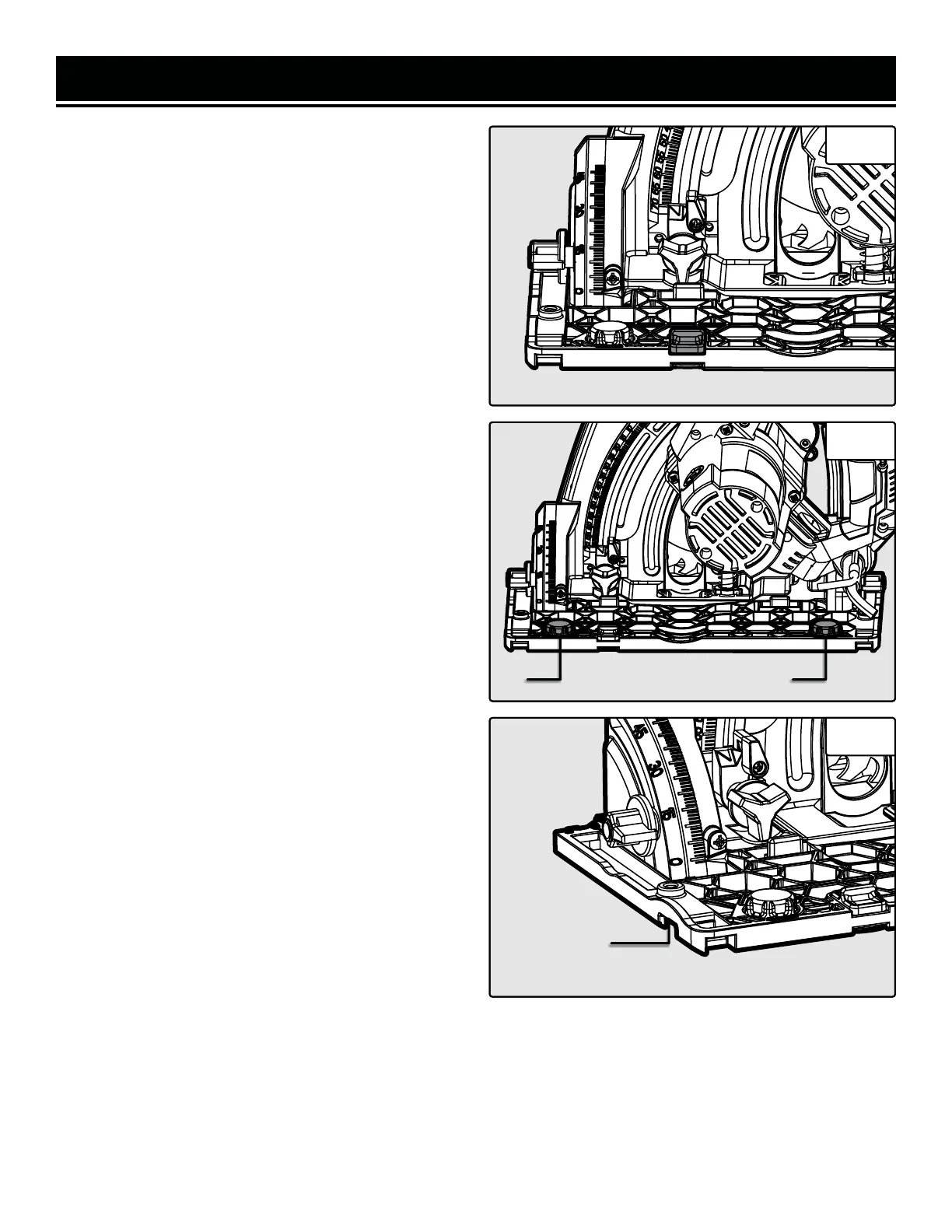

The track lock (Fig. 13) is an added measure to prevent
the track saw from separating from the track.
1. Push the track lock to the right to disengage, then set
the track saw onto the track.
2. Once the saw is sitting properly on the track, push the
track lock to the left to engage. This hooks a small plate
on the base of the saw under the lip of the track, prevent-
ing the saw from separating from the track.
USING THE FINE-ADJUSTMENT CAMS
(FIG. 14)
There are two fine-adjustment knobs on the base of the
saw to help eliminate play between the track guide rail
and the track slot on the base of the saw.
1. Loosen the fine-adjustment cam knobs (Fig. 14 - 1) by
turning them counter-clockwise until they stop.
2. Set the track saw on the track, ensuring that the track
rail enters the slot in the saw base (Fig. 15).
3. Turn the fine-adjustment cam knobs clockwise until
the play has been taken out of the track saw’s movement
in the track. Avoid overtightening so that the saw has
smooth movement.
4. Move the saw forward along the track, ensuring its
movement is smooth. Repeat step 3 if adjustments are
needed.
Fig. 13
Fig. 14
Fig. 15
TrackTrack
LockLock
Track
Lock
1
1
TrackTrack
SlotSlot
Track
Slot
