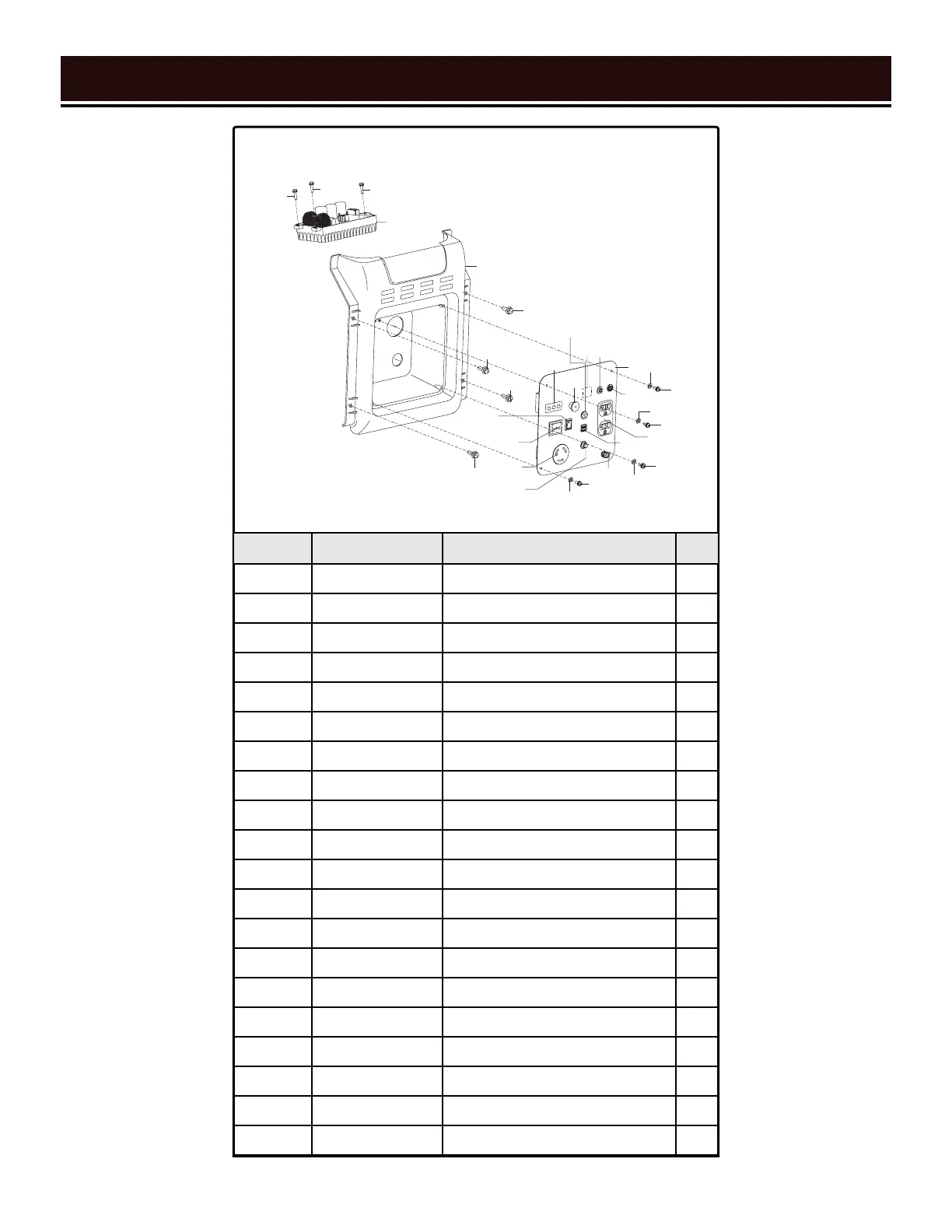

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
14-1 GN400i-1401 Control Panel Assembly 1
14-2 GN400i-1402 Control Panel Housing 1
14-3 GN400i-1403 Bolt, M6x14 4
14-4 GN400i-1404 Self-tapping Screw, ST4.2x16 4
14-5 GN400i-1405 Flat Washer, 4mm 4
14-6 GN400i-1406 Indicator Light Assembly 1
14-7 GN400i-1407 Choke Lever 1
14-8 GN400I-1408 Rectifier Bridge 1
14-9 56380I-1423 Parallel Port, Negative 1
14-10 56380I-1424 Parallel Port, Positive 1
14-11 GN400I-1411 Reset Button 1
14-12 56380I-1421 NEMA 5-20R Duplex Outlet 1
14-13 GN400I-1413 Grounding Nut 1
14-14 GN400I-1414 5V DC Outlet 1
14-15 GN400I-1415 AC Breaker, 20A 1
14-16 56380I-1422 Eco-Mode Switch 1
14-17 GN400I-1417 Power Switch 1
14-18 GN400I-1418 NEMA L5-30R Outlet 1
14-19 GN400I-1419 Inverter 1
14-20 GN400I-1420 Bolt, M6x20 3
ASSEMBLY 14 - CONTROL PANEL
1
2
3
3
3
3
4
4
4
4
5
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
20
