3232

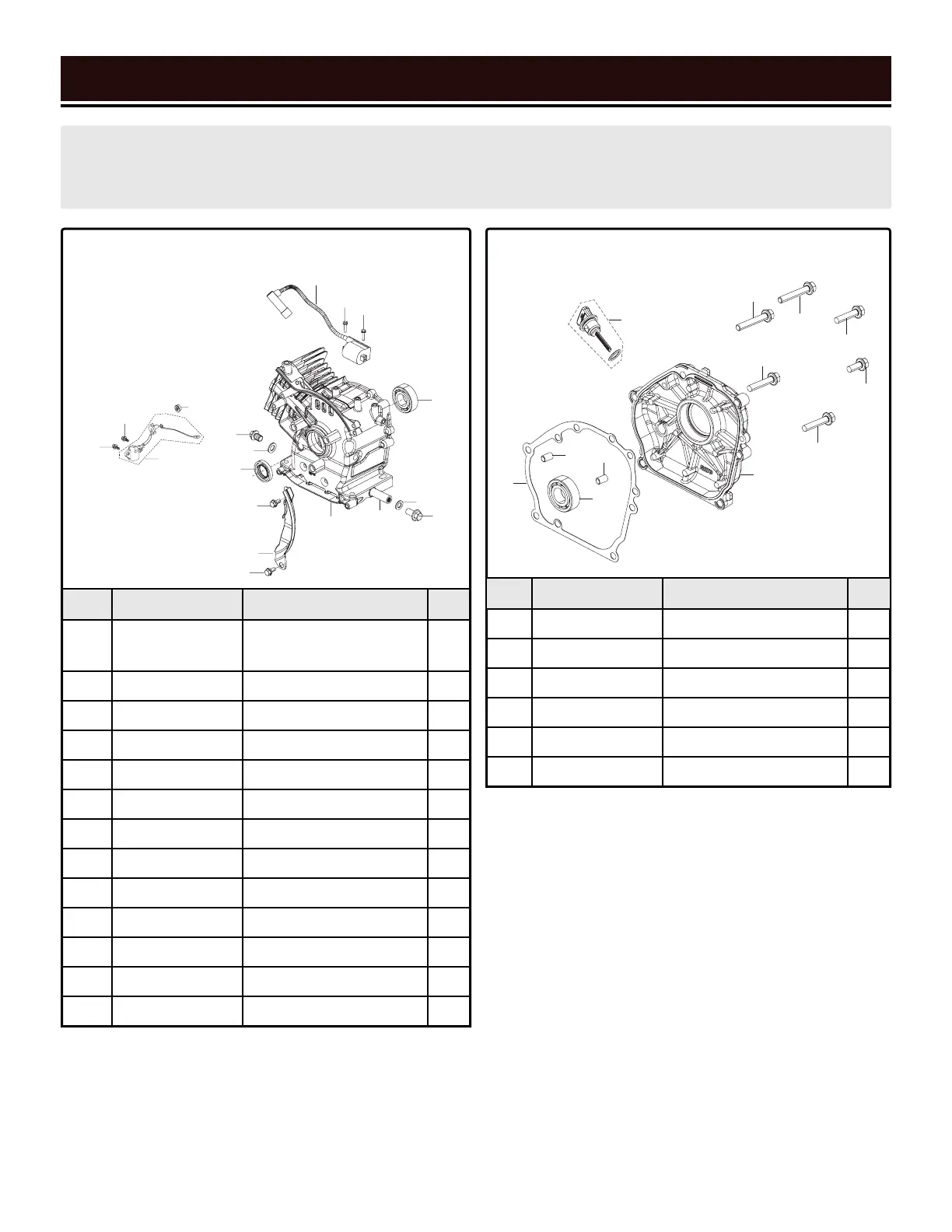

EXPLODED VIEW & PARTS LIST
NOTE: Replacement parts can be purchased from wenproducts.com, or by calling our customer service at
(800) 232-1195, M-F 8-5 CST. Parts and accessories that wear down over the course of normal use are not
covered by the two-year warranty.
No. Part No. Description Qty.
1-1 GN400i-0101
Crankcase
Subassembly
1
1-2 GN400i-0102 Oil Drain Bolt 2
1-3 GN400i-0103 Ball Bearing, 6205 1
1-4 56310i-0306 Oil Seal 1
1-5 56200-1202 Bolt, M6x12 2
1-6 GN400i-0106 Lower Shield 1
1-7 56310i-0211 Engine Oil Sensor 1
1-8 56200-0502 Bolt, M6x14 2
1-9 56380i-0102 Flat Washer 2
1-10 GN400i-0110 Ignition Coil 1
1-11 GN400i-0111 Bolt, M5x20 2
1-12 56310i-0210 Nut 1
1-13 GN400i-0113 Oil Drain Tube 1
ASSEMBLY 1 - CRANKCASE
No. Part No. Description Qty.
2-1 GN400i-0201 Cover, Crankcase 1
2-2 56310i-0307 Bolt, M8x32 6
2-3 GN400i-0203 Oil Dipstick Assembly 1
2-4 GN400i-0204 Ball Bearing 1
2-5 GN400i-0205 Pin 2
2-6 GN400i-0206 Crankcase Gasket 1
ASSEMBLY 2 - CRANKCASE COVER
1
2
2
3
4
5
5
6
7
8
8
9
9
10
11
11
12
13
6
5
5
1
2
2
2
2
2
2
3
4
