KNOW YOUR GENERATOR
KNOW YOUR GENERATOR
Refer to the following diagrams to become familiarized with all the parts and controls of your generator. The
components will be referred to later in the manual for assembly and operation instructions.

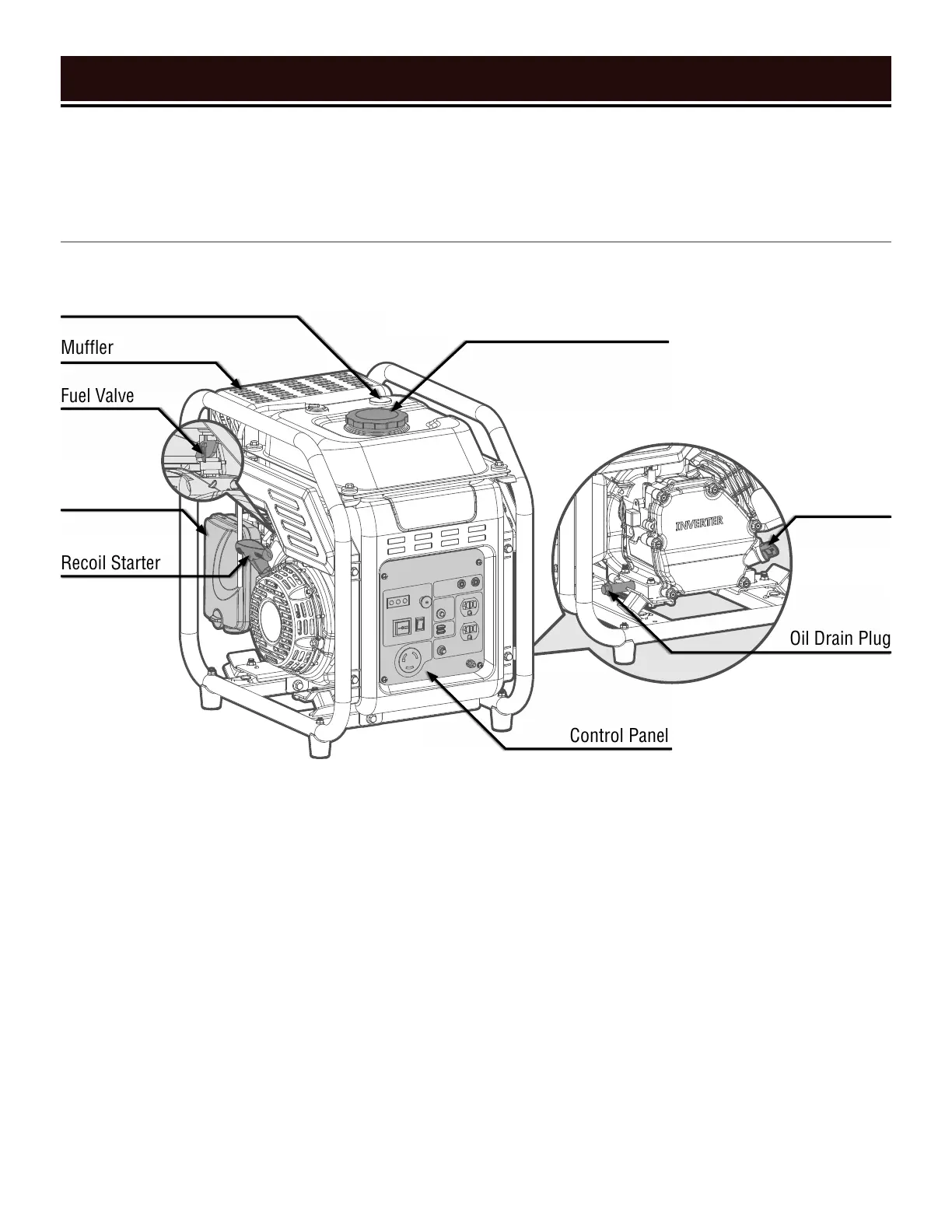

GENERATOR
Fuel Cap
Fuel Gauge
Muffler
Air Filter
Fuel Valve
Recoil Starter
Oil Fill
& Dipstick
Oil Drain Plug
Control Panel
• FUEL GAUGE
Indicates amount of fuel inside the fuel tank.
E indicates empty, F indicates full.
• MUFFLER
Dampens the noise level of the generator.
• FUEL VALVE
Allows fuel to enter the engine from the fuel
tank.
• AIR FILTER
A case with a sponge-like element that filters
the air entering the engine.
• RECOIL STARTER
Pull the cord to start the engine.
• FUEL CAP
Access to the fuel tank to add gasoline.
• OIL FILL AND DIPSTICK
Access to the oil tank to check oil levels and
add oil.
• OIL DRAIN PLUG
Drain oil, refer to maintenance on p. 23.
• CONTROL PANEL
Refer to the next page for more information.
