Wen GN400i

3736

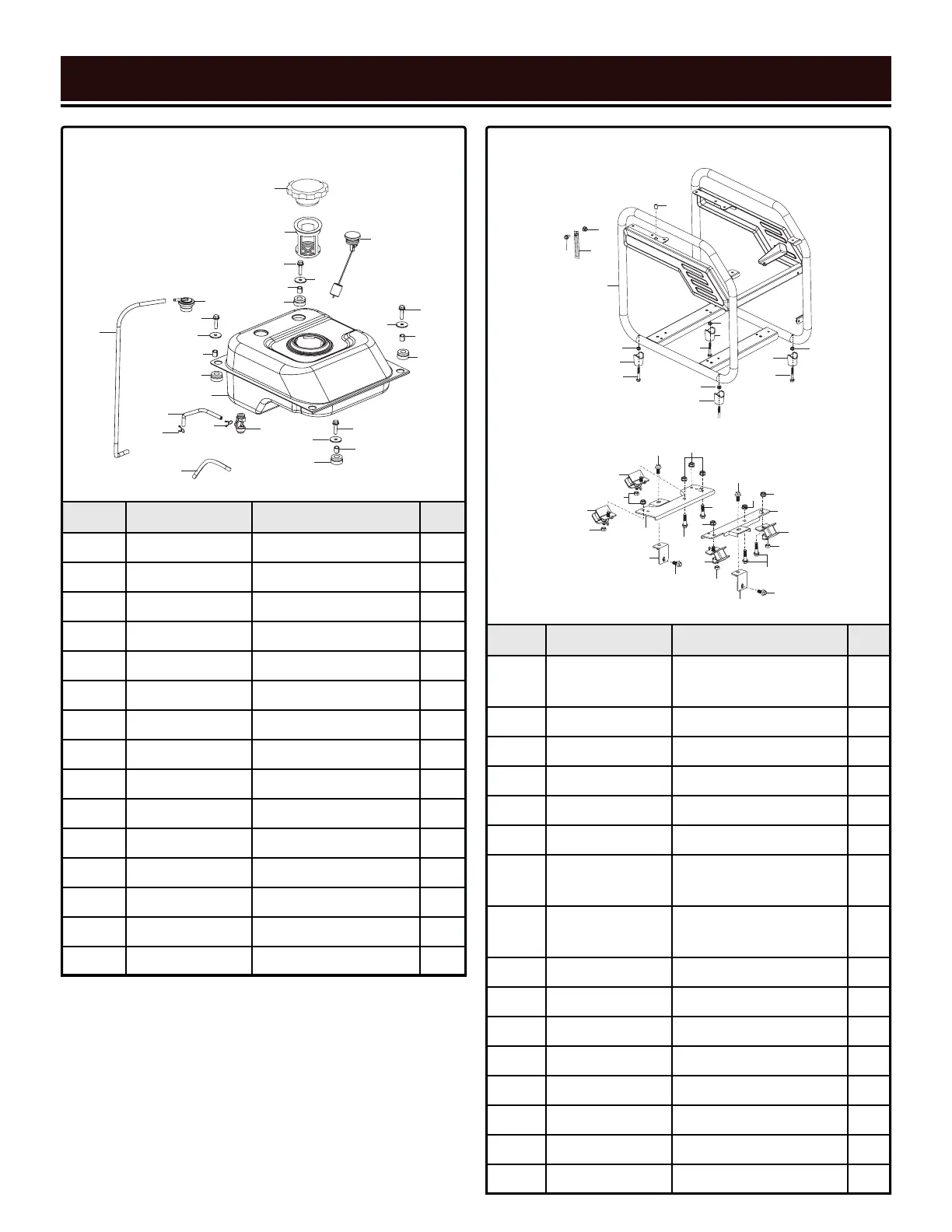

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
12-1 GN400i-1201 Fuel Tank 1
12-2 GN400i-1202 Fuel Tank Cap 1
12-3 GN400I-1203 Fuel Strainer 1
12-4 GN400I-1204 Fuel Gauge 1
12-5 GN400I-1205 Breather Valve 1
12-6 GN400I-1206 Breather Tube 1
12-7 GN400I-1207 Fuel Valve 1
12-8 GN400I-1208 Fuel Tube 1
12-9 GN400I-1209 Bolt, M6x25 4
12-10 GN400I-1210 Flat Washer 4
12-11 56380I-1207 Fuel Tank Damper 4
12-16 GN400I-1216 Rubber Cover 1
12-17 GN400I-1217 Fuel Tube Clamp A 1
12-18 GN400I-1218 Fuel Tube Clamp B 1
12-20 GN400I-1220 Bushing 4
ASSEMBLY 12 - FUEL TANK
No. Part No. Description Qty.
13-1 GN400i-1301
Engine Frame
Assembly
1
13-2 GN400i-1302 Foot 4
13-3 GN400i-1303 Nut, M6 4
13-4 GN400i-1304 Bolt, M6x35 4
13-5 GN400i-1305 Engine Plate, Rear 1
13-6 GN400i-1306 Engine Plate, Forward 1
13-7 56310i-1409
Engine Frame
Cushion, Left
3
13-8 56310I-1411
Engine Frame
Cushion, Right
1
13-9 56310i-1404 Nut, M8 11
13-10 GN400I-1310 Bolt, M8x35 4
13-11 GN400I-1311 Bolt, M6x8 1
13-12 GN400I-1312 Clip 1
13-13 GN400I-1313 Nut, M6 1
13-14 GN400I-1314 Bracket 2
13-15 GN400I-1315 Bolt, M8x16 4
13-16 GN400I-1316 Rubber Damper 1
ASSEMBLY 13 - FRAME
1
2
3
4
5
6
8
7
9
10
11
9
10
11
9
10
11
9
10
11
16
17
18
20
20
20
20
1
2
3
4
2
3
4
2
3
4
3
2
4
11
12
13
16
5
7
7
7
9
9
9
9
9
10
10
14
14
15
15
6
8
9
9
9
10
15
15
