Wen GN400i

3534
No. Part No. Description Qty.
9-1 56310i-1101 Flywheel Nut 1
9-2 56200-0706 Bolt, M6x10 3
9-3 GN400i-0903 Starter Pulley 1
9-4 56200-1202 Bolt, M6x12 4
9-5 56380i-0705 Starter Pulley Seat 1
9-6 GN400i-0906 Impeller 1
9-7 56310i-1103 Bolt, M6x60 3
9-8 GN400i-0908 Rotor 1
9-9 GN400i-0909 Stator 1
9-10 GN400i-0910 Trigger Assembly 1
9-11 56310i-1106 Bolt, M5x16 2

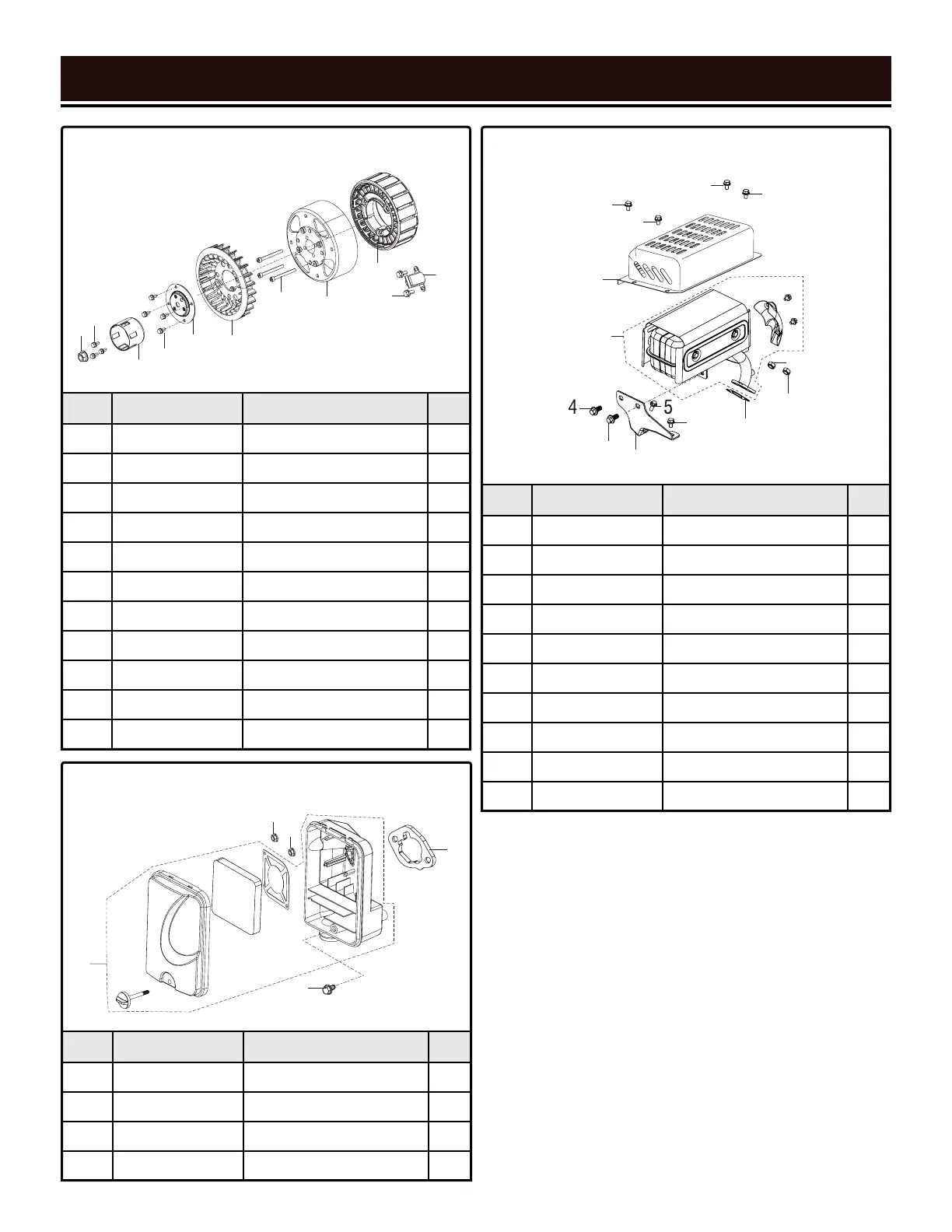

EXPLODED VIEW & PARTS LIST
ASSEMBLY 9 - FLYWHEEL
No. Part No. Description Qty.
11-1 GN400i-1101 Muffler Assembly 1
N.P. GN400i-1101.1 Spark Arrestor 1
11-2 GN400i-1102 Outer Muffler Cover 1
11-3 GN400i-1103 Muffler Bracket 1
11-4 GN400i-1104 Bolt, M8x16 2
11-5 56200-1202 Bolt, M6x12 1
11-6 GN400i-1106 Bolt, M8x16 1
11-7 GN400i-1107 Muffler Gasket 1
11-8 GN400i-1108 Nut, M8 2
11-9 56380i-0313 Bolt, M6x12 4
ASSEMBLY 11 - MUFFLER
No. Part No. Description Qty.
10-1 GN400i-1001 Air Filter Gasket 1
10-2 GN400i-1002 Air Filter Assembly 1
10-3 56200-0506 Nut, M6 2
10-4 56310I-1420 BOLT, M6X25 1
ASSEMBLY 10 - AIR FILTER
