Wen GN400i

3534
No. Part No. Description Qty.
6-1 GN400i-0601 Camshaft Assembly 1
6-2 GN400i-0602 Valve Lock Nut 2
6-3 GN400i-0603 Valve Adjustment Nut 2
6-4 GN400i-0604 Valve Rocker Arm 2
6-5 GN400i-0605 Rocker Shaft Bolt 2
6-6 GN400i-0606 Lifter Stopper Plate 1
6-7 GN400i-0607 Valve Lifter 2
6-8 56310i-0607 Valve Tappet 2
6-9 GN400i-0609
Valve Set (Intake &
Exhaust)
1
6-10 56310i-0603 Seal Guide 1
6-11 56310i-0604 Valve Spring 2
6-12 56380i-0605 Valve Spring Seat 2
6-13 56310i-0606 Valve Lock Clamp 4

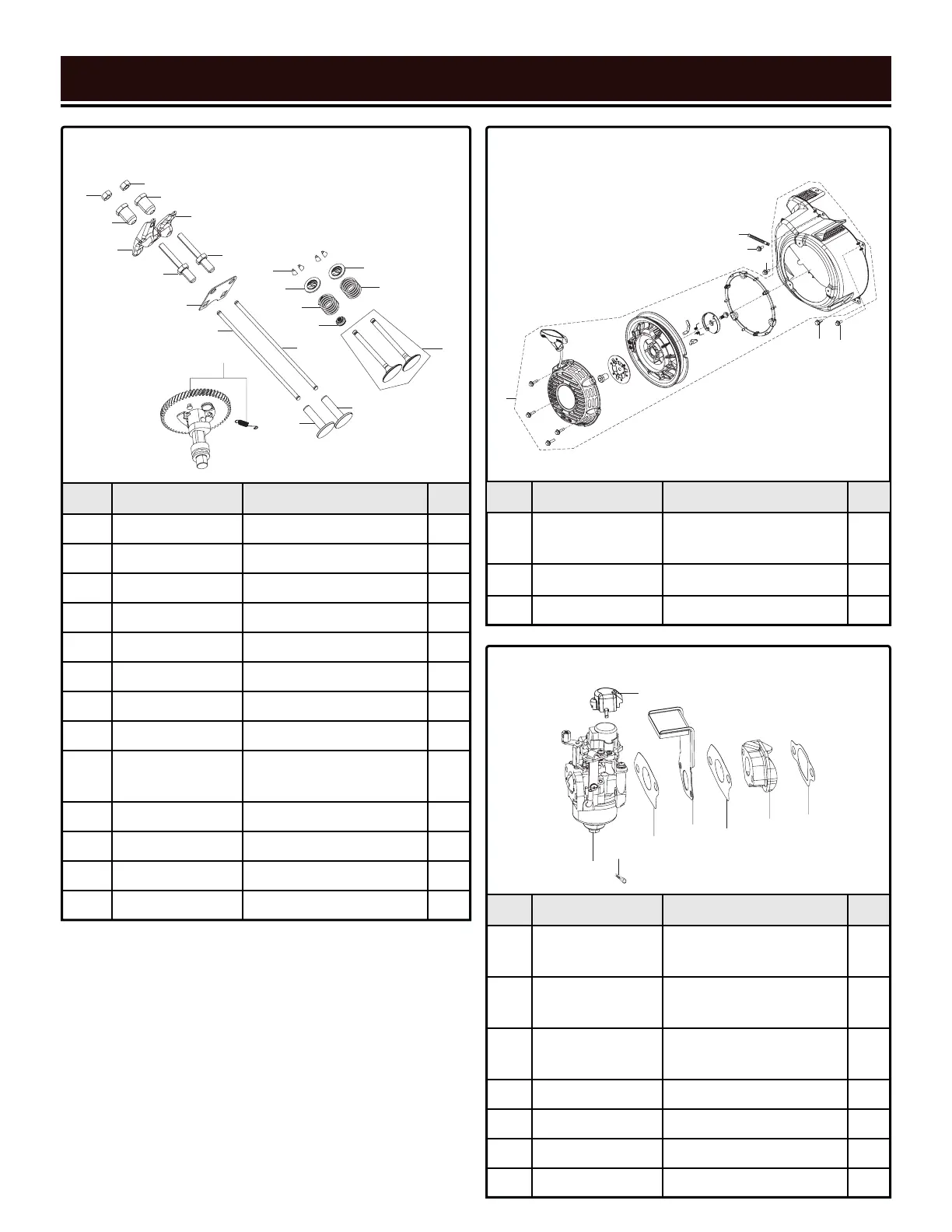

EXPLODED VIEW & PARTS LIST
ASSEMBLY 6 - VALVE & CAMSHAFT
No. Part No. Description Qty.
7-1 GN400i-0701
Recoil Starter
Assembly
1
7-2 56200-1202 Bolt, M6x12 4
7-3 GN400i-0703 Clip 1
ASSEMBLY 7 - RECOIL STARTER
No. Part No. Description Qty.
8-1 GN400i-0801
Carburetor Insulator
Gasket
1
8-2 GN400i-0802
Carburetor Insulator
Plate
1
8-3 GN400i-0803
Stepper Motor
Insulating Plate
1
8-4 56380i-0803 Carburetor Gasket 2
8-5 GN400i-0805 Carburetor Assembly 1
8-6 56200-0103 Cap 1
8-7 56200-1305 Fuel Strainer 1
ASSEMBLY 8 - CARBURETOR
