Wen TT0811 User Manual

20

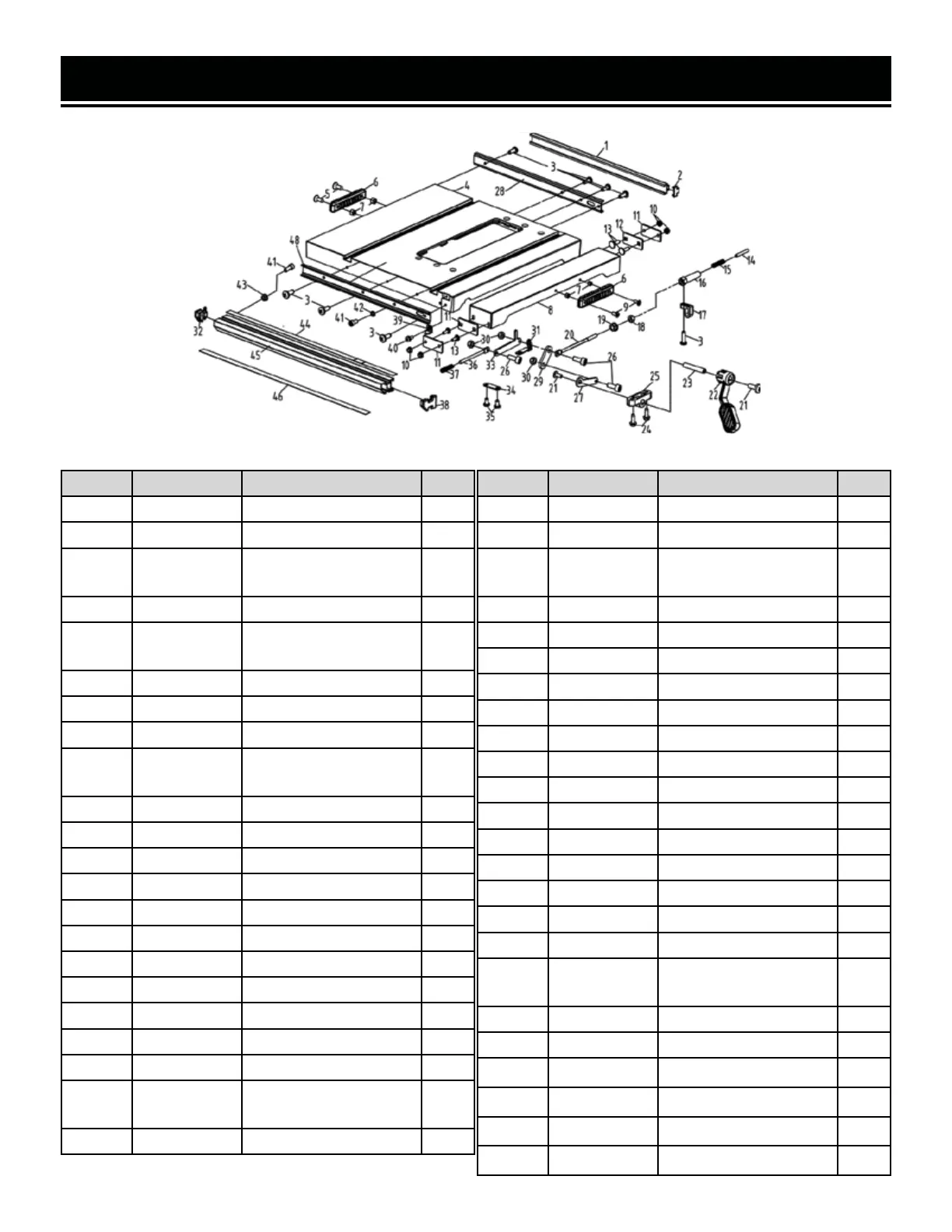

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
1-01 TT0811-101 Rear rail 1
1-02 TT0811-102 Rear rail end cap 1
1-03 TT0811-103
Cross head screws
M5x16
8
1-04 TT0811-104 Table 1
1-05 TT0811-105
Cross head screws
M4x12
2
1-06 TT0811-106 Carry handle 2
1-07 TT0811-107 Hex nut M4 4
1-08 TT0811-108 Extension table 1
1-09 TT0811-109
Cross head screws
M4x12
2
1-10 TT0811-110 Hex nut M6 4
1-11 TT0811-111 Lock palte A 2
1-12 TT0811-112 Lock palte B 2
1-13 TT0811-113 Carriage bolt M6x16 4
1-14 TT0811-114 Middle rod 1
1-15 TT0811-115 Spring 2
1-16 TT0811-116 Hex bolt 1
1-17 TT0811-117 Rod holder 1
1-18 TT0811-118 Hex nut M6 1
1-19 TT0811-119 Hex nut M6 1
1-20 TT0811-120 Rod-rear clamping 1
1-21 TT0811-121
Cross head screws
M5x10
4
1-22 TT0811-122 Locking handle 1
No. Part No. Description Qty.
1-23 TT0811-123 Pin 1
1-24 TT0811-124 Hex screws M6x18 2
1-25 TT0811-125
Extension Table
Locking Block
1
1-26 TT0811-126 Socket screws M5x14 3
1-27 TT0811-127 Small link 1
1-28 TT0811-128 Slide rail 2
1-29 TT0811-129 Connect block 1
1-30 TT0811-130 Lock nut M5 3
1-31 TT0811-131 Stop plate 1
1-32 TT0811-132 Front rail end cap 1
1-33 TT0811-133 Small link 1
1-34 TT0811-134 Press plate 1
1-35 TT0811-135 Screws M4x12 2
1-36 TT0811-136 Front clamping rod 1
1-37 TT0811-137 Spring 1
1-38 TT0811-138 End cap (right) 1
1-39 TT0811-139 indicator 1
1-40 TT0811-140
Cross head screws
M4x12
1
1-41 TT0811-141 Screws M5x12 2
1-42 TT0811-142 Spring washer 1
1-43 TT0811-143 Hex nut M5 1
1-44 TT0811-144 Scale 1
1-45 TT0811-145 Front rail end cap 1
1-46 TT0811-146 Scale 1
WORK TABLE ASSEMBLY
