Wen TT0811 User Manual

21

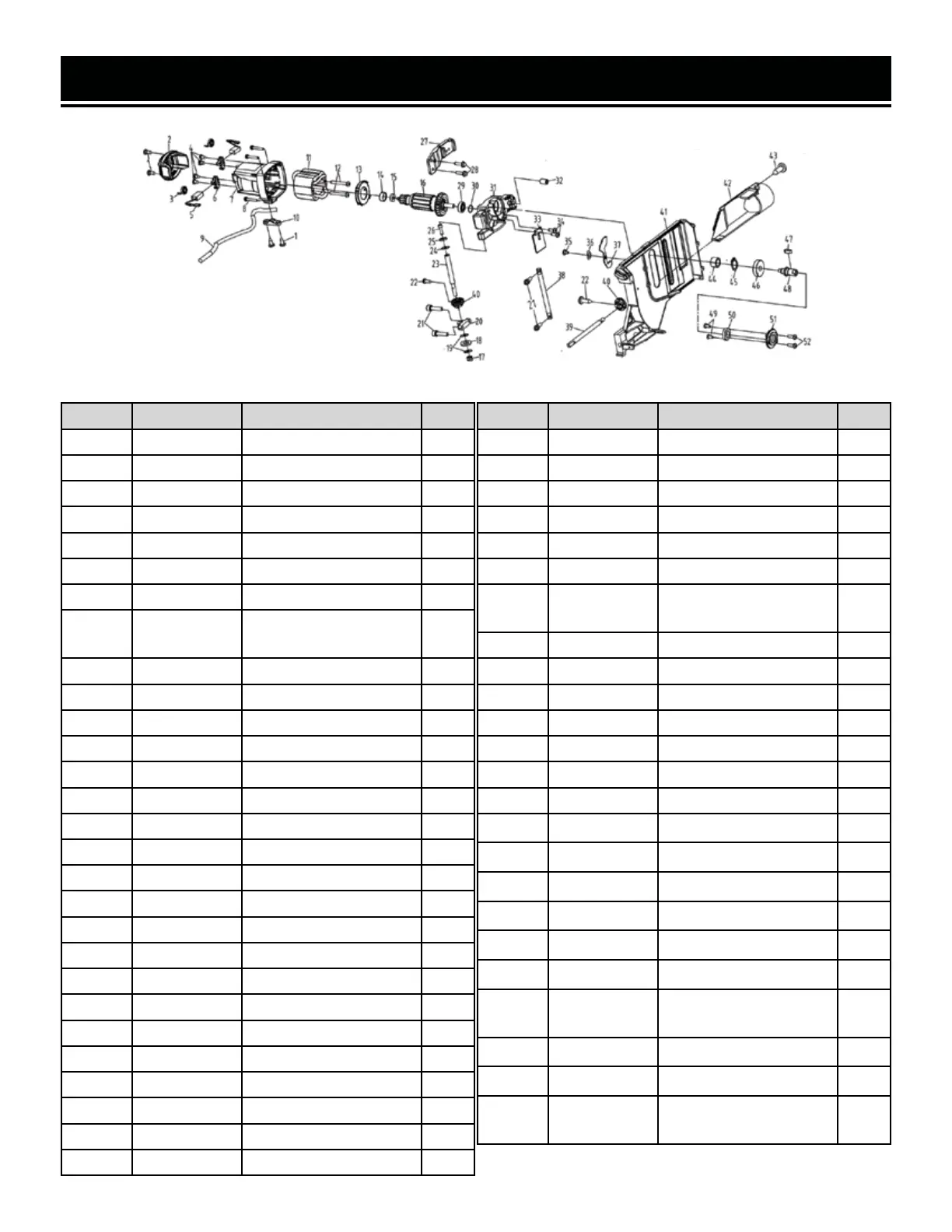

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
2-01 TT0811-201 Self-tapping screws 3
2-02 TT0811-202 Motor end cap 1
2-03 TT0811-203 Spring 2
2-04 TT0811-204 Self-tapping screws 4
2-05 TT0811-205 Carbor brush 2
2-06 TT0811-206 Carbor brush holder 2
2-07 TT0811-207 Motor house 1
2-08 TT0811-208
Cross head screws
M5x35
4
2-09 TT0811-209 Motor connect wire 1
2-10 TT0811-210 Cord clip 1
2-11 TT0811-211 Stator 1
2-12 TT0811-212 Self -tapping screws 1
2-13 TT0811-213 Baffle 1
2-14 TT0811-214 Bearing sleeve 1
2-15 TT0811-215 Bearing 1
2-16 TT0811-216 Armture 1
2-17 TT0811-217 Lock nut M8 1
2-18 TT0811-218 Washer (Rubber) 1
2-19 TT0811-219 Washer 2
2-20 TT0811-220 Threaded rod holder 1
2-21 TT0811-221 Socket screws M5x20 4
2-22 TT0811-222 Self-tapping screws 2
2-23 TT0811-223 Threaded rod 1
2-24 TT0811-224 Washer 1
2-25 TT0811-225 Spring washer 1
2-26 TT0811-226 Socket screws M5x14 1
2-27 TT0811-227 Riving knife bracket 1
2-28 TT0811-228 Hex screws M6x18 2
No. Part No. Description Qty.
2-29 TT0811-229 Bearing 1
2-30 TT0811-230 O-ring 1
2-31 TT0811-231 Gear box 1
2-32 TT0811-232 Set screws M6x10 1
2-33 TT0811-233 Small blade guard 1
2-34 TT0811-234 Screws M4x12 2
2-35 TT0811-235
Shoulder screws
M5x10
1
2-36 TT0811-236 Wave washer 1
2-37 TT0811-237 Blade guard 1
2-38 TT0811-238 Rod 1
2-39 TT0811-239 Bracket - driving rod 1
2-40 TT0811-240 Gear 2
2-41 TT0811-241 Motor bracket 1
2-42 TT0811-242 Dust collecting tube 1
2-43 TT0811-243 Screws M6x16 1
2-44 TT0811-244 Needle bearing 1
2-45 TT0811-245 C-ring 1
2-46 TT0811-246 Gear 1
2-47 TT0811-247 Flat key 1
2-48 TT0811-248 Arbor 1
2-49 TT0811-249
Cross head screws
M5x10
2
2-50 TT0811-250 Bearing 1
2-51 TT0811-251 Gear box cover 1
2-52 TT0811-252
Cross head screws
M5x16
2
MOTOR ASSEMBLY
