Wen TT0811 User Manual

22

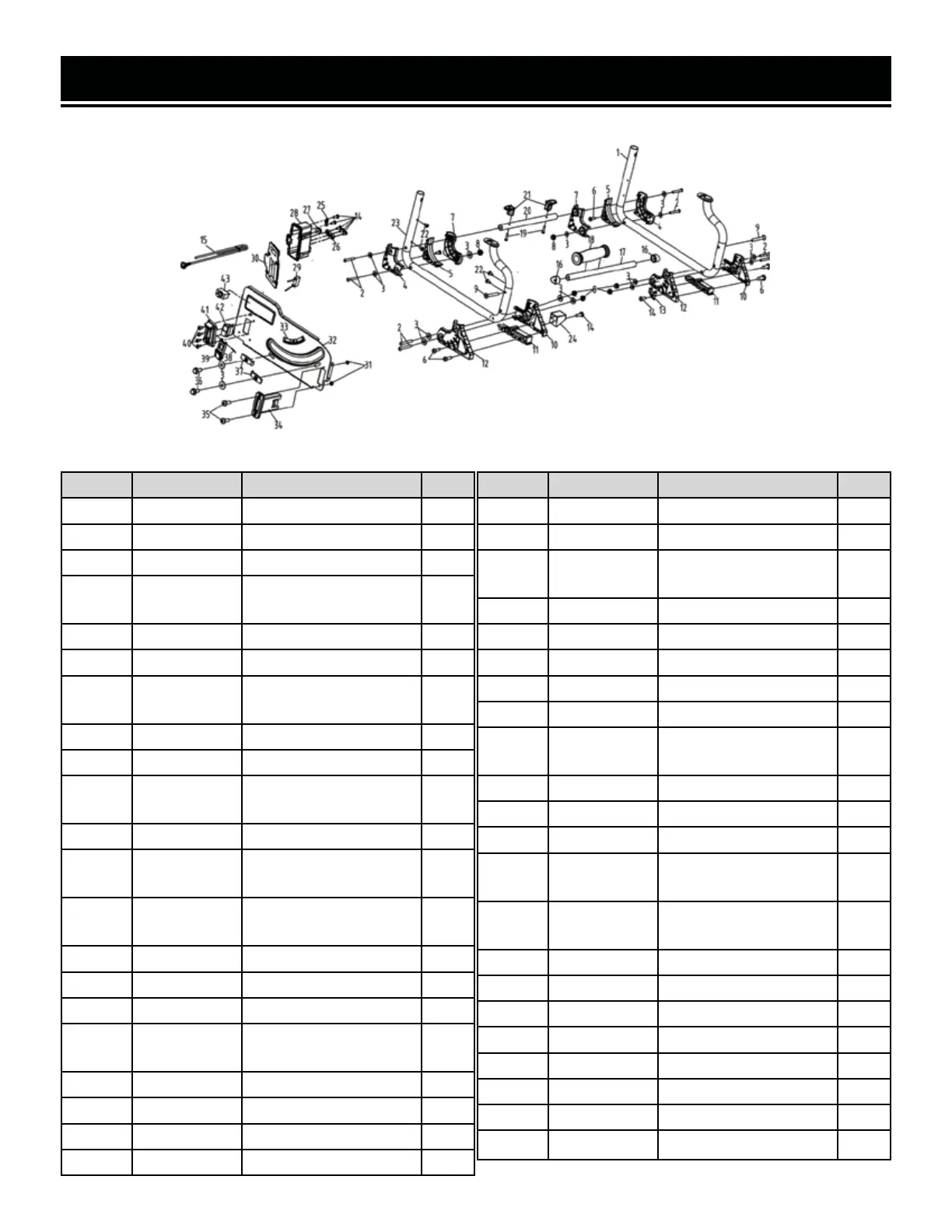

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
3-01 TT0811-301 Rear base 1
3-02 TT0811-302 Sockets M6x45 8
3-03 TT0811-303 Washer 16
3-04 TT0811-304
Left base foot Cover
(Rear)
2
3-05 TT0811-305 Left base foot 2
3-06 TT0811-306 Self-tapping screws 6
3-07 TT0811-307
Left base foot cover
(Front)
2
3-08 TT0811-308 Hex nut M6 6
3-09 TT0811-309 Screws 2
3-10 TT0811-310
Right base foot cover
(Front)
2
3-11 TT0811-311 Right base foot 2
3-12 TT0811-312
Right base foot cover
(Rear)
2
3-13 TT0811-313
Miter gauge holder
(Rear)
1
3-14 TT0811-314 Self-tapping screws 7
3-15 TT0811-315 Power cord 1
3-16 TT0811-316 Connecting rod bush 2
3-17 TT0811-317
Connecting rod
(Right)
1
3-18 TT0811-318 Carry handle 1
3-19 TT0811-319 Self-tapping screws 2
3-20 TT0811-320 Connecting Rod (Left) 1
3-21 TT0811-321 Cord storage M4x10 2
No. Part No. Description Qty.
3-22 TT0811-322 Cross head screws 4
3-23 TT0811-323 Front base 1
3-24 TT0811-324
Miter gauge holder
(Front)
1
3-25 TT0811-325 Cord clip 1
3-26 TT0811-326 Cord clip 1
3-27 TT0811-327 O-Ring 1
3-28 TT0811-328 Switch box 1
3-29 TT0811-329 Capacitor 1
3-30 TT0811-330
Switch middle palte
M5
1
3-31 TT0811-331 Hex nut 2
3-32 TT0811-332 Base 1
3-33 TT0811-333 Bevel sacle 1
3-34 TT0811-334
Push stick holder
M5x16
1
3-35 TT0811-335
Cross head screws
M6x12
2
3-36 TT0811-336 Hex screws 2
3-37 TT0811-337 Angle adjust block 2
3-38 TT0811-338 Pin 1
3-39 TT0811-339 Switch trigger 1
3-40 TT0811-340 Self-tapping screws 4
3-41 TT0811-341 Fixed Switch 1
3-42 TT0811-342 Switch 1
3-43 TT0811-343 Over-load switch 1
BASE ASSEMBLY
