Wen TT0811 User Manual

23

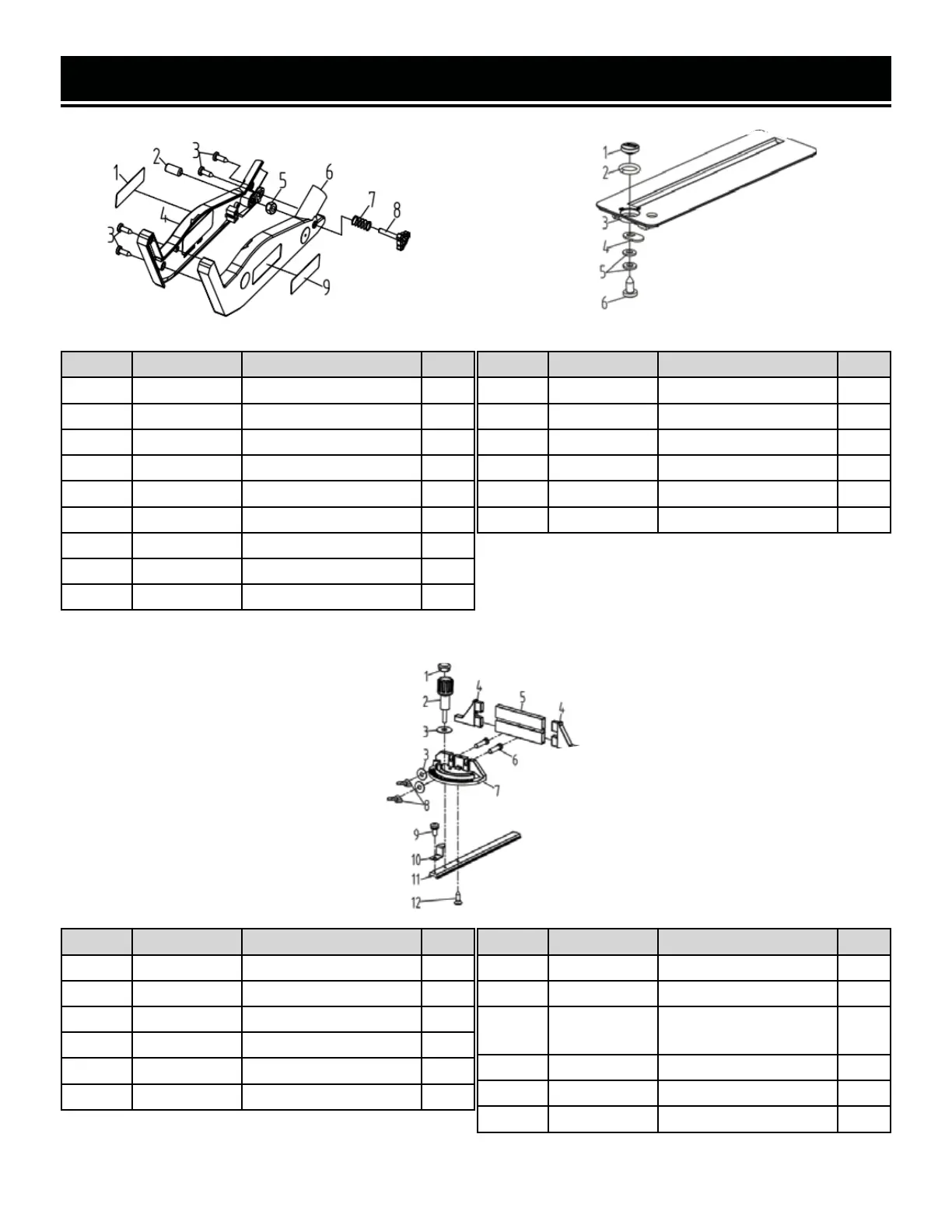

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
4-01 TT0811-401 Label (left) 1
4-02 TT0811-402 Set screws M6x6 1
4-03 TT0811-403 Self-tapping screws 4
4-04 TT0811-404 Left blade guard 1
4-05 TT0811-405 Lock nut M6 1
4-06 TT0811-406 Right blade guard 1
4-07 TT0811-407 Spring 1
4-08 TT0811-408 Knob M6x25 1
4-09 TT0811-409 Label (right) 1
No. Part No. Description Qty.
5-01 TT0811-501 Lock table insert 1
5-02 TT0811-502 O-ring 1
5-03 TT0811-503 Table insert 1
5-04 TT0811-504 Seam Plate Lock 1
5-05 TT0811-505 Washer 2
5-06 TT0811-506 Self-tapping screws 1
No. Part No. Description Qty.
6-01 TT0811-601 End cap 1
6-02 TT0811-602 Knob 1
6-03 TT0811-603 Washer 3
6-04 TT0811-604 End cap 2
6-05 TT0811-605 Cross stop fence 1
6-06 TT0811-606 Carriage bolt M6x25 2
No. Part No. Description Qty.
6-07 TT0811-607 Miter gauge 1
6-08 TT0811-608 Wing nut M6 2
6-09 TT0811-609
Cross head screws
M4x10
1
6-10 TT0811-610 Miter gauge indicator 1
6-11 TT0811-611 Rod - miter gauge 1
6-12 TT0811-612 Self-tapping screws 1
BLADE GUARD TABLE INSERT
MITER GAUGE ASSEMBLY
