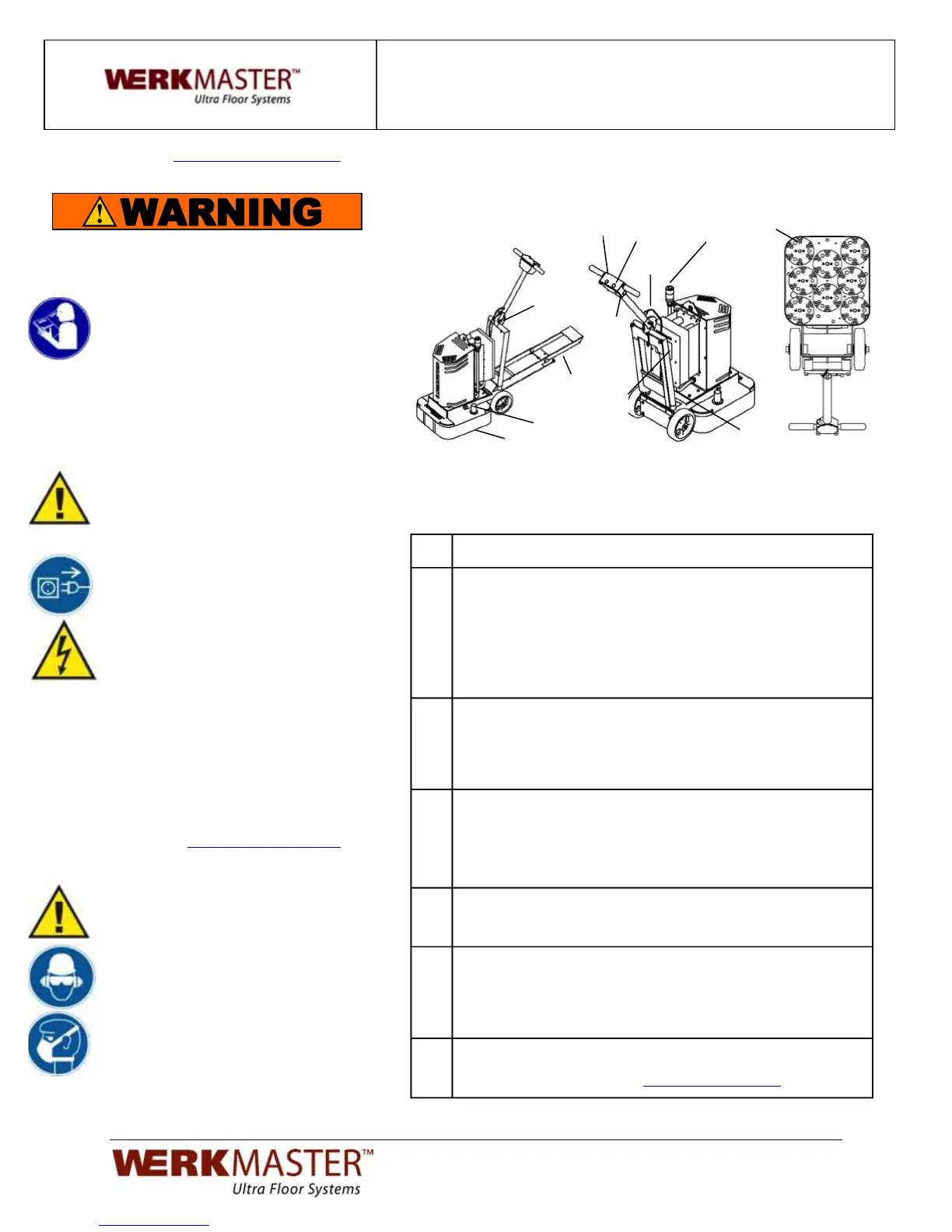

OPERATOR’S!MANUAL!!
+,-.!Y?!!
!
!
!
!
!
! ! ! ! ! !
!
!
!
!
!
% % % % % %
SAFETY TOPICS:
Read the Operator’s Manual or the
Operation and Safety Guide and all
safety precautions before attempting to
operate WerkMaster machines. Failure
to follow the safety precautions could
result in severe personal injury or
death.
SAFETY CHECKLIST:
WARNING: ALWAYS turn off the
equipment and unplug the power cord
when changing discs/tooling, before
servicing, and when not in use.
1. Before connecting the equipment to a
power source make sure that it is the
correct voltage.
2. Ensure all cords on the equipment
are securely fastened and in good
repair.
3. Ensure all extension cords and power
outlets are rated for the intended use,
are in good repair, and are properly
grounded (3 prong configuration).
4. Never operate the equipment under
the influence of drugs or alcohol or
when extremely fatigued.
5. If the equipment doesn’t start or stops
unexpectedly, first check power
source and all electrical connections
then go to
or
call Technical Support:
WARNING: Never turn on the
equipment while it is tilted back.
Discs/tooling attached to the bottom
could eject and become a lethal
projectile.
Wear appropriate personal safety
equipment such as hearing and eye
protection and a dust mask or respirator.
Operation and Safety Guide
COLOSSOS XT
Vendor Website: www.werkmaster.com Technical Support: 866.373.9375
The COLOSSOS XT
TM
can be used to grind and/or polish
various floor surfaces.
Fig 1 Fig 2 Fig 3
Tool Operation:
Unplug the power cord from the twist lock plug (A). Ensure the
handle is in its full upright position (Fig.1). Tilt the equipment back
(Fig.3) by releasing and unfolding the step down plate (J). While
stepping on the step down plate pull down on the handle. Choose
the appropriate tooling holder attachment – 8” magnetic Plug ‘N Go
plate (B) for Metal bond tools or 8” Foam/Velcro Adapter plate for
polishing resins. Insert the 2 shear pins into the rubber grommets.
Then attach the corresponding tooling to the plates.
Slowly lift the equipment back to the upright position using the step
down plate (J) to prevent the COLOSSOS XT from hitting the floor.
Loosen and lower the dust skirts (C) so that it is just above the
working surface. Ensure that the 8 pin connector cord (K) is
securely fastened to the mating receptacle (L).
Adjust the handle to a comfortable operating position by pulling out
and re-inserting the release pin at the swivel joint (E). Connect the
vacuum hose(s) to the vacuum pipes (G) located on either side.
Plug the power cord into the twist lock plug (A). The display/keypad
(H) will light up. Turn the speed control knob (D) till the
display/keypad reads 450 RPM.
Grasp the handle bars. To start the equipment press the green
start button (I). Adjust the speed (D) as required. To stop the
equipment press the red stop button (F)
When the equipment is in operation it should move smoothly and
without chattering. If chattering or excessive vibration occurs stop
the machine, unplug the power cord, tilt the machine back and
verify that all the Plug ‘N Go/Adaptor plates are installed correctly
and the tooling is seated properly.
Move the equipment continuously in any direction using a circular
motion. Be sure keep it moving at all times to prevent unwanted
marks. View training videos at
