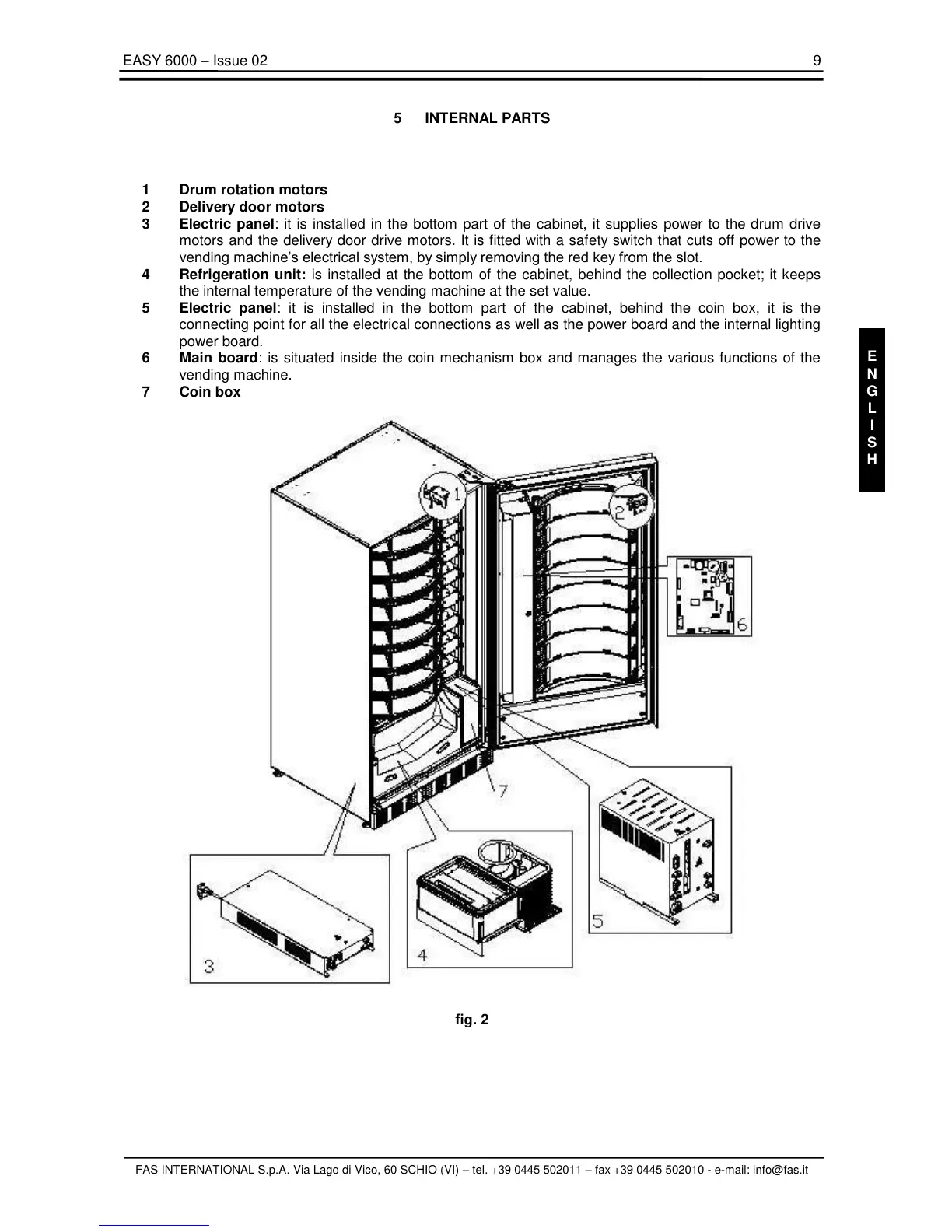

5 INTERNAL PARTS
1
Drum rotation motors
2
Delivery door motors
3
Electric panel: it is installed in the bottom part of the cabinet, it supplies power to the drum drive
motors and the delivery door drive motors. It is fitted with a safety switch that cuts off power to the
vending machine‟s electrical system, by simply removing the red key from the slot.
4
Refrigeration unit: is installed at the bottom of the cabinet, behind the collection pocket; it keeps
the internal temperature of the vending machine at the set value.
5
Electric panel: it is installed in the bottom part of the cabinet, behind the coin box, it is the
connecting point for all the electrical connections as well as the power board and the internal lighting
power board.
6
Main board: is situated inside the coin mechanism box and manages the various functions of the
vending machine.
7
Coin box
fig. 2
