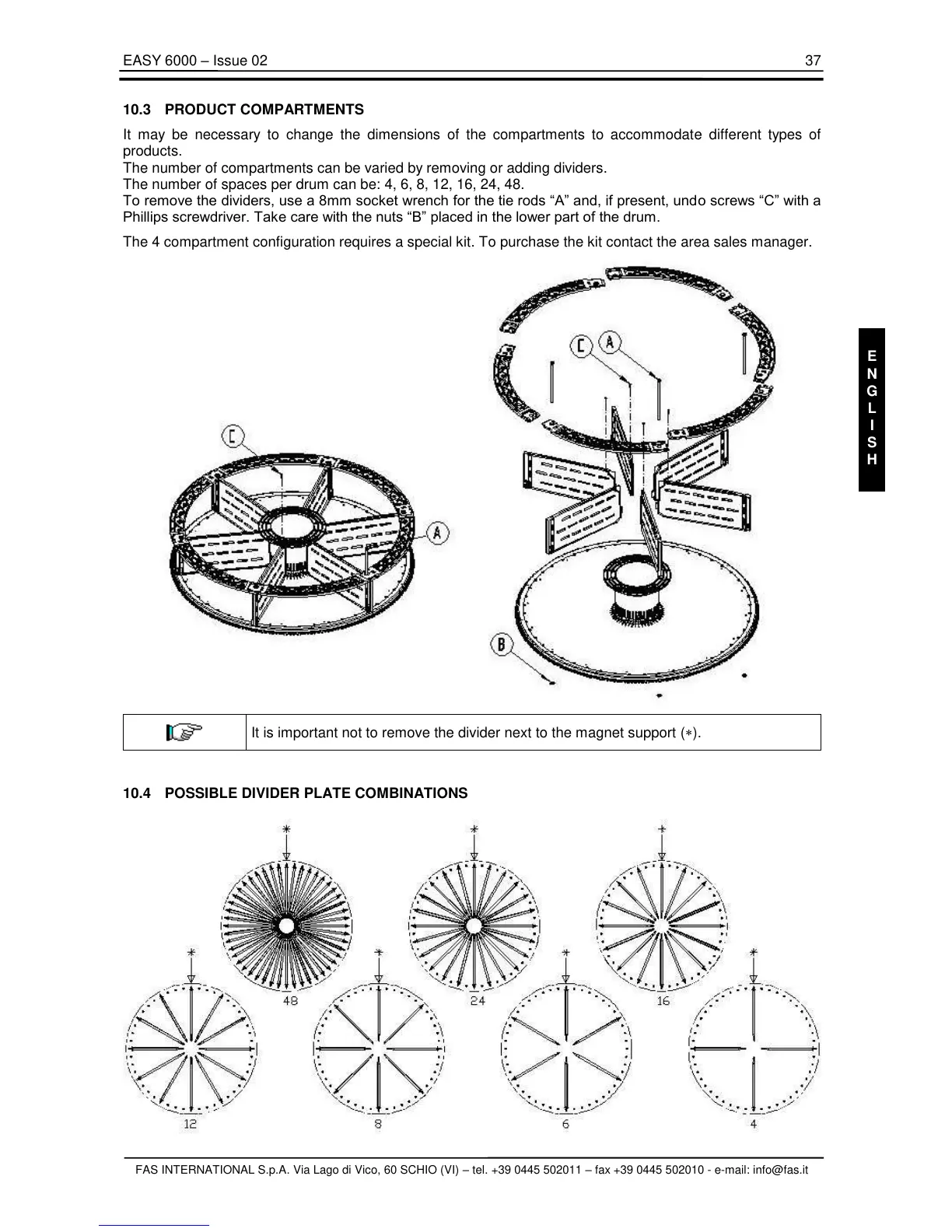

10.3 PRODUCT COMPARTMENTS
It may be necessary to change the dimensions of the compartments to accommodate different types of
products.
The number of compartments can be varied by removing or adding dividers.
The number of spaces per drum can be: 4, 6, 8, 12, 16, 24, 48.
To remove the dividers, use a 8mm socket wrench for the tie rods “A” and, if present, undo screws “C” with a
Phillips screwdriver. Take care with the nuts “B” placed in the lower part of the drum.
The 4 compartment configuration requires a special kit. To purchase the kit contact the area sales manager.
It is important not to remove the divider next to the magnet support ().
10.4 POSSIBLE DIVIDER PLATE COMBINATIONS
